China Hot Ash Vacuum Cleaner Ash Collector

China Hot Ash Vacuum Cleaner Ash Collector thumbnail-1
China Hot Ash Vacuum Cleaner Ash Collector thumbnail-2
China Hot Ash Vacuum Cleaner Ash Collector thumbnail-3
China Hot Ash Vacuum Cleaner Ash Collector thumbnail-4
China Hot Ash Vacuum Cleaner Ash Collector thumbnail-5
China Hot Ash Vacuum Cleaner Ash Collector thumbnail-6
China Hot Ash Vacuum Cleaner Ash Collector photo-1

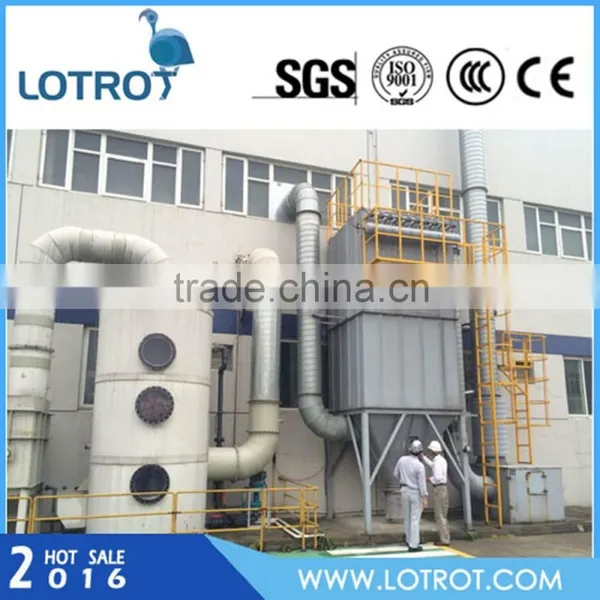

China Hot Ash Vacuum Cleaner Ash Collector photo-2

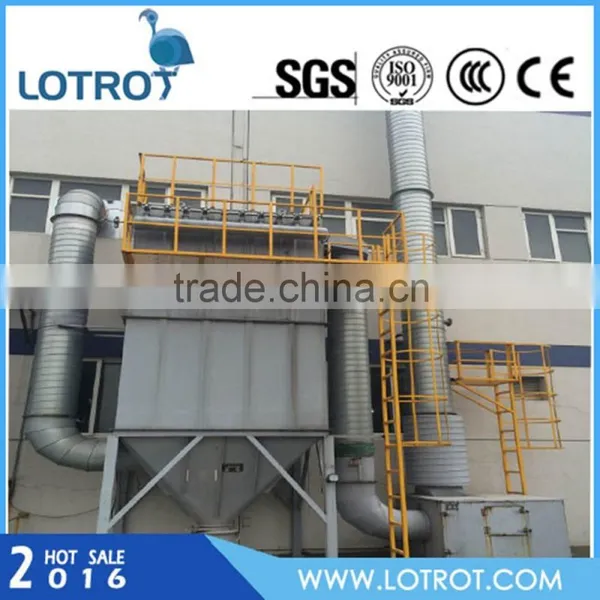

China Hot Ash Vacuum Cleaner Ash Collector photo-3

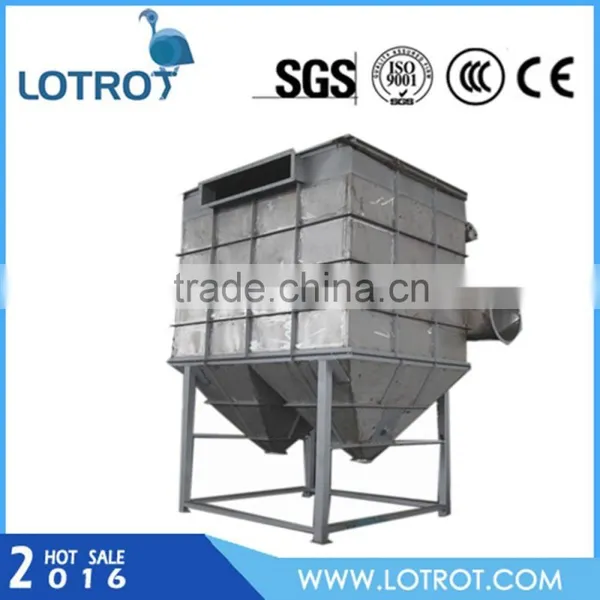

China Hot Ash Vacuum Cleaner Ash Collector photo-4

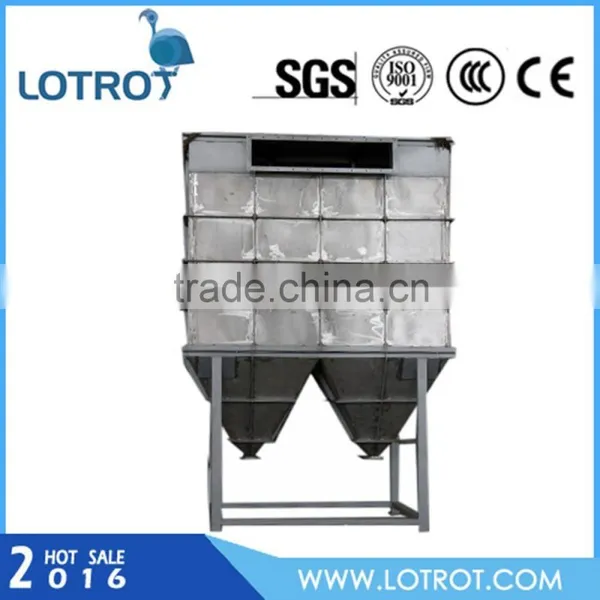

China Hot Ash Vacuum Cleaner Ash Collector photo-5

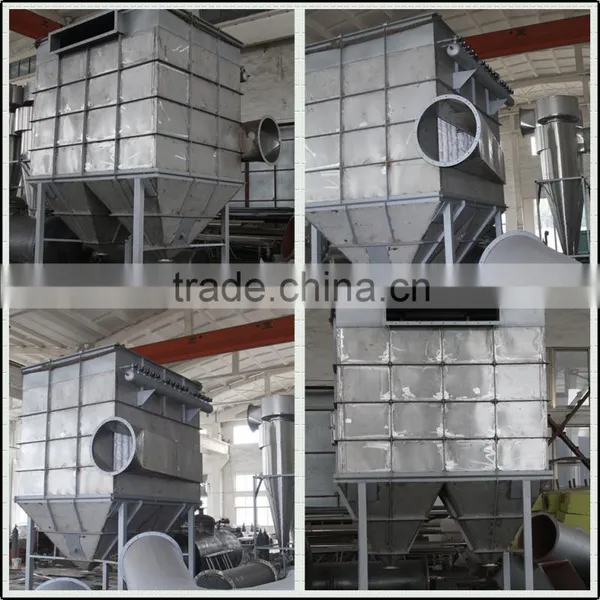

China Hot Ash Vacuum Cleaner Ash Collector photo-6
US$ 2000.00 - 5000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
LOTROT
Contact Supplier Request Quote Chat Now
Jiangyin Lotrot International Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI for China Hot Ash Vacuum Cleaner Ash Collector
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name LOTROT
Model Number MC36
Feature Critical Cleaning / Residue Free, Non-Toxic
Fuel Electric
Certification CE, UL, Other
Use Other
Cleaning Process Vapor Cleaning
Cleaning Type Other
Industry Used Other
Material Other, Metal / Coil, Stainless Steel
Voltage 380V
Power(W) 2.2kw
Dimension(L*W*H) 1000*1450*3700
After-sales Service Provided Engineers available to service machinery overseas


Quick Details of  China Hot Ash Vacuum Cleaner Ash Collector

Brand Name

Lotrot

Model Number

MC36

Dimension(L*W*H)

1000×1450×3700

General Description of  China Hot Ash Vacuum Cleaner Ash Collector

The pulse bag filter is a kind of dry dust removal device,also known as the filter separator, it is using fiber knitting bag filter element to capture the dust in the gas solid particles of dust removal device.

China Hot Ash Vacuum Cleaner Ash Collector

Work Principle of  China Hot Ash Vacuum Cleaner Ash Collector

Dusty gas go from hopper (or the bottom spacious open flange) into the filter chamber,
the coarse particles directly drop in the hopper or bin ash,dust gas is filtered through the filter bag,and the dust is retained on the surface of the filter bag,the clean gas go through the mouth of the bag to clean gas chamber,and discharge into environment,as the dust of filter bag increase continously,leading to equipment resistance going up to set value,time relay (or differential pressure controller) output signal, programmer begins to work,open pulse valve one by one, the compressed air through the nozzle blow  the filter bag , so the bag sudden expansion, under the effect of the inverted draught,the dust attached to the surface of the filter bag quickly falls from the bag  and then drop in hopper (or ash bin),the dust discharge go through the cinder valve, the dust collector return to normal operation after the end of blowing  all the filter bag

 Features of China Hot Ash Vacuum Cleaner Ash Collector

1,Using the technology of pulse spraying dust extraction,overcoming the shortcomings of the conventional pulse dust catcher and sectional reverse-blow filter,the ash is removed completely only by blowing one time,it has good cleaning ability, high efficiency of dust collection , low emission concentration, small leakage rate, lower energy consumption and steel consumption,etc;
2,Maintenance of the bags could be kept in the system under normal operating conditions, there is the elastic expansion ring on the mouth of the filter bag ,so the sealed performance is good, strong and reliable.Bag filter bag keel using polygon, reducing the friction and keel, it prolongs the life span of the bag and is convenient for unloading bags.
3,Using the method of the upper extraction bag,and drawout the skeleton when changing the bags,removed from the manhole, improved the operating conditions for changing bags.;
4,Adopting the design of gas tightness, having reliable sealing and using good sealing material,production process with kerosene leakage, leakage rate is very low.;
5,Inlet and outlet air duct is compact, small flow resistance.

Specification of  China Hot Ash Vacuum Cleaner Ash Collector

SpecificationType

MC24

MC36

MC48

MC60

MC72

MC84

MC96

MC120

Filtering Area(m2)

18

27

36

45

54

63

72

90

Quantity of Filtering Bag (piece)

24

36

48

60

72

84

96

120

Filtration Velocity (L/m2.s)

20-40

20-40

20-40

20-40

20-40

20-40

20-40

20-40

Filtering Air volume(m3/h)

1300-2600

1950-3900

2600-5200

3240-6480

3900-7800

4550-9100

5200-10500

6500-13000

Max. Overall dimension

L

1000

1400

1800

2200

2600

3000

3560

4360

W×H

1450×3700

1450×3850

1450×4100

Dust remover

The number of Pulse valve

4

6

8

10

12

14

16

20

Compressed air consumption m3

0.07
-0.30

0.11
-0.40

0.15
-0.50

0.18
-0.60

0.22
-0.60

0.25
-0.90

0.29
-0.90

0.37
-0.90

Compressed air pressure
(kg/cm2)

5-7

Application of  China Hot Ash Vacuum Cleaner Ash Collector

This device is widely used for the ventilation, dust removing and powder restoration in the grain, food, feed, metallurgical, chemical, building material, medical and other industries.

Company Information

Jiangyin Lotrot Commerce Co., LTD is the subsidiary company of Jiangyin Hengtai Drying Equipment Co., LTD,which is specialized in producing drying equipment.
 The major products is including mechanical equipment(boiling drying, fluid bed dryer, drying oven, wet scrubber,etc),chemical products ,labor protection products,etc. The mechanical equipment is sold out to France,Turkey,Japan,Uzbekistan,etc.And it is favored by customers domestic and overseas.

China Hot Ash Vacuum Cleaner Ash Collector

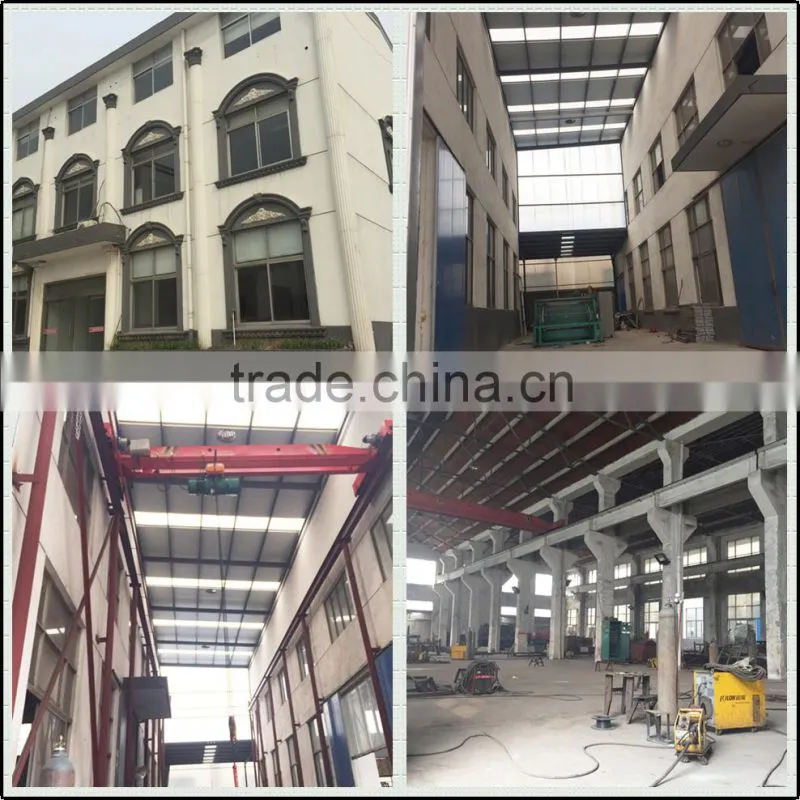

Factory Advantage

Manufacturer
Over 15 years dryer manufacturers
Strict quality control
free trial
Fast Delivery
Professional after-sale service
OEM& ODM accept

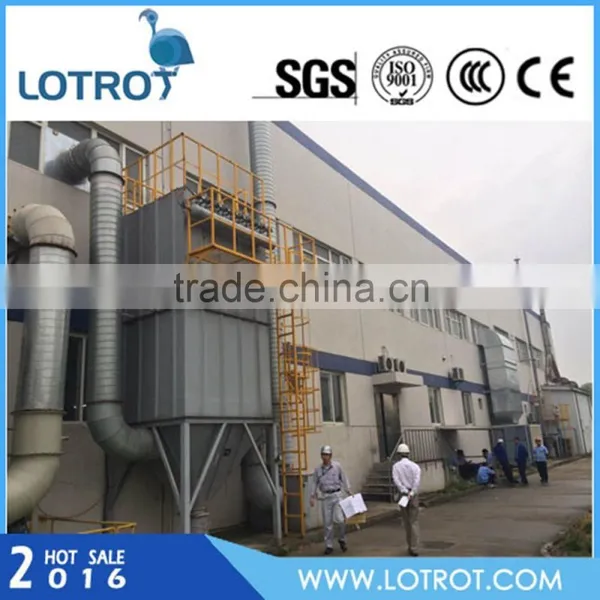

Project Case

 China Hot Ash Vacuum Cleaner Ash Collector

Our Customer

 China Hot Ash Vacuum Cleaner Ash Collector

Packing and Shipping of China Hot Ash Vacuum Cleaner Ash Collector

Packaging Details:wooden case
Delivery Detail: 30-60 days

LOROT Support

Besides domestic market,our products has been exported to Russia,France,Japan,Turkey,Uzbekistan,etc.
We insist on "the quality of products is our life" all the time,and guarantee the quality of goods strictly and offer the best service to our customers.
Pre-sale Service:
1,Selection of Equipment Model;
2,According to customer's requirement,providing schematic design and structure chart;
3,FreeTrial of customer's sample ,and providing installation drawing and structure chart after satisfying with the result of sample testing;
4,Designing and Manufacturing the equipment for customer based on customer's requirement.
After-sale Service:
1,1 year warranty ;
2,Life-long service after sale;
3,Staff Training
4,Technical Assistance of our technical engineer.
