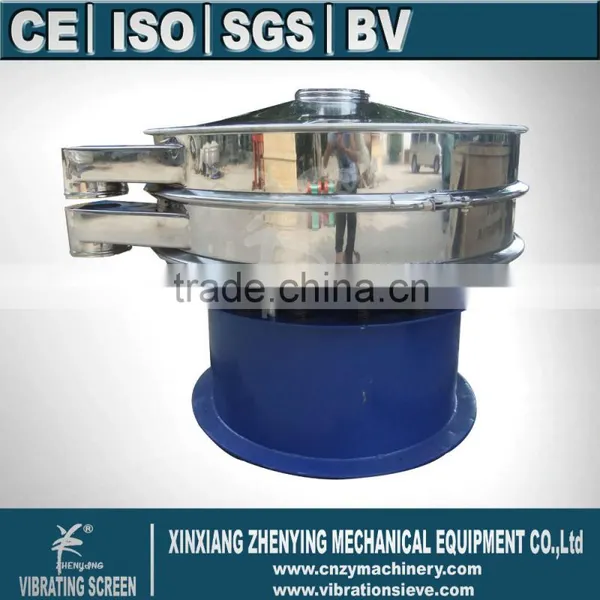

ZYD CE&ISO high quality food grade shaker screen is also called three-dimention vibrating screen.

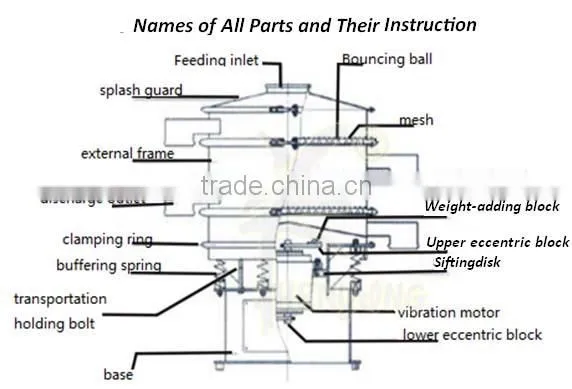

stucture:
Product Description:
We adopt new type dynamic generator, making three dimension powers more obviously and successfully, making the scale of processed materials enlarged. Accordingly this makes ZYD vibratory screen capable of processing various kinds of materials.

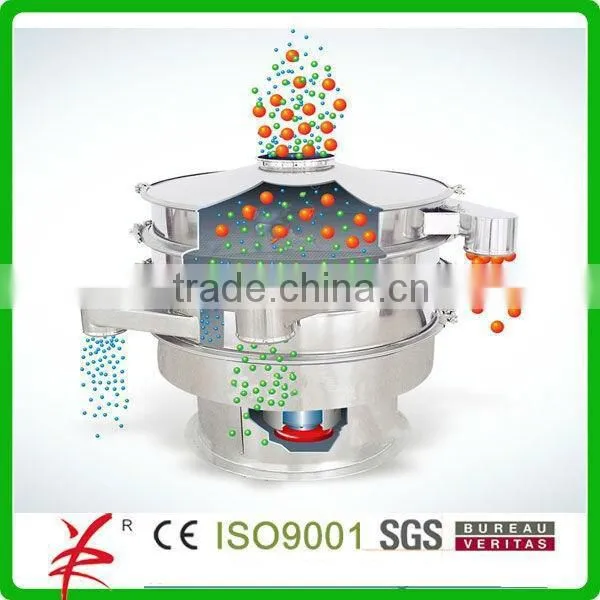

Functional principle
ItsVertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.
Application:
Various kinds of the materials can be screened by Zhenying ZYD high quality vibro screener for flour including those within 0~400mesh like dry, wet, refined, coarse, heavy and light as well as those within 0~600mesh like liquid and pasty materials.
Feature:
1. High efficiency, ingenious design, durable and suitable for screening any kinds of the powder and viscous fluid.
2.No jam for the screen net, no powders flying around and no liquid leaking out when running, fully sealed structure and environmentally friendly.
3. Small size and can be moved easily.

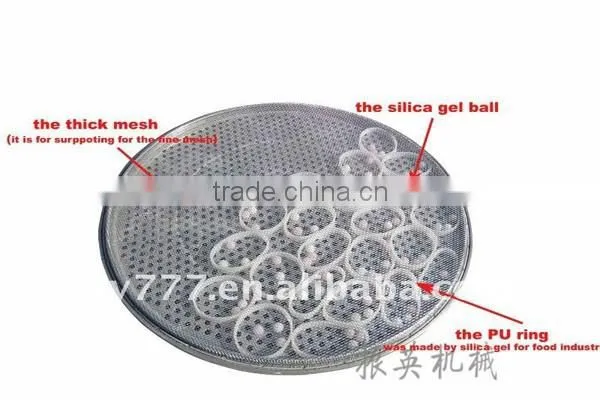

4. The screen nets are uniquely designed under 500 mesh, and the net.
5. It only takes 3~5 mins to replace and clean the net conveniently.
6. Stainless steel parts contacting materials.
7. Easy to operate, impurities and coarse materials can be discharged automatically, continuous operations
Technical Parameter:
Model |
Power (Kw) |
Sieving Diameter (mm) |
Dimension L×W×H (mm) |
layer |
|
1S ZYD-400-2S 3S |
0.18 |
320 |
580×580×560 |
1 |
580×580×660 |
2 |
|||
580×580×760 |
3 |
|||
|
1S ZYD-600-2S 3S |
0.55 |
550 |
800×800×680 |
1 |
800×800×780 |
2 |
|||
800×800×880 |
3 |
|||
|
1S ZYD-800-2S 3S |
0.75 |
750 |
900×900×780 |
1 |
900×900×930 |
2 |
|||
900×900×1080 |
3 |
|||
|
1S ZYD-1000-2S 3S |
1.5 |
950 |
1160×1160×880 |
1 |
1160×1160×1030 |
2 |
|||
1160×1160×1180 |
3 |
|||
|
1S ZYD-1200-2S 3S |
1.75 |
1150 |
1360×1360×980 |
1 |
1360×1360×1160 |
2 |
|||
1360×1360×1360 |
3 |
|||
|
1S ZYD-1500-2S 3S |
2.2 |
1450 |
1850×1850×1130 |
1 |
1850×1850×1330 |
2 |
|||
1850×1850×1550 |
3 |
|||
|
1S ZYD-1500-2S 3S |
2.2 |
1750 |
2200×2200×1360 |
1 |
2200×2200×1460 |
2 |
|||
2200×2200×1680 |
3 |
Our Advantages:
1. Idle running for 48 hours before shipment.
2. 13 months guarantee for the machine,except wearing parts.
3. Eexport experience more than 5 years, and passed the CE and ISO Certificate.
4. Professional team of engineers, support engineer on site installation and maintenance.
5. Professional video and a warm, efficient, professional service.
6.During the production, all tracked by pictures.

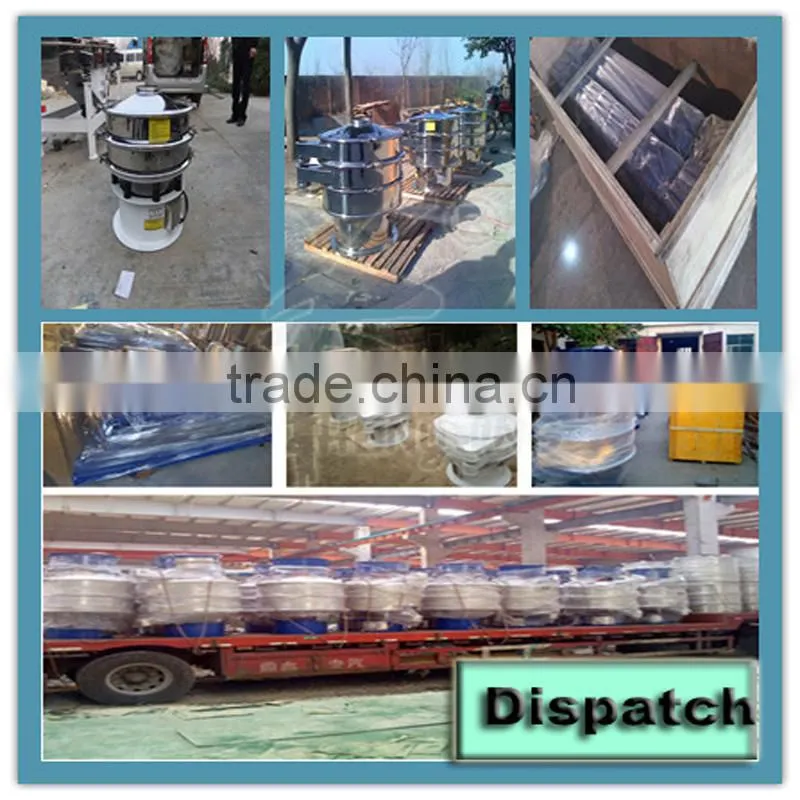

Packing and shipping:
About us:
Xinxiang Zhenying Machine is professional manufactuer in sieving equipments,conveying equipments,crushing equipments and feeding equipments as well as relevant parts.
So far we have achieved a lot of credits and authentifications include ISO 9001:2008,CE Certificate,AAA credit company and many other governmental credits.
Zhenying means flying eagle in Chinese,we will fly far in the sky of world machinery through hard-working and excellent services.
