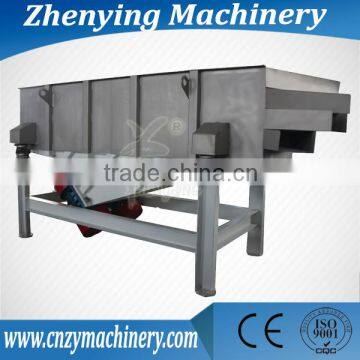

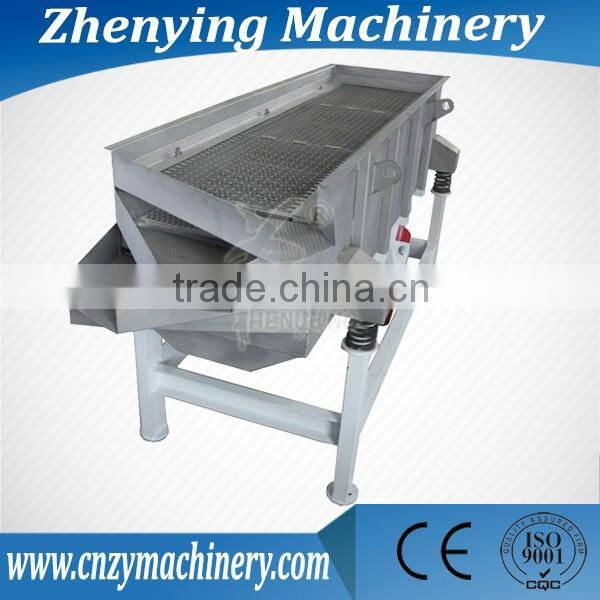

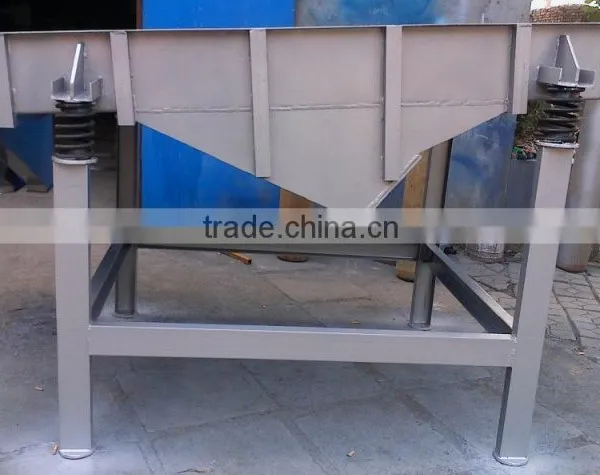

Help CenterZYSZ Sand Screening Equipment Linear Vibrating Screen
Related Products
-
ZYD High Frequency Round Screening Machine Manufacturer With CE&ISOUS$ 1,000 - 5,000MOQ: 1 Set -
ZYD High Frequency Rotary Screener Machine With CE&ISOUS$ 1,000 - 5,000MOQ: 1 Set
-
ZYD High Frequency Circular Rotary Grading Screener With CE&ISOUS$ 1,000 - 5,000MOQ: 1 Set
-
Arrowroot Flour Double Deck Vibrating Equipment With CE&ISOUS$ 1,000 - 5,000MOQ: 1 Set
-
Standard Diameter 200 Test Sieve Shaker for Lab UseUS$ 1,000 - 100,000MOQ: 1 Set
Xinxiang Zhenying Mechanical Equipment CO., Ltd is the professional machinery manufacturer
specialized in sieving,conveying,crushing and feeding equipment.
High quality product and service,hard-woking and cooperative spirits accelerate the growth of
Zhenying company.
With ISO9001:2008,CE Certificate,AAA credit company and many government credits,our
products are your best choice.
Zhenying means flying eagle in Chinese,hope we can fly far away in the sky of world machinery.
This series machines use excellent vibrant motor as power source, so that the materials can be
thrown up on the sieve and forward to make a straight movement. It can be equipped with
single or multi-screen to achieve the grading, removing impurity, removing dust, testing,
washing selecting, dehydration etc.
Detail

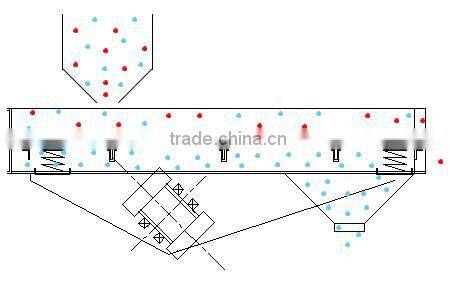

Working principle
Technical Parameter
Model |
Screen Specification (mm) |
Layer |
Mesh Size (mm) |
Particle Size (mm) |
Vibrating Frequency (r/min) |
Double Amplitude (mm) |
Power (KW) |
Vibrating Direction Angle (°) |
|
ZYSZ525 |
500×2500 |
1--6 |
0.074-10 |
0.06-15 |
960, 1450 |
4--8 |
2×0.4, 2×0.75 |
45-60 |
|
ZYSZ1020 |
1000×2000 |
1--6 |
0.074-10 |
0.07-20 |
960 |
4--8 |
2×0.75, 2×1.5 |
45-60 |
|
ZYSZ1025 |
1000×2500 |
1--6 |
0.074-10 |
0.07-15 |
9,601,450 |
5--8 |
2×0.4, 2×0.75 |
45-60 |
|
ZYSZ830 |
800×3000 |
1--6 |
0.074-10 |
0.1-20 |
960 |
6--8 |
2×0.75, 2×1.5 |
45-60 |
|
ZYSZ1030 |
1000×3000 |
1--6 |
0.074-10 |
0.1-20 |
960 |
6--8 |
2×0.75, 2×1.5 |
45-60 |
|
ZYSZ1224 |
1200×2400 |
1--3 |
0.074-10 |
0.1-23 |
960 |
6--8 |
2×0.75, 2×1.5 |
45-60 |
|
ZYSZ1230 |
1200×3000 |
1--3 |
0.074-10 |
0.1-23 |
960 |
6--8 |
2×1.5 |
45-60 |
Application
It is widely used in grinding materials, chemical, construction, chemicals, pharmacy,
metallurgy, ceramics, fertilizers, coal industry to screening and grading the
granular and powder bulk materials.
Feature
1. High sieving efficiency, high utilization ratio of screen, with bouncing balls set under the screen
which eliminates mesh blockage, increasing precision of sieving.
2. Continuous working.
3. Fully enclosed structure avoids dust overflow, reaching the request of sanitation.
4. Rubber springs may be used on customers’ requests, which would considerably reduce running
noise, improving labors’ working environment.
5. Simple and rational tensioning mode of screen, easy to replace.
6. The screen frame may be replaced as per different mesh numbers, saving running cost.
Our advantage
1.Our machine idle running for 48 hours before shipment.
2. 13 months guarantee for the machine,except wearing parts.
3. We have export experience more than 5 years, and passed the CE and
ISO Certificate.
4. We have a professional team of engineers, support engineer on site
installation and maintenance.
5. Provide the professional video and a warm, efficient, professional service.
6.The order service: during the production, all tracked by pictures.
Factory information
Special needs can tell us (like "made in China" sprayed on the case).
1.Installation,Debugging.
Provide installation files, technical data and related soft copies or videos
etc to ensure customer could install and debug by themselves.
2.warranty
The provider guarantee the vibrating screen could meet production technical
standard and performancerequirements indicated in the contract, 24 months
for the machine after delivery ,12 months for the motor after delivery.
3.Technical Support
Our company will make occasional call to find problems and solve them in
time.Provide technical support timely.
4.Response Time(24 hours)
Contact us through Telephone or Email, we will respond within 24 hours.
Certification
Please provide the following information to help us recommend a
right machine for you:
1.material to be processed?
2.using purposes:to grade or to remove dusts?
3.granule size of material? Or mesh number?
4.moisture content if any?
5.granule size proportion if possible to get?
6.capacity(tons or kg or litter per hour or day)?
local power supply(voltage and frequency)?
Welcome to contact us
Add: No.1018 South of Xinfei Road, Xinxiang, Henan ,China
Tel: +86-0373-3532216(24 hours online for you)
Mob:+8618238795416
Fax: +86-0373-3532217
QQ: 3047711785
Skype: cnzymachinery005
Web Site:
