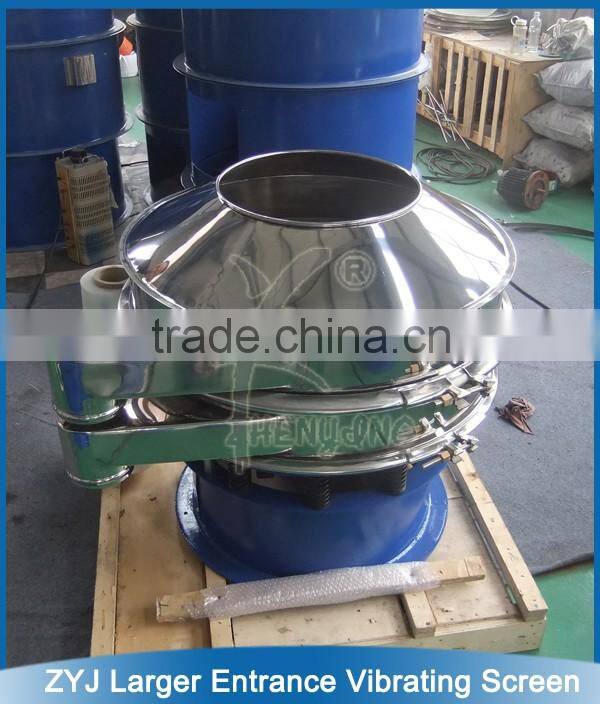

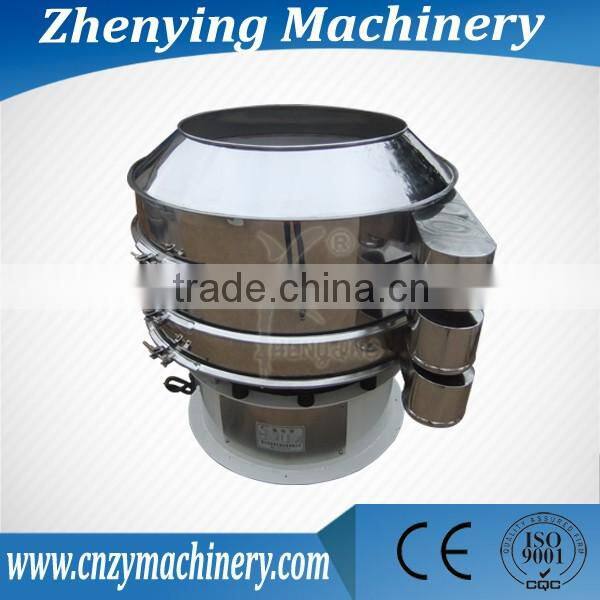

ZYJ hIgh efficiency and quality honey filtering machine
with CE & ISO
Description
ZYJ series are designed for you to easily observe materials processing with bigger materials inputs,
the principle same as ZYD.

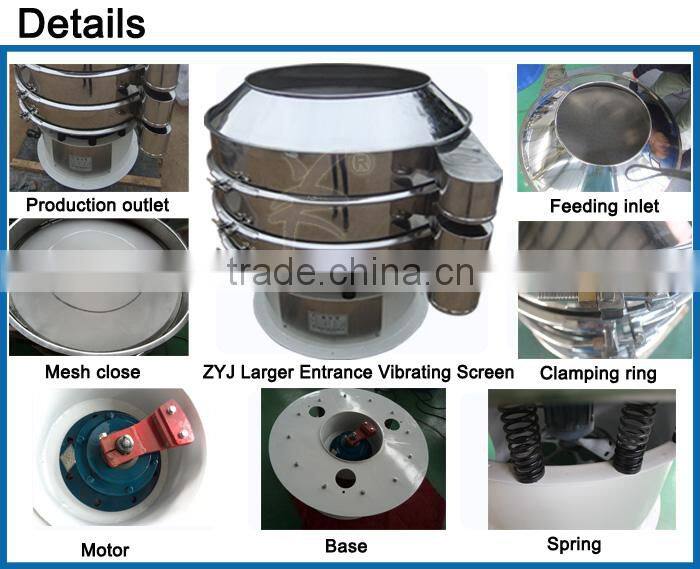

Details
Working principle
Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded
as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and
inclined movement, and then pass themovement to the sieving surface. Adjusting the phase
angle on the top and bottom can change trajectories of the materials on the sieve.
Feature
1. Round design, no dust pollution, no leaking liquid.
2. Structure is suitable for small volume and light heavy, easy to be installed and maintained.
3. Rapidly clear up each material and grain inside the slurry, the solid matter can automatically
discharge.
4. Adjustable outlet, facilitate to replace the screen.
Technical Parameter
Model |
Power (Kw) |
Sieving Diameter (mm) |
Dimension L×W×H (mm) |
layer |
|
1S ZYD-400-2S 3S |
0.18 |
320 |
580×580×560 |
1 |
580×580×660 |
2 |
|||
580×580×760 |
3 |
|||
|
1S ZYD-600-2S 3S |
0.55 |
550 |
800×800×680 |
1 |
800×800×780 |
2 |
|||
800×800×880 |
3 |
|||
|
1S ZYD-800-2S 3S |
0.75 |
750 |
900×900×780 |
1 |
900×900×930 |
2 |
|||
900×900×1080 |
3 |
|||
|
1S ZYD-1000-2S 3S |
1.5 |
950 |
1160×1160×880 |
1 |
1160×1160×1030 |
2 |
|||
1160×1160×1180 |
3 |
|||
|
1S ZYD-1200-2S 3S |
1.75 |
1150 |
1360×1360×980 |
1 |
1360×1360×1160 |
2 |
|||
1360×1360×1360 |
3 |
|||
|
1S ZYD-1500-2S 3S |
2.2 |
1450 |
1850×1850×1130 |
1 |
1850×1850×1330 |
2 |
|||
1850×1850×1550 |
3 |
|||
|
1S ZYD-1500-2S 3S |
2.2 |
1750 |
2200×2200×1360 |
1 |
2200×2200×1460 |
2 |
|||
2200×2200×1680 |
3 |
Application
The application same as ZYD, it is especially suitable for the filtration of slurry glaze and pigment
in ceramic industry.
Factory information
Special design can tell us (like "made in China " sprayed on the case)
1.Installation,Debugging.
Provide installation files, technical data and related soft copies or videos etc to ensure
customer could install and debug by themselves.
2.warranty
The provider guarantee the vibrating screen could meet production technical standard and
performance requirements indicated in the contract, 24 months for the machine after delivery
,12 months for the motor after delivery.
3.Technical Support
Our company will make occasional call to find problems and solve them in time.Provide
technical support timely.
4.Response Time(24 hours)
Contact us through Telephone or Email, we will respond within 24 hours.
Certification
Please provide the following information to help us recommend a right machine for you:
1.material to be processed?
2.using purposes:to grade or to remove dusts?
3.granule size of material? Or mesh number?
4.moisture content if any?
5.granule size proportion if possible to get?
6.capacity(tons or kg or litter per hour or day)?
local power supply(voltage and frequency)?
