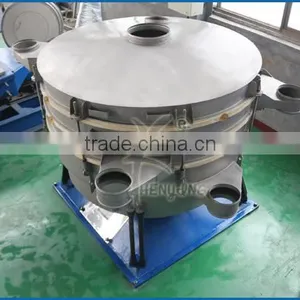

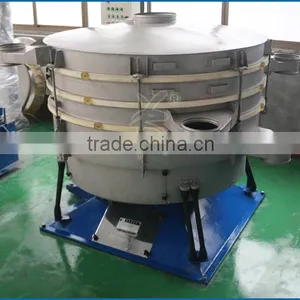

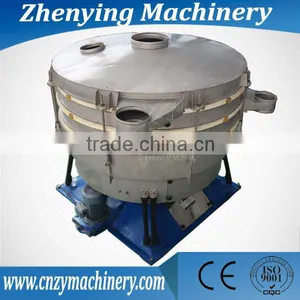

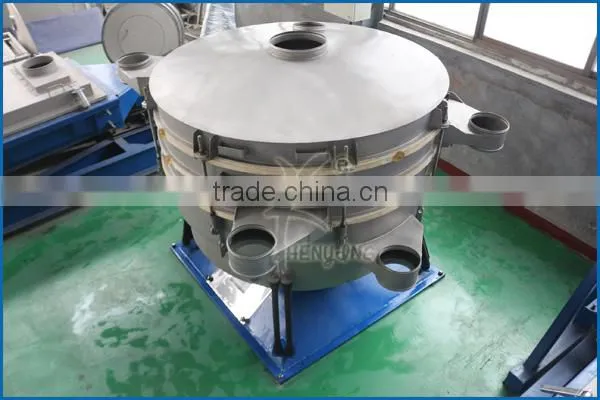

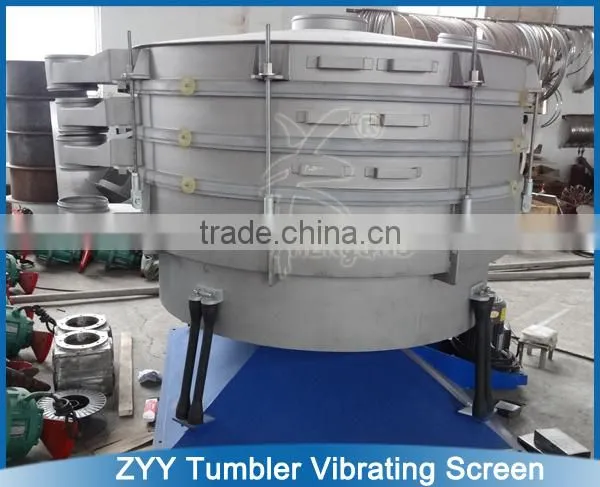

Stainless steel swing rotary sieve for breadfruit sieving
Description:
Rotary sieve is an efficient sieving machine which is designed to meet the
large output, high-density sieving of the manufacturers. The simplest sieving
method is using your hands with the staring of your eyes. vibrating screen machine
is the mechanical simulation for this, it is the most effective principle which takes
the most effective simulation of the artificial sieving movement (sieving precision,
efficiency, service life is 510 times than common cylinder sieve), for the processing
of all the fine and ultra-fine powder and special materials, particularly suitable for
materials which are difficult to classify.
Machine features:
1. Rotary sieve sieving efficiency is as high as 90% -95%.
2.When using the silicone rubber balls, ultrasonic and other high-performance mesh-
cleaning device system, the sieve aperture will not be blocked.
3.Enclosed cleaning dust, safe operation; the acceleration is 4.5 times lower than
common vibrating screen.
4.Noise <75 dB. Re-optimization is balanced, ground-based dynamic load is low.

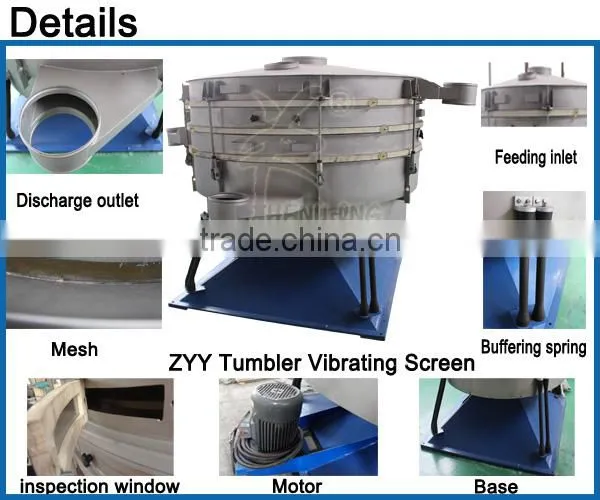

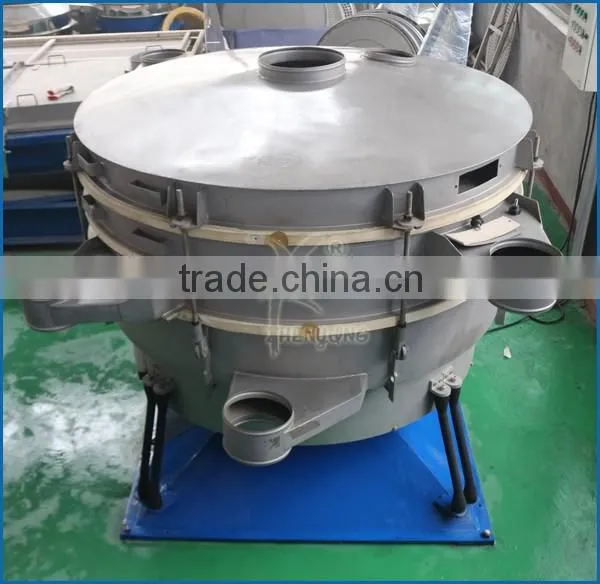

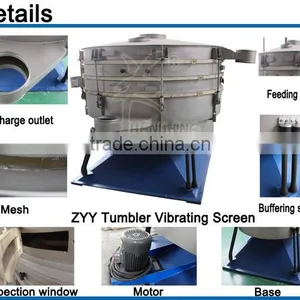

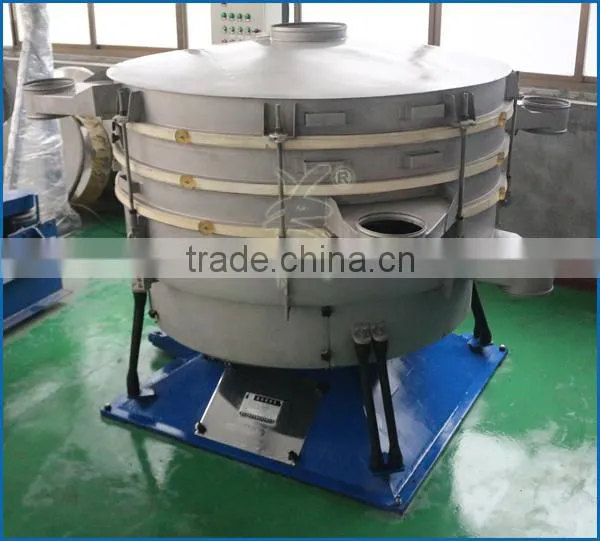

Machine pictures:

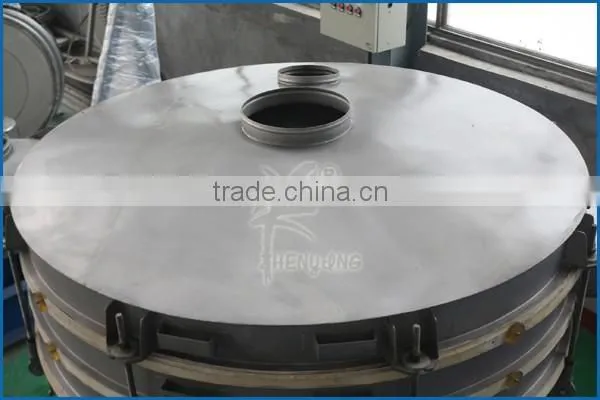

Dust cover

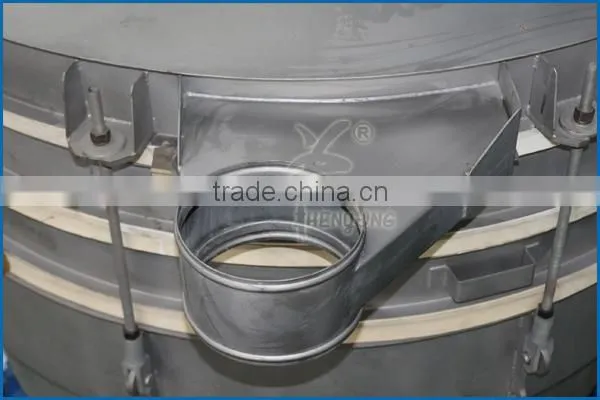

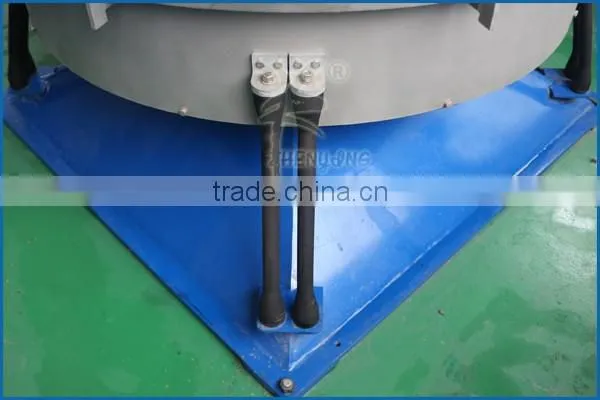

Rubber

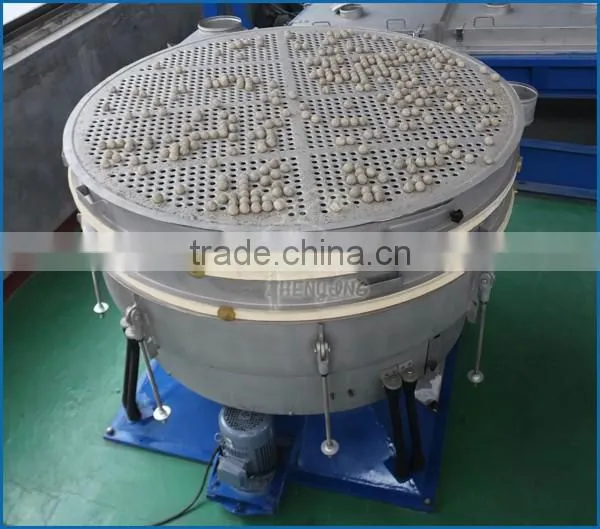

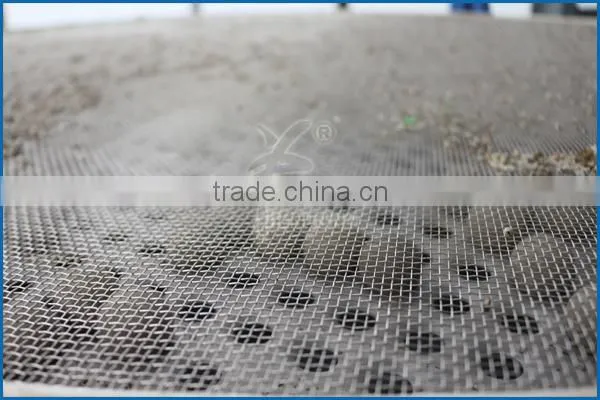

Cleaning system

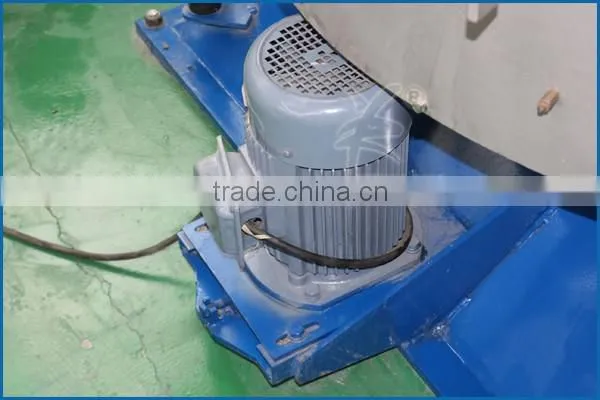

Motor
Technical Parameter
Model |
ZYY-600 |
ZYY-1000 |
ZYY-1200 |
ZYY-1600 |
ZYY-2000 |
ZYY-2400 |
ZYY-2600 |
Diameter(mm) |
600 |
1000 |
1200 |
1600 |
2000 |
2400 |
2600 |
Sieving area(m²) |
0.29 |
0.71 |
1.11 |
1.83 |
2.62 |
3.63 |
5.31 |
Spatial requirement |
0.4 |
1.2 |
1.6 |
2.5 |
3.6 |
5.2 |
6.8 |
Max sieve layer(s) |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
Power Consumption(Kw) |
0.25 |
1.5 |
2.2 |
2.2 |
2.2 |
5.5 |
5.5 |
Filter accessories |
2 layers |
2 layers |
2 layers |
1 layer |
1 layer |
1 layer |
1 layer |
First, rotary sieve empty running 48 hours before packing,then to observe whether
the motor heating, the machine whether there is noise and so on;finally,to pack and
shipment when fully meet requirements.
1.24 hours website hotline service
2.Video installment and maintanence instructions for each mode of sieve vibrating
3.For big sieve vibrating order,to dispatch technician is negotiable. Aftersales Guarantee.
Zhenying machine,Xinxiang is the professional machinery manufacturer specialized in

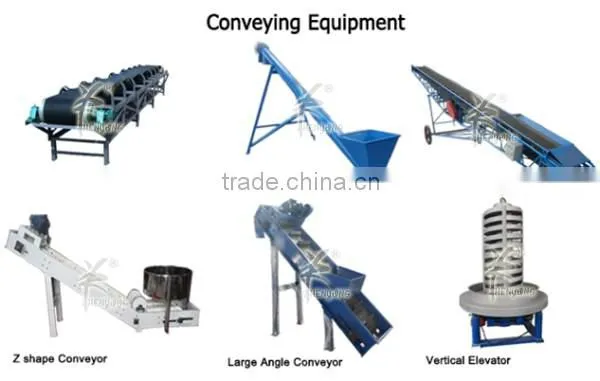

sieving,conveying,crushing and feeding equipment.
High quality product and service,hardwoking and cooperative spirits accelerate the
growth of Zhenying.
With ISO9001:2008,CE Certificate,AAA credit company and many government credits,
our products are your best choice.
Zhenying means flying eagle in Chinese,hope we can fly far away in the sky of
world machinery.
Our Advantages:
1. Our machine idle running for 48 hours before shipment.
2. 13 months guarantee for the machine,except wearing parts.
3. We have export experience more than 6 years, and passed the CE and ISO Certificate,
more than 30 patents.
4. We have a professional team of engineers, support engineer on site installation and
maintenance.
5. Provide the professional video and a warm, efficient, professional service.
6.The order service: during the production, all tracked by pictures.
