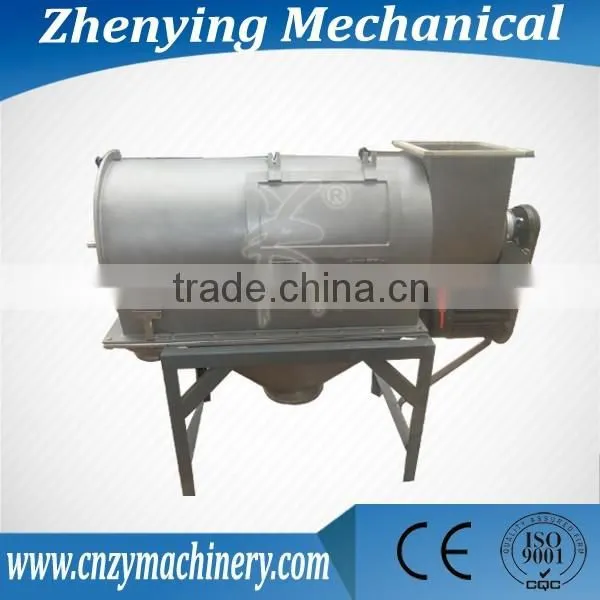

ZYQW china xxnx hot mini horizontal Airflow vibrating screen classifier
description:
The cylinder screen mesh of this device is placed inside the machine. The materials enter the net tube with airflow mixed and atomized after passing the screw conveying system; some of the materials are sprayed through the net and discharged from the fine stuff portal by the centrifugal force and cyclone propelling power, which are caused by the rotor vane inside the net tube. Other materials which cannot cross the net, are discharged from the rough stuff portal along the net tube wall.

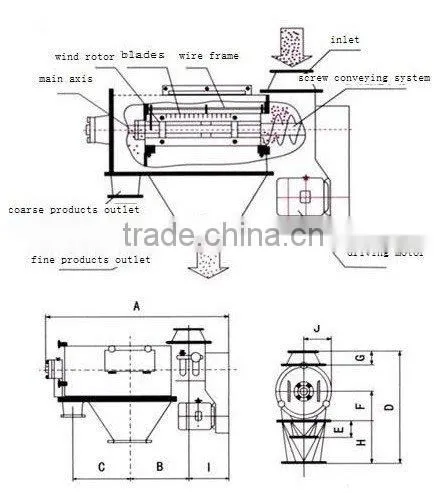

Functional principle:
Technical Parameter
Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
ZYQW18-65 |
1430 |
460 |
420 |
1005 |
135 |
230 |
250 |
330 |
340 |
210 |
ZYQW25-85 |
1845 |
655 |
766 |
1240 |
320 |
285 |
300 |
350 |
380 |
290 |
ZYQW50-130 |
2230 |
870 |
790 |
1775 |
280 |
515 |
150 |
660 |
400 |
485 |
Application:
The machine is available in the industries such as metallurgy, mining, pharmacy, food, chemical engineering, metal powder and nonmetal powder etc.
Feature:

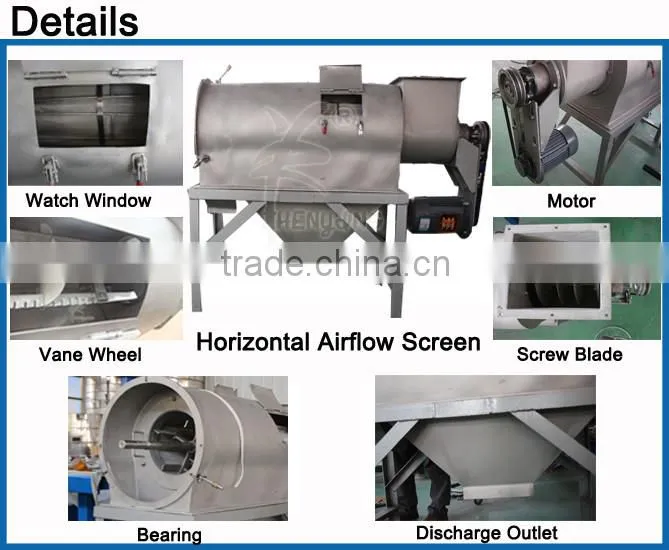

1 The whole machine is in a small size and light so that it is stable in operation, free from vibration and noise, and with its good sealed structure, it is free from dust and performs in high efficiency.
2 The shell of machine is in a new design which makes it easy to install and convenient to control.
3 The machine can operate either in a single unit or multiple units, and it is safe and reliable for a long time operation.
4 The screen-mesh can be cleaned automatically by cyclone.
5 The machine has the function of re-crashing the agglomeration materials.
6 The new type roller bearing can prolong the service life.
7 The machine can work with the pneumatic conveying systems, and materials can be directly sent into the wind path to save resources.
8 New design: The airflow protection system can transfer the purified air to the two ends of the device, which will reduce the temperature created in the operation of the device.
9 It will form the air-isolated layer to avoid the powder entering the bearing so as to prolong the service life of the bearing effectively, reduce the maintenance frequency, and increase work efficiency.
10 The machine can be specially designed to meet special requirements
Packaging & Shipping:
Standard export package of fumigation-free wooden case for bucket elevator for sale, container or according to your requirement. If you have any special needs please tell us (like "made in China" sprayed on the case)
First,ZYQW china xxnx hot mini horizontal Airflow vibrating screen classifier empty running 48 hours before packing,then to observe whether the motor heating, the machine whether there is noise and so on;finally,to pack and shipment when fully meet requirements.
Our Services
Pre-Sales Service
1.24 hours inquiry and consulting support.
2.Special customizing and designing as required.
3.Sample testing support.
4.Paste customer's label on request.
5.View our Factory
After-Sales Service
1.Training how to instal and use the machine.
2.Engineers available to service machinery overseas
Company Information
Zhenying machine,Xinxiang is the professional machinery manufacturer specially in
sieving,conveying,crushing and feeding equipment.High quality product and service,
hard-woking and cooperative spirits accelerate the growth of Zhenying.
With ISO9001:2008,CE Certificate,AAA credit company and many other government
credits,our products are your best choice.
Zhenying means flying eagle in Chinese,hope we can fly far away in the sky of world
machinery sky.
FAQ
Please provide the following information to help us recommend a right machine for you:
1.material to be processed?
2.using purposes:to grade or to remove dusts?
3.granule size of material? Or mesh number?
4.moisture content if any?
5.granule size proportion if possible to get?
6.capacity(tons or kg or litter per hour or day)?
7.local power supply(voltage and frequency)?
