ZYY CE&ISO Circular Cassava Starch Processing Machine

ZYY CE&ISO Circular Cassava Starch Processing Machine photo-1
US$ 2,602 - 46,890 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Food Processing
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao/Tianjin/Follow clients
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Food Processing
Place of Origin Henan, China
Brand Name zhenying
Model Number ZYYcassava starch processing machine
Voltage 380V or 220V or Optional
Power(W) 0.5~5.5KW
Dimension(L*W*H) 1160*1160*1180mm
Weight 450kg
Certification ISO9001:2008 & CE
Warranty 13 months from delivery time
After-sales Service Provided Engineers available to service machinery overseas

Specifications

cassava starch processing machine
1.high efficiency.
2.easy to operate.
pact structure.
4.low comsumption and noise.

  ZYY CE&ISO circular cassava starch processing machine


Product Description





Description:

This machine is an efficient which is designed to meet the large output, high-density sieving of the manufacturers. The simplest sieving method is using your hands with the staring of your eyes. cassava starch processing machine is the mechanical simulation for this, it is the most effective principle which takes the most effective simulation of the artificial sieving movement (sieving precision, efficiency, service life is 5-10 times than common cylinder sieve), for the processing of all the fine and ultra-fine powder and special materials, particularly suitable for materials which are difficult to classify.

  ZYY CE&ISO circular cassava starch processing machine

Detail pictures:

ZYY CE&ISO circular cassava starch processing machine

ZYY CE&ISO circular cassava starch processing machine

Features:

1.Up to 5 times outlet compared than common sieving machine.

2.At most 6 Level separation.

3.Sieving efficiency is as high as 90% -95%.

4.When using the silicone rubber balls, ultrasonic and other high-performance mesh- cleaning device system, the sieve aperture will not be blocked.

5.Enclosed cleaning dust, safe operation; the acceleration is 4.5 times lower than common vibrating screen.

6.Noise <75 dB. Re-optimization is balanced, ground-based dynamic load is low.

Technical Parameter:



 Model



ZYY-600



ZYY-1000



ZYY-1200



ZYY-1600



ZYY-2000



ZYY-2400



ZYY-2600

Diameter(mm)

600

1000

1200

1600

2000

2400

2600

Sieving area(m²)

0.29

0.71

1.11

1.83

2.62

3.63

5.31

Spatial requirement

0.4

1.2

1.6

2.5

3.6

5.2

6.8

Max sieve layer(s)

5

5

5

5

5

5

5

Power Consumption(Kw)

0.25

1.5

2.2

2.2

2.2

5.5

5.5

Filter accessories

2 layers

2 layers

2 layers

1 layer

1 layer

1 layer

1 layer

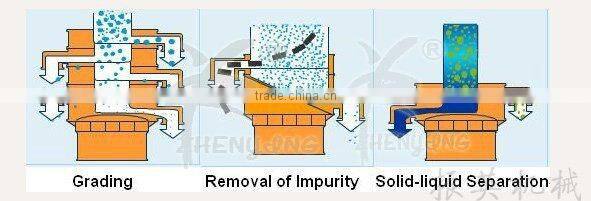

Application:

1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.



2) Abrasive material and ceramic industry: building sand,mica, alumina, abrasive, refractory material, slurry, etc.



3) Food industry: cassava starch,sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.



4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.



5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.



6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.



Company Information

ZYY CE&ISO circular cassava starch processing machine

Xinxiang Zhenying Mechanical Equipment Co.,Ltd,a professional manufacturer for ZYY  CE&ISO tumbler circular swing used vibrating screen , conveyor ,feeder,  crusher, and the related machinery since 1990.

ZYY CE&ISO circular cassava starch processing machine

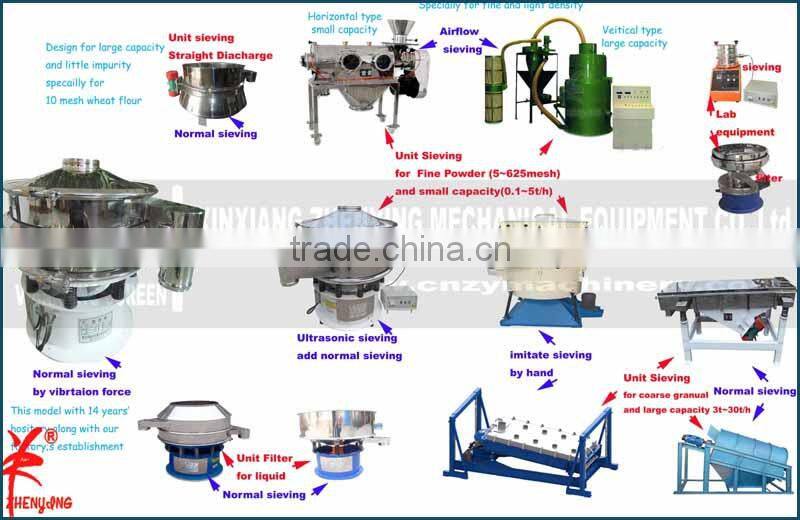

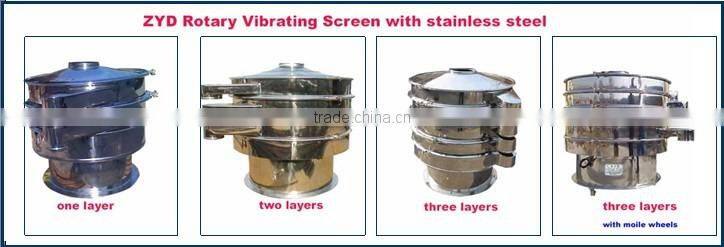

Our other machines:
