Android tv Box I.mx6 ARM Cortex-A9 Quad Core Processor Development Board With 1.2GHz New Electronic Components

Android tv Box I.mx6 ARM Cortex-A9 Quad Core Processor Development Board With 1.2GHz New Electronic Components thumbnail-1
Android tv Box I.mx6 ARM Cortex-A9 Quad Core Processor Development Board With 1.2GHz New Electronic Components photo-1
US$ 100 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
D/C:
IAC-IMX6-Kit
Package:
each android quad core tv box one package
Model Number:
IAC-IMX6-Kit
Contact Supplier Request Quote Chat Now
Zhejiang Qiyang Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
D/C IAC-IMX6-Kit
Package each android quad core tv box one package
Model Number IAC-IMX6-Kit
Type Other, android quad core tv box
Brand Name QY
Place of Origin Zhejiang, China



Product Description



Cortex-A9  Freescale Development Board / android quad core tv box

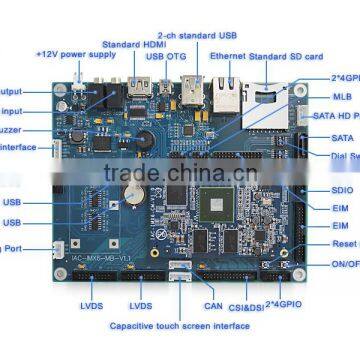

Customed Developing android quad core tv box  Product Picture:

android tv box I.mx6 ARM Cortex-A9 quad core processor development board with 1.2GHz new electronic components



 Hardware

Resources

CPU

Freescale i.MX6D processor,ARM® Cortex™-A9 core,1.2GHz

RAM

DDR3 SDRAM,4*256MB, total 1GB

Flash

4GB EMMC

Network

AR8035 Network Chip, adopt RGMII mode, support 10M/100M/1000M

Communication

5-ch RS232, 1 port (com0) as the debug UART, 2-ch RS232 Compatible with RS485

1-ch High speed OTG,4-ch USB, 1-ch connects to MIN_PCIE Interface

2-ch CAN, support CAN2.0, 1-ch TTL Output, 1-ch CAN output

1-ch 10/100/1000Mbps Ethernet port, with ACT/LINK indicator

Display

18-bit TFT-LCD(Compatible with 16, 24 bits), resolution up to 1920 * 1200

VGA, can be connected with universal display

2-ch LCDS Interface, each channel can support resolution up to 1920*1200

HDMI Interface, support HDMI 1.4



Audio

McASP audio interface; binaural output; MIC audio input

Input Interface

4-wire resistive touch panel

Standard I2C Capacitive panel

CAMERA Interface, standard interface support OV5642 camera module

Expansion Interface

MINI_PCIE 2.0

SIM Card

Memory Interface

1-ch SD Card interface

1-ch SATA Hard disk interface, SATAII standard, speed up to 3.0Gbps

Other

Reset circuit, Watch dog, RTC, Buzzer, JTAG interface

Power Input

+12V power supply, can support +4.75V~+18V wide range voltage supply

Resource

Development Tools

Development environment: Virtual Machine VM9.0.2+ubuntu12.04.1

Application layer development debug tool

Cross-compiler

Common terminal development debugging tool

Image File

OS image file, support multiple resolution display

Test Program

Interface using demo test program and test program source code

Source Code

Bootloader, kernel, system source code

Manual

Mainboard User manual,Device Manual

Schematic

Mainboard structure size chart

Electrical

Specification

Size

160mm*105mm

PCB

8-layer high precision immersion gold process

Power

Consumption

≤3W

Operation Temperature

-20°C ~ +70°C

Operation Humidity

5% ~ 95%, Non-Condensing





Freescale Development Board / android quad core tv box Product Specifications:

ARM® Cortex™-A9,1.2GHz, compatible with solo/dual/quad core;



1MB L2 Cache,32 KB instruction and data caches, NEON SIMD Media Accelerator;



2D/3D/VG Accelerator,1080P h.264 video hardware codec,support dual 720P video encoding;



1x 20-bit parallel, MIPI-CSI2 (4-channel), three simultaneous inputs;



2-ch HOST USB HSIC, 1-ch OTG and 1-ch HOST USB integrated PHY;



1 industrial gigabit Ethernet MAC(10/100/1000MHZ);



2-ch CAN ports, each channel can up to 1 Mbps, support CAN2.0;



3 SD/MMC 4.4 and 1 SDXC;



5 SPI, 5 UART, 3 I2C, 4 PWM;



Integrated MIPI-HSI interface, 1-ch PCIe2.0 interface;



Dual LVDS interface, support resolution up to 2048*1536;



Freescale PF100 PMU;



High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection.

Cortex-A9 Freescale Development tv motherboard Board/ android quad core tv box   :

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, android tablet etc.



  Demo board is standard dual core board. Can be customed to Solo/Quad core.

Company Information

We are a high and new technology enterprise which is specializing in R&D, manufacture and sell embedded computer, android quad core tv box / motherboard  with high performance, low power consumption, low cost, small volume, and provides embedded hardware solutions. Over the years we focused on the development and services of embedded ARM industrial control products, which provides an easy-to-use development tools, reference design platform, product solutions of volume production for embedded development engineers. It helps customers to shorten the time from embedded board to products, and improves product quality. Our company is dedicated to become a leading embedded hardware and software supplier.





Packaging & Shipping

android tv box I.mx6 ARM Cortex-A9 quad core processor development board with 1.2GHz new electronic components

1PC android quad core tv box each Box/Carton



Our Services





Custom Service for  android quad core tv box



Cooperation Mode Based on Core Module Customization The Whole Board Customization
Specification Customize expanded board based on our core module Offer complete mainboard customization based on the process platform we choose for you
Service Provide device selection, design suggestions, plate type design;
Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype;
Provide upper development, and the follow-up with long-term technical support, quality tracking service. 		Provide device selection, design suggestions, plate type design
Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype;
Provide upper development, and the follow-up with long-term technical support, quality tracking service.
Development Cycle

Provide mainboard test usually in 8-10 weeks(no fly line)

 Provide mainboard test usually in 2-3 months(no fly line)
Deliver Principle diagram, PCB, driver source code, prototype, etc. Principle diagram, PCB, driver source code, prototype, etc.
Service Extension(optional) Offer trial production/batch production, make production process, ensure the quality and delivery time;
EMC/MI Test;
Perfect quality assurance and after-sales service;
Product system, software and hardware upgrades. 		Offer trial production/batch production, make production process, ensure the quality and delivery time;
EMC/MI Test;
Perfect quality assurance and after-sales service;
Product system, software and hardware upgrades.
Expense Low, according to user's  requirements and difficulty level of R&D; The user who choose OEM could return part of R&D costs High, according to user's  requirements and difficulty level of R&D; The user who choose OEM could return part of R&D costs





Warranty

Hardware maintenance service

Hardware maintenance service means providing original factory maintenance,maintenance,repairing and recovering product performance for user’s mother board / core board .Including core board,baseboard,LCD,touch screen hardware fault test,electronic device replacement service.


Software and Hardware upgrading service

Software upgrading service means users installing operation system,installing equipment control software,according to customers’ requirement to customize winCE ,Linux OS . Hardware upgrading service means providing hardware upgrading scheme and hardware installing service.

Warranty Service

All parts product warranty period start form the purchase date, and under warranty is free of charge. The following circumstances products, not in warranty scope:
(1) Over the validation date of warranty;
(2) Belong to the user improper use or artificial damage;
(3) Without effective warranty certificate and invoice (can prove the goods in the warranty period excluded);
(4) Delivery product barcode or model not conform to physical commodity.
