ARM9 Processor SBC (single board computer) EP9315
- 100 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card
Product Details
Model Number: | QY-9315S | Type: | Other, CIRRUS LOGIC | Brand Name: | QY |
Place of Origin: | Zhejiang, China |
Product Description
Specifications
ARM9 Processor SBC (single board computer)1.ARM SBC CIRRUS LOGIC EP9315
2.200MHz ARM9 Processor
3.64M SDRAM, 32MB NorFlash
CIRRUS LOGIC EP9315 ARM9 Processor SBC (single board computer) Specifications
Stamp Module is designed by 6 layer PCB; On-board 64M SDRAM, 32MB NorFlash; with commonly used interfaces, such as TFT-LCD,touch screen, VGA, network, matrix keypad, PC104, CAN, SPI, high-speed USB HostDevice, PS/2, IDE, CF card, RS232485 serial port, audio, etc; support +6V~+25V wide range voltage power supply.
Evaluation Board a general standard reference design board for QY-9315P, with commonly used interfaces, such as TFT-LCD, touch screen, network, matrix keypad, IDE, high-speed USB HOSTDevice, CF card, RS232485 serial port, audio, MIC, etc; support +6V~+25V wide range voltage power supply; can provide a complete design material for user to develop or custmize.
ARM9 Processor SBC (single board computer) Stamp Module Specifications
• CIRRUS LOGIC EP9315 processor, ARM920T core
• 200MHz
SDRAM Memory
• 64MB SDRAM, 2pcs * 4Banks * 4Mbitsx16bits SDRAM
FLASH Storage
• On-board 2-piece 16M*16bits NorFlash, 32M, could change a large capacity or industrial chip according to customer's requirement
PCB Specification & Size
• Using eight floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 147 x 101.6 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 12V Dc power supply, low power consumption, <3W
Support OS
• Linux2.6.8 + QT2.3 > • WindowsCE 5.0
CIRRUS LOGIC EP9315 processor Single Board Computer Software & Technical Support

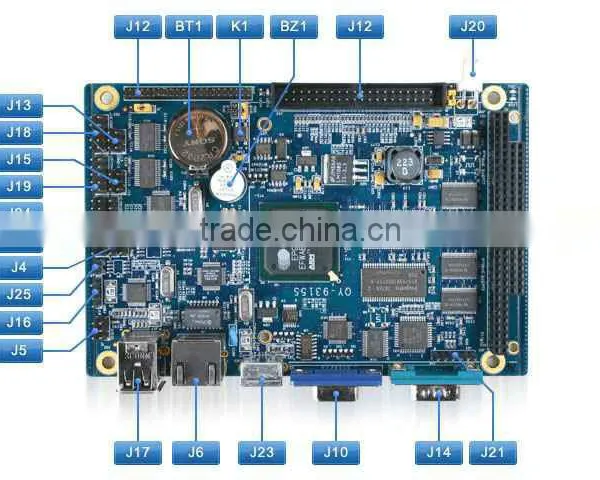

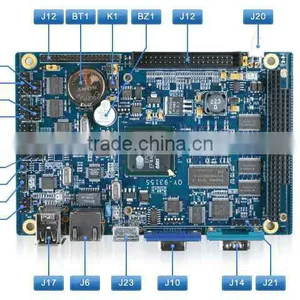

ID | Item | Description |
---|---|---|
J1 | JTAG interface | Simulation, debugging |
J4 | SPI interface | SPI communication |
J5 | AUDIO interface | AC"97 double sound channel audio input/output |
J6 | Ethernet interface | 10M/100M self-adaptive |
J9 | LCD interface | Expand LCD interface,with 4-wire touch screen interface |
J10 | VGA interface | VGA output, connect the monitor |
J11(back) | CF card interface | CF card storage |
J12 | IDE interface | IDE devices connection |
J13 | COM2/COM3 | 3-wire RS232 serial port |
J14 | Debug serial port | Download, communication |
J15 | RS485 | RS485 bus development and application |
J16 | USB Host 3 | USB 2.0 host application |
J17 | USB Host 1&2 | USB 2.0 host application |
J18 | COM5 | 9-wire RS232 serial port |
J19 | COM4 | 9-wire RS232 serial port |
J20 | Power interface | +12V power supply, support +6 ~+25V wide range voltage |
J21 | CPLD programming mouth | CPLD program writing |
J22 | PC104 interface | Standard 8bit/16bit PC104 interface, can stack |
J23 | PS/2 interface | External PS/2 keypad |
J24 | 8*8 matrix keypad interface | Used to connect keypad input, or as I/O mouth |
J25 | CAN interface | CAN 2.0 A/B agreement, support PeliCAN mode |
K1 | Reset button | System reset |
BT1 | Backup battery | System clock power supply |
BZ1 | Buzzer | Alarm prompt device |
ARM9 Processor SBC (single board computer) Linux Software Features
Item | Content | Function |
---|---|---|
Cross-compiler | arm-linux-gcc-3.4.3-1.0.1.tar.bz2 | arm-linux-gcc 3.4.3 |
Redboot | Version:ecos-2.0 | Provided with source code |
Support download and writing through serial ports | ||
Linux Kernel | Version: 2.6.8 | |
RTC driver, save and restore system time after power off | Provided with test program and source code | |
GPIO driver | Provided with test program and source code | |
PC104 expansion driver | Provided with test program and source code | |
External bus driver | Audio driver | |
Audio driver | Provided with test program and source code | |
LCD driver, support 320*240, 640*480, 800*600, 1024*768 resolution | Provided special LCD with debug service | |
Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
Serial driver | Provided with test program and source code | |
CF card driver | Support large capacity storage CF card | |
Buzzer driver | Provided with test program and source code | |
Ethernet driver | Provided with test program and source code | |
8*8 matrix keypad driver | Provided with test program and source code | |
USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
Watchdog | Provided with test program and source code | |
File System | jffs2 file system | Provided source code |
QT | QT development environment | QT routine |
PC Development Environment | Provided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manual | Convenient for user to next develop |
ARM9 Processor SBC (single board computer) WindowsCE 6.0 Software Features
Bootloader | Download and write Eboot through serial port | Download directly to NorFlash through serial port |
Support user-defined boot logo | 1024*768 resolution, 24 bmp image | |
BSP Source Code | ||
BSP Open Source
| RTC driver, save and restore system time after power off | Provided with test program and source code |
Registry saving,support saving registry information when electricity adjusted | Convenient for user to debug | |
LCD driver, supporting 320*240, 640*480, 800*600, 1024*768 resolution | Provided special LCD with debug service | |
Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
CF card driver | Support large capacity CF card storage | |
AC"97 audio driver | Support double sound channel audio | |
Nic driver, 10/100M self-adaptive,can be expanded gigabit nic | Provided with test program and source code | |
232, 485 serial driver test | Provided with test program and source code | |
support 8*8 matrix keypad,also can used as GPIO | Provided with test program and source code | |
USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
PC Development Environment | Provided with supporting EVC development tools, Wince 5.0 plug-in | Convenient for user to next develop |
ARM9 Processor SBC (single board computer) Technical Support:
• The problems that customer encounter in the process of development on the products• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
EP9315 ARM9 Processor Single Board Computer Order Infomation
Standard accessories1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)1-wire serial line(a trailer two) (5)2-wire serial line with 9 lines (6)1-wire power switch wiring (7) 1-wire audio switch wiring (8) exquisite packing boxItem | Description | |||
---|---|---|---|---|
DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc | |
Tool software | Supporting terminal, writing, download tools | |||
Device manual | Main components' datasheet of back plane | |||
User manual | About all development and use | |||
Image file | Redboot, kernal, image file of file system | |||
Test source code | Test routines and source codes of all interfaces | |||
System source | Include Redboot, kernel, file system and QT source code | |||
Schematic | Back plane's schematic in PDF format | |||
Packaging library | Component packaging library of evaluation board | |||
Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | ||
Device manual | Main components' datasheet of back plane | |||
User manual | About all development and use | |||
Image file | Firstboot, Eboot, NK image file | |||
Test source code | Test routines and source codes of all interfaces | |||
BSP package | Related BSP board-level supporting package | |||
SDK | Related SDK | |||
Schematic | Back plane's schematic in PDF format | |||
Packaging library | Component packaging library of evaluation board | |||
LCD options(another pay) | 4.3' LCD module + 4-wire resistive touch screen +USB cable | |||
5.6' LCD module + 4-wire resistive touch screen +USB cable | ||||
6.4' LCD + 4-wire resistive touch screen + USB cable + inverter | ||||
7' LCD module + 4-wire resistive touch screen +USB cable | ||||
8' LCD module + 4-wire resistive touch screen +USB cable | ||||
10.4' LCD + 4-wire resistive touch screen + USB cable + inverter | ||||
Module options(another pay) | TTL to LVDS module | |||
TTL to VGA module | ||||
Sales hotline | +86-571-87858811, 87858822 |
ARM9 Processor SBC (single board computer) Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.Contact Us
