Embedded TI AM335X ARM9 Cortex-A8 Core-board/module 720MHz 256MB DDR2
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
D/C:
EZ335X-P
Package:
1pc
Model Number:
EZ335X-P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TI AM335X Linux ARM Core Board 720MHzNegotiableMOQ: 1 Piece -
TI AM335X Linux ARM Core\Kernal Board 720MHz Support Linux/Android/WinCENegotiableMOQ: 1 Piece
-
TI AM335X Linux ARM Stamp Board 720MHz Support Linux/Android/WinCENegotiableMOQ: 1 Piece
-
TI AM335X ARM Linux Board 720MHzNegotiableMOQ: 1 Piece
-
New Orange pi AT91SAM9G45CPU ARM CPU Linux Board Support Linux & WinceNegotiableMOQ: 1 Piece
D/C
EZ335X-P
Package
1pc
Model Number
EZ335X-P
Type
Other, ARM Cortex A8
Brand Name
QY
Place of Origin
Zhejiang, China

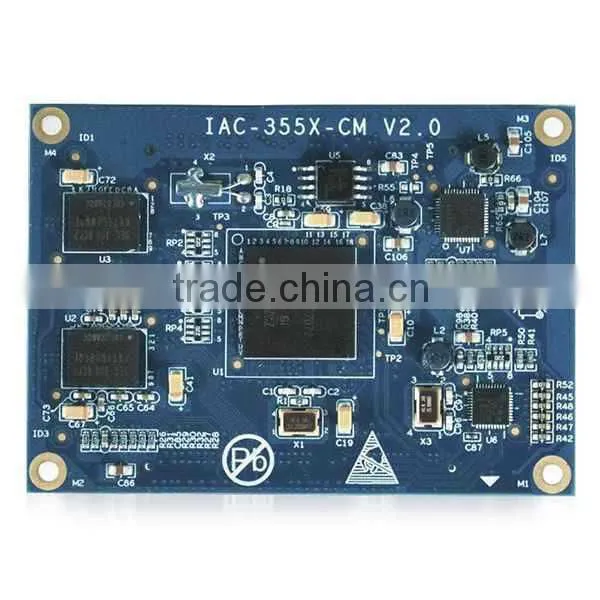

Embedded TI AM335X ARM9 Cortex-A8 core-board/module
TI AM335X ARM Core Board Specifications
Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2*60 Pin 2.0 connectors lead various commonly used interfaces; all AM335x-ARM Cortex-A8 processor is compatible; user can choose different types of processor chip according to need to reduce the cost, and this choice only suitable for batch users..
AM335X Processor:
| ARM CPU | ARM MHz(MAX.) | ARM MIPS(MAX.) | Graphics Acceleration | Other Hardware Acceleration | |
|---|---|---|---|---|---|
| AM3359 | 1 ARM Cortex-A8 | 275 600 720 | 1200 1440 | 1 3D | 2 PRU-ICSS Crypto Accelerator |
| AM3358 | 1 ARM Cortex-A8 | 275 600 500 720 | 1000 1200 1440 | 1 3D | 2 PRU-ICSS Crypto Accelerator |
| AM3357 | 1 ARM Cortex-A8 | 275 600 720 | 550 1200 1440 | 2 PRU-ICSS Crypto Accelerator | |
| AM3356 | 1 ARM Cortex-A8 | 275 600 500 720 | 550 1000 1200 1440 | 2 PRU-ICSS Crypto Accelerator | |
| AM3354 | 1 ARM Cortex-A8 | 275 600 500 720 | 1000 1200 1440 | 1 3D | Crypto Accelerator |
| AM3352 | 1 ARM Cortex-A8 | 275 600 500 720 | 1000 1200 1440 | Crypto Accelerator |
ARM Core Board Technical Support:
• The problems that customer encounter in the process of development on the products• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
TI AM335X Core Board Embedded Order Infomation
| Item | EZ335X-P Cortex-A8 EK | ||
|---|---|---|---|
| Standard accessories | (1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)5-wire RS232 serial lines (5)packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Image file of bootstarp, u-boot, kernel and file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Including bootstrap, u-boot, kernel, file system and QT source code | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| Windows EC 7 | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Firstboot, Eboot, NK image file | ||
| Test source code | Test routines and source codes of all interfaces | ||
| BSP package | Related BSP board-level supporting package | ||
| SDK | Related SDK | ||
| Schematic | Back plane's schematic in PDF format | ||
| Packaging library | Component packaging library of evaluation board | ||
| LCD options(another pay) | 4.3'LCD module + 4-wire resistive touch screen + USB cable | ||
| 5.6'LCD module + 4-wire resistive touch screen + USB cable | |||
| 6.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
| 7'LCD module + 4-wire resistive touch screen + USB cable | |||
| 8'LCD module + 4-wire resistive touch screen + USB cable | |||
| 10.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | 0571-87858811, 87858822 | ||
Cortex-A8 ARM Core Board Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal,
etc.
