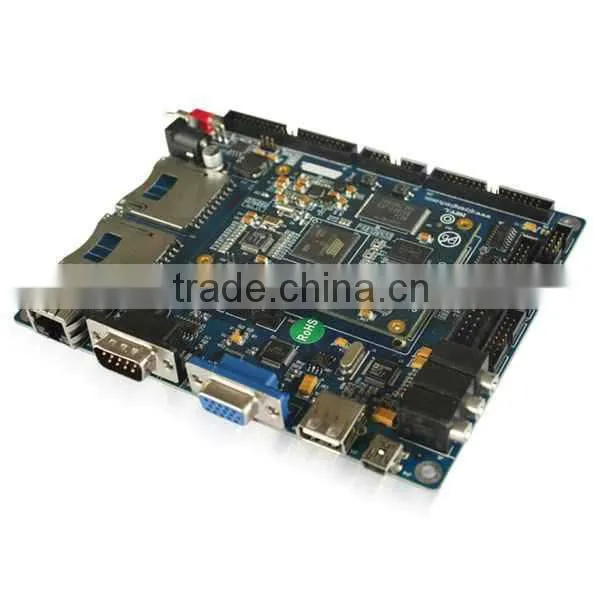

AT91SAM9G45CPU Support Linux & Wince ARM Core Board industrial arm board
- 100000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card
Product Details
D/C: | industrial arm board QY-9G45P | Package: | one set industrial arm board QY-9G45P one package | Model Number: | QY-9G45P |
Type: | Other, Atmel | Brand Name: | QY | Place of Origin: | Zhejiang, China |
Product Description
ARM Core Board Specifications
Core Module is designed by 6-floor; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; 5V dc power supply, low power consumption; B to B(2*100)connectors lead various commonly used interfaces; suitable for customer batch use.
Atmel9G45 ARM Core Board Specifications:
CPU Processor
• ATMEL AT91SAM9G45, ARM926EJ-S core
• 400MHz
DDR RAM Memory
• 128MB DDR2 RAM, 133MHz, 32bit data bus
FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)could change a large capacity or industrial chip according to customer's requirement
Interfaces
• 2*100 pin 0.8mm spacing B to B(the connectors are 350°C high temperature-tested and seismic-tested)
Other Resources
• DM9161 net chip, support 10M/100M self-adaptive Ethernet with MII mode, more compatible than RMII;
• 1.8V, 3.3V, 5.0V voltage input
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30 + QT2.3 / QT4
• WindowsCE 6.0
Software & Technical Support:
• The problems that customer encounter in the process of development on the products• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
ARM Core Board Order Infomation
Item | QY-9G45P | ||
---|---|---|---|
DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
Tool software | Supporting terminal, writing, download tools | ||
Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Bootstarp, u-boot, kernal, image file of file system | ||
Test source code | Test routines and source codes of all interfaces | ||
System source | Include bootstrap, u-boot, kernel, file system and QT source code | ||
Schematic | Back plane's schematic in PDF format | ||
Packaging library | Component packaging library of evaluation board | ||
Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Firstboot, Eboot, NK image file | ||
Test source code | Test routines and source codes of all interfaces | ||
BSP package | Related BSP board-level supporting package | ||
SDK | Related SDK | ||
Schematic | Back plane's schematic in PDF format | ||
Packaging library | Component packaging library of evaluation board | ||
LCD options (another pay) | 4.3' LCD module + 4-wire resistive touch screen +USB cable | ||
5.6' LCD module + 4-wire resistive touch screen +USB cable | |||
6.4' LCD + 4-wire resistive touch screen + USB cable + inverter | |||
7' LCD module + 4-wire resistive touch screen +USB cable | |||
8' LCD module + 4-wire resistive touch screen +USB cable | |||
10.4' LCD + 4-wire resistive touch screen + USB cable + inverter | |||
Module options(another pay) | TTL to LVDS module | ||
TTL to VGA module | |||
Sales hotline | +86-571-87858811, 87858822 |
Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etcWe are a high and new technology enterprise which is specializing in R&D, manufacture and sell embedded computer mainboard with high performance, low power consumption, low cost, small volume, and provides embedded hardware solutions. Over the years we focused on the development and services of embedded ARM industrial control products, which provides an easy-to-use development tools, reference design platform, product solutions of volume production for embedded development engineers. It helps customers to shorten the time from embedded board to products, and improves product quality. Our company is dedicated to become a leading embedded hardware and software supplier.
Custom Service
Cooperation Mode | Based on Core Module Customization | The Whole Board Customization |
---|---|---|
Specification | Customize expanded board based on our core module | Offer complete mainboard customization based on the process platform we choose for you |
Service | Provide device selection, design suggestions, plate type design; Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype; Provide upper development, and the follow-up with long-term technical support, quality tracking service. | Provide device selection, design suggestions, plate type design Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype; Provide upper development, and the follow-up with long-term technical support, quality tracking service. |
Development Cycle | Provide mainboard test usually in 8-10 weeks(no fly line) | Provide mainboard test usually in 2-3 months(no fly line) |
Deliver | Principle diagram, PCB, driver source code, prototype, etc. | Principle diagram, PCB, driver source code, prototype, etc. |
Service Extension(optional) | Offer trial production/batch production, make production process, ensure the quality and delivery time; EMC/MI Test; Perfect quality assurance and after-sales service; Product system, software and hardware upgrades. | Offer trial production/batch production, make production process, ensure the quality and delivery time; EMC/MI Test; Perfect quality assurance and after-sales service; Product system, software and hardware upgrades. |
Expense | Low, according to user's requirements and difficulty level of R&D; The user who choose OEM could return part of R&D costs | High, according to user's requirements and difficulty level of R&D; The user who choose OEM could return part of R&D costs |
Hardware maintenance service
Hardware maintenance service means providing original factory maintenance,maintenance,repairing and recovering product performance for user’s mother board / core board .Including core board,baseboard,LCD,touch screen hardware fault test,electronic device replacement service.
Software and Hardware upgrading service
Software upgrading service means users installing operation system,installing equipment control software,according to customers’ requirement to customize winCE ,Linux OS . Hardware upgrading service means providing hardware upgrading scheme and hardware installing service.
Warranty Service
All parts product warranty period start form the purchase date, and under warranty is free of charge. The following circumstances products, not in warranty scope:
(1) Over the validation date of warranty;
(2) Belong to the user improper use or artificial damage;
(3) Without effective warranty certificate and invoice (can prove the goods in the warranty period excluded);
(4) Delivery product barcode or model not conform to physical commodity.
Contact Us
- Zhejiang Qiyang Intelligent Technology Co., Ltd.
- Contact nameSally Ma
- Phone86-571-87858811-811
- AddressFloor 5,Building 2,No.8,XiYuanYi Road,WestLake Technology Park,HangZhou City Hangzhou,Zhejiang
