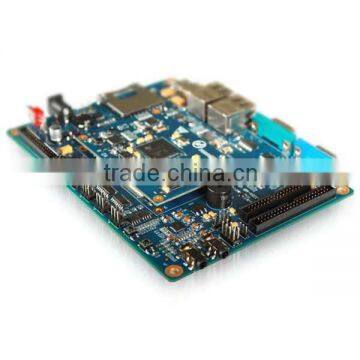

ARM AM335X Development Platform and Core board TI CPU
- 100000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card
Product Details
Model Number: | IAC-335X-KIT | Type: | Other, TI | Brand Name: | QY |
Place of Origin: | China |
Product Description
Specifications
AM335X Development Platform1. TI AM335X, ARM Cortex-A8 core
2. 256MB DDR2 RAM
3. 2MB Data flash
4. 256M Nand Flash
AM335X Development Platform Specifications
Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2 x 100 BtoB connectors lead various commonly used interfaces; The core module is compatible with all AM335x-ARM Cortex-A8 series processors, and the users can choose different types of appropriate processor chip to reduce cost(only for bulk users).
TI AM335X Development Platform Core Module Specifications
Core Module(IAC-335X-CM)Specifications
CPU Processor
• TI AM335X, ARM Cortex-A8 core
• 720MHz
DDR RAM Memory
• 256MB DDR2 RAM, 133MHz, 16bit data bus(The batch can be extended to maximum 512MB)
FLASH Storage
• On-board 2MB Dataflash
• On-board 256M*8bits NandFlash could change a large capacity or industrial chip according to customer's requirement(The batch can be extended to maximum 64G)
Interfaces
• 2*100 B to B connectors
Other Onboard Resources
• AR8035 net chip, support 10M/100M/1000M Ethernet with RGMII mode
• Power management, single 5V input and output voltage of all core module.
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <2W
Support OS
• Linux3.2.0 + QT4
• Android 4.0.3
AM335X Development Platform Core Module Software & Technical Support
No. | Item | Function |
---|---|---|
J3 | Audio interface | Audio input/output |
J4 | Audio output | Double sound channel output |
J5 | Audio input | Double sound channel input |
J6 | ADC interface | 4 AD input |
J7 | LCD interface | LCD screen interface |
J8 | LCD power supply | LCD interface power supply |
J9 | VGA interface | VGA video output |
J10 | Debug serial port | Download, communication |
J11 | COM2/3 | 3-wire serial interface |
J12 | COM4/5 | 3-wire serial interface |
J13 | COM1 | 3-wire serial interface |
J14 | 485 interface | 2-wire RS485 |
J15 | CAN interface | CAN bus |
J16 | USB Device | USB OTG |
J17 | USB host | USB 2.0 host |
J18 | SD card interface | SD/MMC card interface |
J19 | Ethernet interface 1 | 10/100/1000M Ethernet |
J20 | Ethernet interface 2 | 10/100/1000M Ethernet |
J21 | GPIO, SPI interface | Expand peripherals |
J22 | GPMC interface | Expand peripherals |
J23 | Power input interface | Eval. board power input |
J24 | Power interface | 12V power input optional interface |
K1 | Wake-up button | Sleep state activation |
K2 | Reset button | System reset |
S3 | Power switch | Power supply control |
AM335X Development Platform PCB Specification & Size
• 142 x 112.8 x 1.5mm
AM335X Development Platform Working Parameters
• Humidity Range: 5%~ 95%, Non-Condensing
AM335X Development Platform Linux Software Features
No. | Item | Function |
---|---|---|
Cross-compiler | arm-arago-linux-gnueabi.tar.gz | TI official offer |
U-boot | Version: U-boot 1.3.4 | Provided with U-boot source code |
Support writing into DataFlash and NandFlash start | ||
Support the serial writing, SD card, and TFTP network update | ||
Linux Kernel | Version: 3.2.0 | |
RTC driver, save and restore system time after power off | Provided with test program and source code | |
CAN bus driver | Provided with test program and source code | |
Nic driver | Provided with test program and source code | |
Audio driver | Provided with test program and source code | |
LCD driver, supporting 640×480, 800×600, 1024×768, 1280x800 resolution | Provided special LCD with debug service | |
Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
Serial driver | Provided with test program and source code | |
ADC driver | Provided with test program and source code | |
USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
SD card driver | Support large capacity storage SD card | |
File system | ||
UBI File System | Provided with source code | |
QT Routine | ||
QT development environment | QT routine | |
PC Development Environment | Provided with ubuntu 12.04, LinuxOS, VMware 9.0.2 virtual machine and supporting development environment build manual | Convenient for user to next develop |
AM335X Development Platform Software & Technical Support
• The problems that customer encounter in the process of development on the products• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
AM335X Development Platform Order Infomation
Item | IAC-335X-Kit Cortex-A8 EK | ||
---|---|---|---|
Standard accessories | 1)12V/2A power supply (2)1-wire cross serial line (3)CD of DVD development (4)4-wire RS232 serial lines (5)packing box | ||
DVD resources | Linux | Compilers | Cross-compiler arm-arago-linux-gnueabi |
Tool software | Supporting terminal, writing, download tools | ||
Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Image file of MLO, u-boot, kernel and file system | ||
Test source code | Test routines and source codes of all interfaces | ||
System source code | Including bootloader, kernel, kernel, QT source code and madplay | ||
Schematic | Back plane's schematic in PDF format | ||
ubuntu | ubuntu-12.04-desktop-i386 | ||
Android | Tool software | Supporting terminal, writing, download tools, sync software | |
Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Image file of MLO, u-boot, kernel and file system | ||
Source code | Including u-boot, kernel and file system | ||
Schematic | Back plane's schematic in PDF format | ||
LCD options(another pay) | 4.3'LCD module + 4-wire resistive touch screen + USB cable | ||
5.6'LCD module + 4-wire resistive touch screen + USB cable | |||
6.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
7'LCD module + 4-wire resistive touch screen + USB cable | |||
8'LCD module + 4-wire resistive touch screen + USB cable | |||
10.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
Module options(another pay) | TTL to LVDS module | ||
TTL to VGA module | |||
Sales hotline | 0571-87858811, 87858822 |
AM335X Development Platform Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.Contact Us
