ATMEL9263 Low Cost Evaluation Board Linux & Arm Core Board

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai/Ningbo
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	QY-9263K		Type	Other, ATMEL
Brand Name	QY		Place of Origin	Zhejiang, China

Product Description

Specifications

Low Cost Evaluation Board
1.ATMEL AT91SAM9263 CPU
2.200MHz ARM9 processor
3.64MB SDRAM
4.Support SD

Low Cost Evaluation Board Specifications

Core Module is designed by 6-floor PCB; the volume is only card size(80*53mm), together with CPU, SDRAM, NandFlash, DataFLash; using 3.3V dc power supply, low power consumption; B to B(2*100)connectors lead various commonly used interfaces; suitable for the customers those who not plan to design CPU board by themselves next devolop.

Low Cost Evaluation Board Specifications

CPU Processor
• ATMEL AT91SAM9263, ARM926EJ-S Core
• 200MHz

SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM

FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)
• Could change large capacity or industrial chip according to customer's request

Interfaces
• 2*100 pin 0.8mm spacing B to B (the connectors are 350°C high temperature-tested and seismic-tested)

Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 80x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 3.3V Dc power supply, low power consumption, <1W

Support OS
• Linux2.6.30 + QT QT2.3 default/ QT4 has supported
• Windows 5.0, WindowsCE 6.0

Low Cost Evaluation Board Software & Technical Support

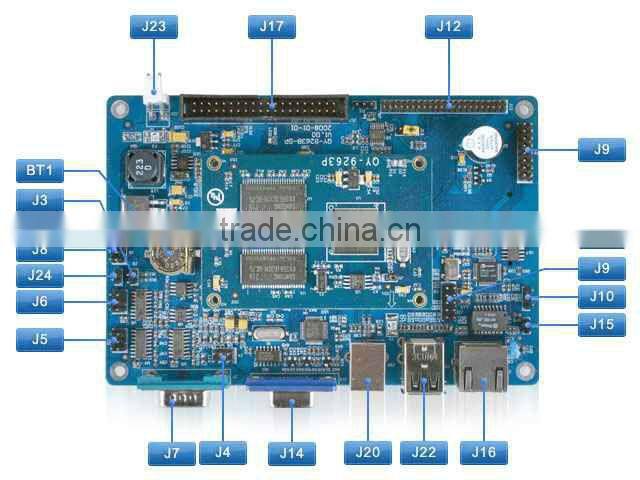

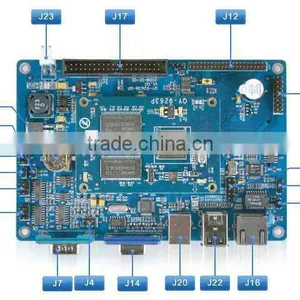

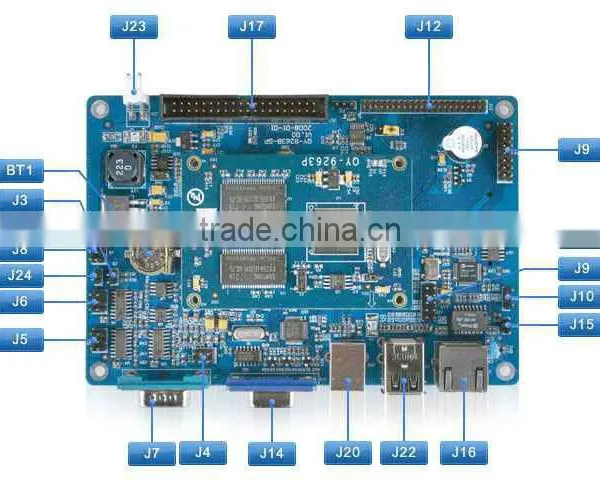

No.	Item	Function
J4	AUDIO interface	Audio input/output
J5	COM1	5-wire RS232 serial port
J6	COM2/3	3-wire RS232 serial port
J7	Debug serial port	Download, communication
J8	485 interface	Development and application of 485 bus
J9	8*8 matrix keypad interface	Matrix keypad interface, can also used as I/O mouth
J10	CAN interface	CAN 2.0
J12	LCD interface	Expand LCD interface, with 4-wire touch screen interface
J14	VGA interface	VGA video output
J16	Ethernet interface	10/100M self-adaptive network
J17	IDE interface	IDE equipment connection
J18	CF card interface (back)	CF card storage application
J19	SD card interface (back)	SD card storage application
J20	USB Device	Use for program download, USB communication
J22	USB Host *2	Use for USB host application
J23	Power interface	+12V power supply, support +6 ~+25V wide range voltage
J24	JTAG interface	Simulation, debugging
K1	Reset button	System reset
BT1	Backup battery	System clock power supply

Software Features

Cross-compiler	arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2	arm-linux-gcc 4.2
U-boot	Version: U-boot 1.3.4	Provided with bootstrap, U-boot source code
	Support writing into DataFlash or NandFlash start
	Support SAM-BA software with USB writing and TFTP network update
Linux Kernel	Version: 2.6.30
	RTC driver, save and restore system time after power off	Provided with test program and source code
	CAN driver	Provided with test program and source code
	Ethernet driver	Provided with test program and source code
	Audio driver	Provided with test program and source code
	LCD driver, supporting 320240, 640480, 800600,1024768 resolution	Provided special LCD with debug service
	Touch screen driver, supporting 4-wire resistive screen	Provided with test program and source code
	Serial driver	Provided with test program and source code
	Buzzer driver	Provided with test program and source code
	GPIO driver	Provided with test program and source code
	8*8 matrix keypad driver	Provided with test program and source code
	USB driver	Support various USB external devices, provided with debug service
	IDE driver	Support various IDE equipment
	CF card driver	Support large capacity CF card
	SD card driver	Support large capacity SD card storage
File System	Jffs2 file system	Provided with source code
PC Development Environment	Provided ubuntu 10.10 development environment and VM7.1.4 virtual machine	Provided with development environment build manual

WindowsCE 6.0 Software Features

Bootloader	support writing into DataFlash or NandFlash start	Optional
Bootloader	support user-defined boot logo	Up to 1024*768 resolution 24 bmp image
BSP Source Code
BSP Open Source	RTC diver, save and restore system time after power off	Provided with test program and source code
	Registry saving, support saving registry information when electricity adjusted	Convenient for user to debug
	LCD driver, support 320240, 640480, 800600, 1024768 resolution	Provided special LCD with debug service
	Touch screen driver, support 4-wire resistive screen	Provided with test program and source code
	SD card driver, support 2-wire SD card	Biggest support 4G
	Audio driver, support audio input/output and MIC input	Provided with test program and source code
	Nic driver, 10/100M self-adaptive, can be expanded gigabit nic	Provided with test program and source code
	CF card driver	Support large capacity CF card
	IDE driver	Support various IDE equipment
	Serial driver	Provided with 232, 485 test program and source code
	support 8*8 matrix keypad, also can used as GPIO	Provided with test program and source code
	USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc.	According to user's selection, debug driver
PC Development Environment	Wince6.0: Provided with supporting VS.NET 2005 development tools, Wince 6.0 plug-in Wince5.0: Provided with supporting EVC development tools, Wince 5.0 plug-in	Convenient for user to next develop

Order Infomation

Item	QY-9263K
Standard accessories	(1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)4-wire RS232 serial line (5) USB cable (6)exquisite packing box
CD resources	Linux	Compilers	Cross-compiler arm-linux-gcc
		Tool software	Supporting terminal, writing, download tools
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Bootstarp, u-boot, kernal, image file of file system
		Test source code	Test routines and source codes of all interfaces
		System source code	Including bootstrap, u-boot, kernel, file system and QT source code
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
	Windows CE	Tool software	Supporting terminal, writing, download tools, sync software
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Firstboot, Eboot, NK image file
		Test source code	Test routines and source codes of all interfaces
		BSP package	Related BSP board-level supporting package
		SDK	Related SDK
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
LCDoptions	4.3' LCD module + 4-wire resistive touch screen +USB cable
	5.6' LCD module + 4-wire resistive touch screen +USB cable
	6.4' LCD + 4-wire resistive touch screen + USB cable + inverter
	7' LCD module + 4-wire resistive touch screen +USB cable
	8' LCD module + 4-wire resistive touch screen + USB cable
	10.4' LCD+ 4-wire resistive touch screen + USB cable + inverter
Module options	TTL to LVDS module
Module options	TTL to VGA module
Sales hotline	+86-571-87858811, 87858822

Low Cost Evaluation Board Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
