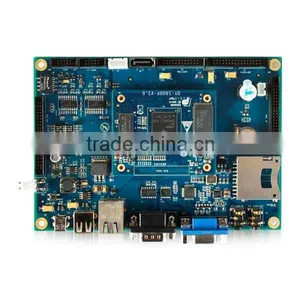

TI AM1808 Embedded ARM Starter Kit Linux 456MHz128MB SDRAM 4gb Laptop Ram Memory

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shanghai/Ningbo
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

D/C	4gb laptop ram memory QY-1808EK	Package	one set 4gb laptop ram memory QY-1808EK a package
Model Number	QY-1808EK	Type	Other, TI ARM development board/kit, 4gb laptop ram memory
Brand Name	QY	Place of Origin	Zhejiang, China

Product Description

TI Embedded ARM Starter kit Linux specifications

Core Module is designed by six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance;together with CPU, DDR2, NandFlash, PHY network chip, crystal oscillator etc.Through the high quality B2B connector leading to 200 signal pin, which is fully extended all the hardware resources of AM1808, the user can reuse pins to combine different interfaces, and customize the actual needs of the base board.

Embedded ARM Starter kit Linux Core Module Specifications

CPU Processor
• TI AM1808 CPU, ARM926EJ-S Core
• 456MHz

SDRAM Memory
• 128MB SDRAM

FLASH Storage
• On-board 128M*8bits NandFlash(could change a large capacity or industrial chip according to customer's requirement)

Interfaces
• 2 pieces 2*50PIN B2B connectors: simple, convenient, high reliability

Other Onboard Resources
• On-board LAN8720 network chip, support 10M/100M Ethernet with MII mode

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5v Dc power supply, low power consumption, <2W

Support OS
• Linux2.6.33
• WindowsCE 6.0

Embedded ARM Starter kit Linux Software & Technical Support

No.	Item	Function
J3	AD/DA-digital quantity extension interface	GPIO SPI extension
J5	PRU interface	2 PRU real time units, can be extended to 8 serial ports
J6	SATA interface	External SATA keyboard,etc.
J7	SATA power supply interface	SATA keyboard power supply
J8	EMI bus interface	Expand SRAM and other peripherals
J9	COM0 serial interface	Serial port 0
J10	COM1 serial interface	RS232, support flow control/isolation
J11	COM2 serial interface	RS232,support flow control/isolation
J12	USB0 interface	USB 2.0 OTG interface
J13	Network interface	10M/100M adaptive full duplex
J14	USB1 interface	USB 1.1 HOST interface
J15	SD card interface	SD card storage
J16	Audio output interface	Linear audio output
J17	Audio input interface	Linear audio input
J18	LCD interface	LCD screen interface
J19	LCD power supply	LCD interface power supply
J20	VGA interface	Standard VGA output
J22	Power input interface	Eval. board power input
S1	Dial switch	Boot mode
BT1	Backup battery	System clock power supply
BZ1	Buzzer	Alarm prompt device

Embedded ARM Starter kit Linux PCB Specification & Size

• Using four floors of PCB high precision process
• 142 x 112 x 1.5mm

Embedded ARM Starter kit Linux Working Parameters

• Working temperature: -20°C~ 70°C(batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Embedded ARM Starter kit Linux Software Features

Cross-compiler	arm-arago-linux-gnueabi.tar.gz	arm-arago-linux-gnueabi-gcc 4.5
U-boot	U-boot	Provided with bootloader source code
	Support writing into NandFlash start
	Support SAM-BA software with usb writing and TFTP network update
Linux Kernel	Version: 2.6.33
	RTC driver, save and restore system time after power off	Provided with test program and source code
	SPI driver	Provided with test program and source code
	EBI driver	Provided with test program and source code
	I2C driver	Provided with test program and source code
	Audio driver	Provided with test program and source code
	ADC driver	Provided with test program and source code
	Serial driver	Provided with test program and source code
	Buzzer driver	Provided with test program and source code
	GPIO driver	Provided with test program and source code
	USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc.	Support various USB external devices, provided with debug service
	SD card driver	Support large capacity storage SD card
File System	Jffs2 file system	Provided source code
PC Development Environment	Provided with ubuntu 12.04 Linux OS, VMware 9.0.2 virtual machine and supporting development environment build manual	Convenient for user to next develop

Embedded ARM Starter kit Linux WindowsCE 6.0 Software Features

Bootloader	Support writing into NandFlash start
BSP(Open Source)	RTC driver, save and restore system time after power off	Provided with test program and source code
	Registry saving, support saving registry information when electricity adjusted	Convenient for user to debug
	SD card driver	Largest capacity support 4G
	Audio driver, support audio input/output and MIC input	Provided with test program and source code
	Nic driver, 10/100M self-adaptive, can be expanded gigabit nic	Provided with test program and source code
	IO interruption	Provided with test program and source code
	Buzzer driver	Provided with test program and source code
	SPI driver	Provided with test program and source code
	232, 485 serial driver test	Provided with test program and source code
	USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc.	Support various USB external devices, provided with debug service
PC Development Environment	Provided with supporting EVC development tools, Wince 6.0 plug-in	Convenient for user to next develop

Embedded ARM Starter kit Linux Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

Embedded ARM Starter kit Linux Order Infomation

Item

QY-1808EK

Standard accessories

1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)2-wire RS232 serial lines (5)1 wire USB download cable (6)packing box

DVD resources

Linux

Compilers

Cross-compiler arm-arago-linux-gnueabi-gcc

Tool software

Supporting terminal, writing, download tools

Device manual

Main components' datasheet of back plane

User manual

About all development and use

Image file

Image file of Bootloader,kernel and file system

Test source code

Test routines and source codes of all interfaces

System source code

Including Bootloader, kernel, file system and QT source code

Schematic

Back plane's schematic in PDF format

Windows CE

Tool software

Supporting terminal, writing, download tools, sync software

Device manual

Main components' datasheet of back plane

User manual

About all development and use

Image file

Firstboot, Eboot, NK image file

Test source code

Test routines and source codes of all interfaces

BSP package

Related BSP board-level supporting package

SDK

Related SDK

Schematic

Back plane's schematic in PDF format

Module options(another pay)

TTL to LVDS module

TTL to VGA module

Sales hotline

+86-571-87858811, 87858822

Embedded ARM Starter kit Linux Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
