LGT-100 In-situ Laser Gas Analyzer , CE, EX Certificates
Industrial Process Monitoring, Tail Gas, Exhaust Gas, Laser Gas Analyzer
Pls visit our website:

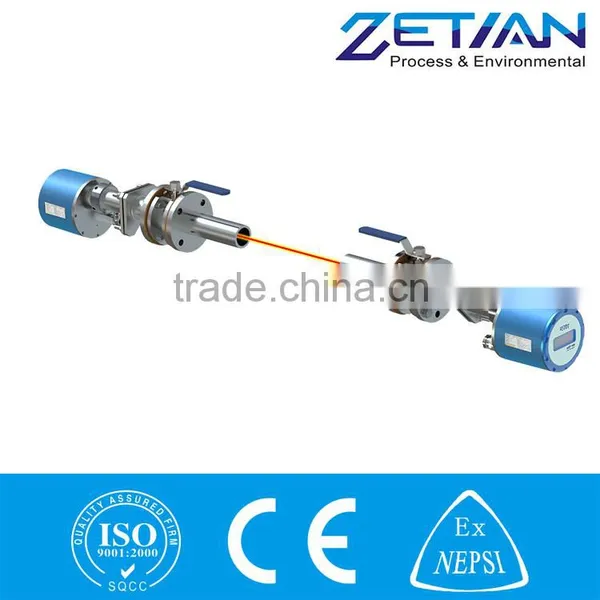

LGT-100 in-situ gas analyzer is a flameproof in-situ probe-type tunable laser gas analyzer for industrial online analysis and environmental on-line monitoring, which can online analyze O2, CO, NH3, CO2, CH4, H2O, HCl, HF and other gases in various complex conditions (NOTE: A single analyzer can only analyze 1~2 components). Measuring concentration range from major to trace.
Technical Characteristics
- High selectivity
TDLAS is high resolution spectrum technology, due to the "fingerprint" characteristics of the spectrum, it is not affected
by the interference of other gases. This feature compared with other methods molecularhas obvious advantages
- High versatility
TDLAS is an effective general technology to all activist withinfrared absorption. Only need to change laser and standard
gas, the same instruments can be convenient to measure the other components. Based on this characteristic, it can be
easily changed to multi-component measurement instrument.
- High sensitivity
TDLAS has the advantages of rapid response speed and high sensitivity. In the case of not losing sensitivity, its time
resolution can be found in ms level.

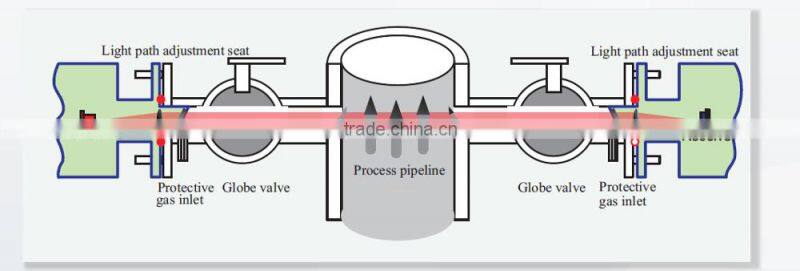

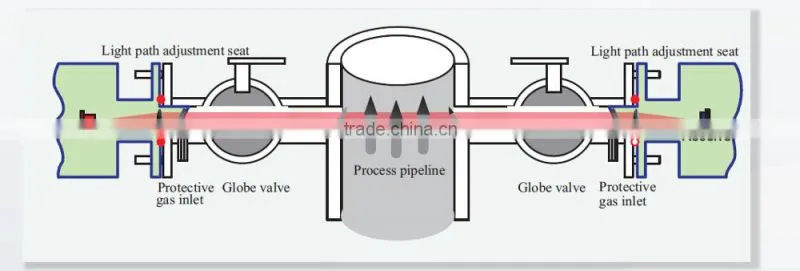

System Configuration
Features
- Easy optical path adjusting, XY direction non-coupling adjusting.
- Small drift, long maintenance period, drift ≤ 1%F.S./half year.
- "Single line" spectrum technology, free from interference of background gas.
- Integrated structure design, high stability and reliability.
- Integrated flameproof structure, consuming less purge gas compared with positive-pressure mode.
- In-situ measurement without pretreatment system avoids adsorption, blockage and damage, reduces cost.
Applications
Apply to converter gas recovery gas analysis, CDQ circulating gas analysis; oxygen measuring electric fishing coke oven gas after analysis; pulverized coal injection gas analysis; ammonia escaping gas analysis in the cement industry; trace CO detection and analysis electricity, cement, environmental protection; HCl and HF trace analysis in environmental protection and chemical industry
1. Whole instrument OEM & ODM
2. Module parts OEM & ODM
3. Flexible cooperation mode: retail, wholesale, distributors
4. Environmental & industrial monitoring solutions
