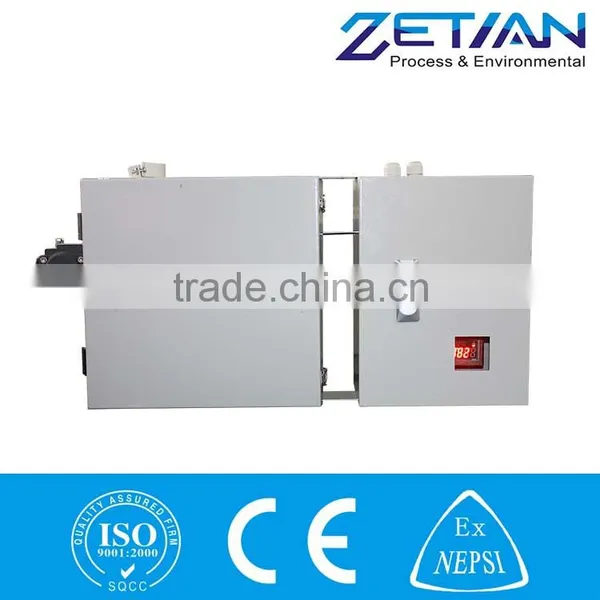

GSP-200 Gas Sampling Probe (High-temperature) for CEMS
Pls visit our web:
GSP-200 high temperature sampling probe is an unique design product for the flue gas containing high dust and NH3HSO4 at temperatures below 190ºCcrystalline solid cause clogging of piping in the field of escaping ammonia. It is applied to a variety of working conditions (high temperature, high humidity, high dust, high corrosion, etc.), supported with a variety of sampling tube, filter, heating units, etc..It has the feature of large filter area and capacity, good air tightness, high filtration precision, leak-proof design, low gas resistance; high precision temperature control, temperature overload protection, reliable operation, fast response, easy installation and maintenance.
Specification
| Sampling Temperature | ≤600ºC |
| Sampling chamber heating temperature | 120±10ºC |
| Filtration Precision | 2μm |
| Temperature Accuracy | ±0.5ºC |
| Working Temperature | -10ºC~+60ºC |
| Insulation Resistance | ≥20MΩ |
| Leakage Current | ≤5mA |
| Dielectric Strength | GB 6587.7 |
| Blowback Gas Source | (0.4~0.8)MPa N2, clean instrument air |
Features
- Titanium alloy filter provides high corrosion resistance in high humidity, high dust environment
- Unique internal structure design effectively reduces the dead space of the sample gas
- Filter uses a sintered alloy to filter 2μm and more dust particles and small gas resistance
- Efficient inside and outside blowback structure design can effectively remove the dust, avoid congestion, reduce daily maintenance
Applications
Apply to continuous acquisition of exhaust gas samples after the combustion process, typically high dust and moisture content of the sample gas collection in power plant flue gas, cement production process
