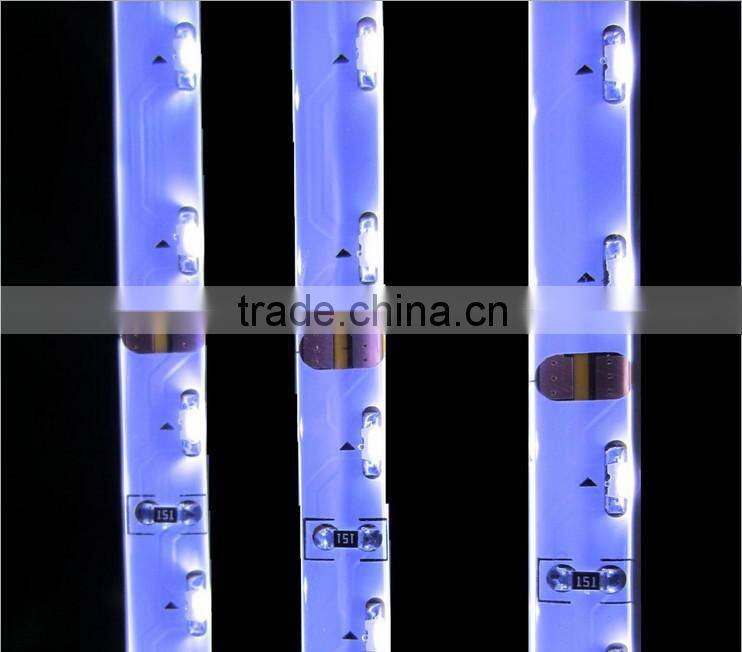

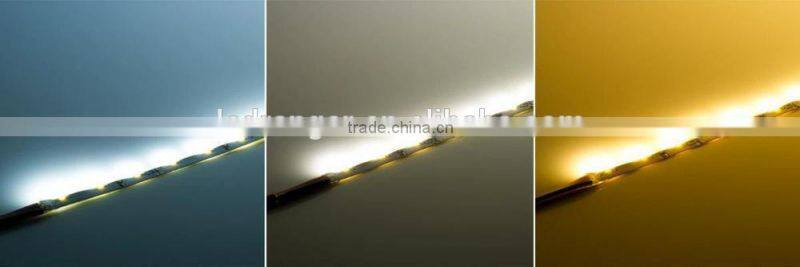

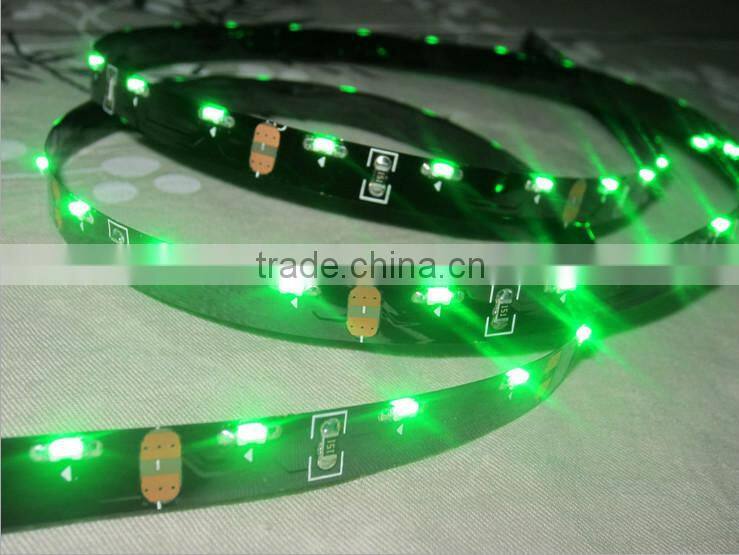

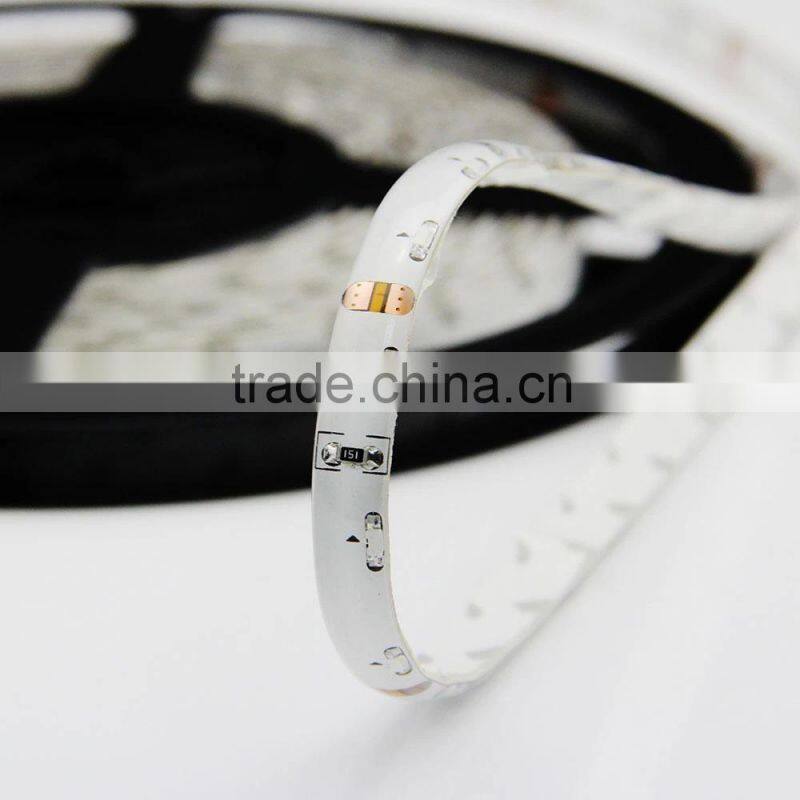

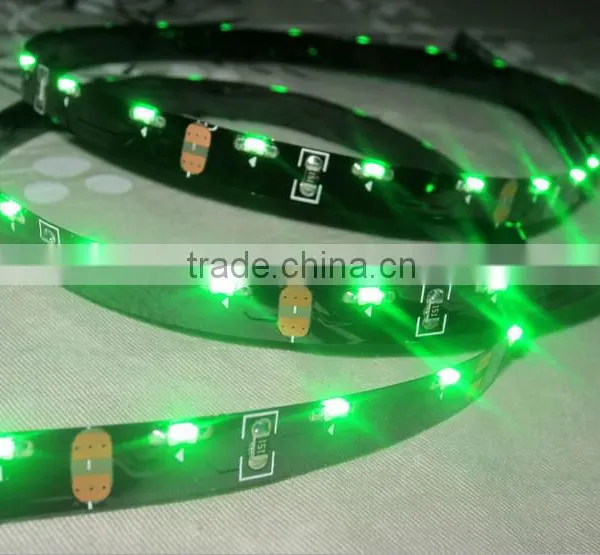

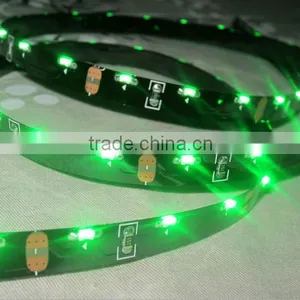

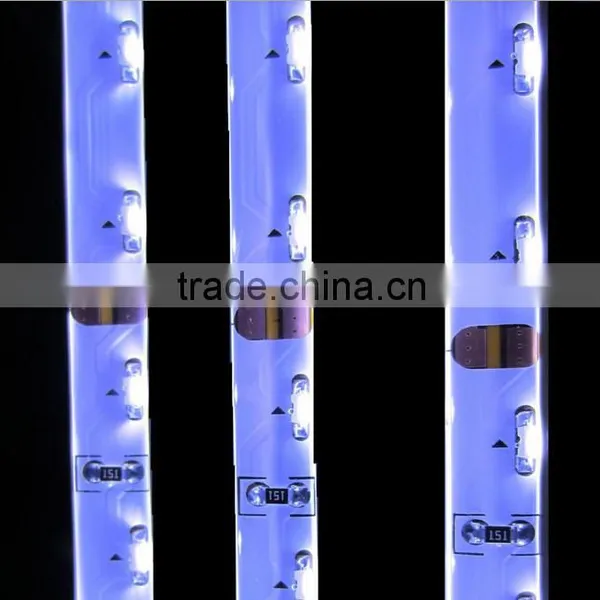

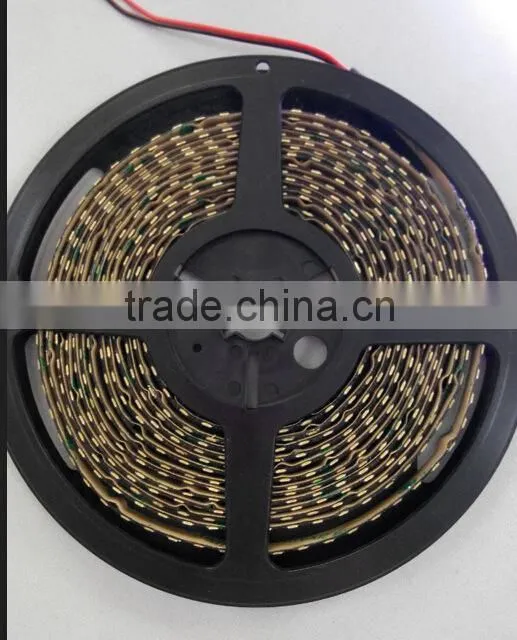

SMD335 Slide LED strip, 5mm,8mm PCB Width, 30/60/96/120LEDs per meter Available
Specifications Description:
Single size: 1000mm * 8mm, 1000mm * 3mm, 1000mm * 5mm, 1000mm * 6mm
Operating voltage: DC 12V
Working current: 340-380mA.
Lamp beads Power: 0.05W-0.08W / LED
LED viewing angle: 120 degrees.
Lamp beads life: 50000H
Waterproof: IP65 (per Epoxy waterproof), IP66 (waterproof casing), IP68 (Epoxy waterproof casing)

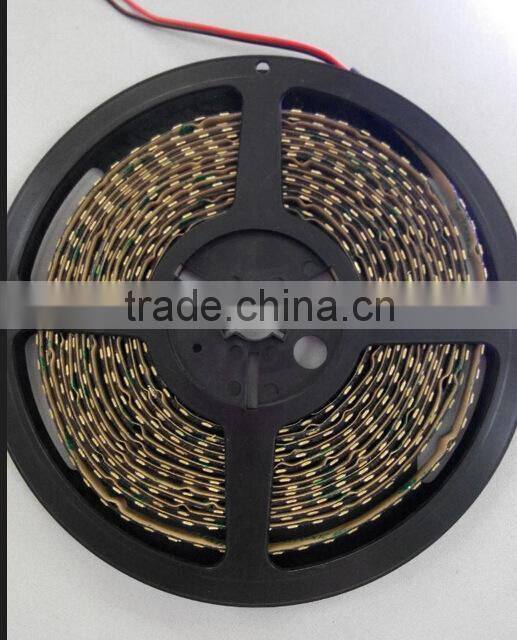

Package: 5 meters per roll, per roll of anti-static bag, external carton.
Applications: advertising light boxes; lighting project; home decoration; other special lighting situations;
Limit parameter (Ta = 25 ° C):
5 m / roll
Notes: 1, flux measurements allow a tolerance of ± 15%. 2, LED luminous flux, wavelength, color temperature parameters can be specified to produce according to the customer.
Instructions:
1, wiring instructions:
Red, yellow, blue, green, white color waterproof strip light: Product leads to two power cords, one red, one black, wire diameter is 22AWG, length 150MM. Red wire to power positive level, the black wire to the negative power. If you use the controller, the red line then the controller output positive level, then the controller output negative black.
2. Installation Instructions:
Back of the product affixed with 3M double sided tape. Simply tear when the product is installed on top of double-sided adhesive protective paper, stick in position to be installed.
3. Installation Notes:
1), according to the wiring diagram correct wiring.
2), note that the operating parameters of the product can not exceed the limit specified parameter table.
3), the product installation surface must be flat and clean. Otherwise the product will fall off.
4) When installing the product just to avoid the bend LED or other components position, lest damage easily products, affect the life of the product.
5), product installation and use anti-static process, please note, not allowed to touch with a sharp product.
6), can not contact with acid, alkali and other corrosive chemicals, not near the fire.
7), the minimum bend radius greater than 30MM, when bending installed to avoid excessive force.
