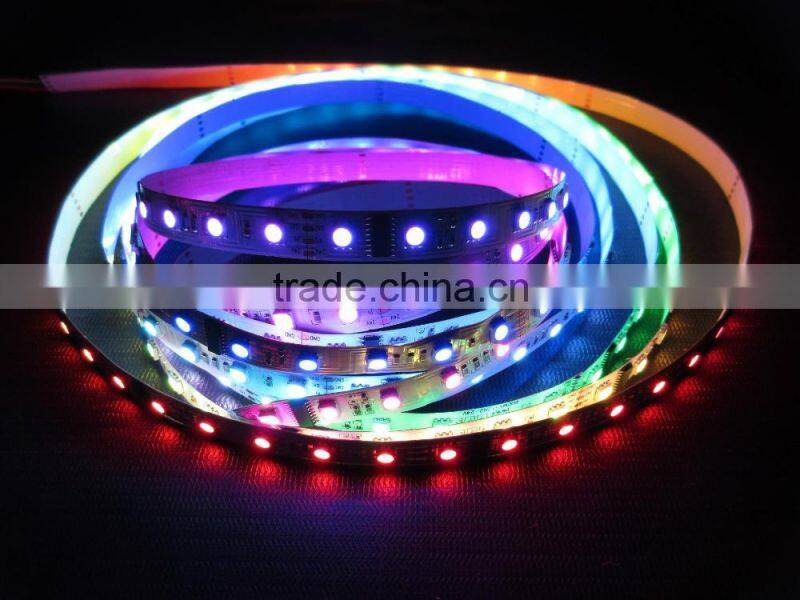

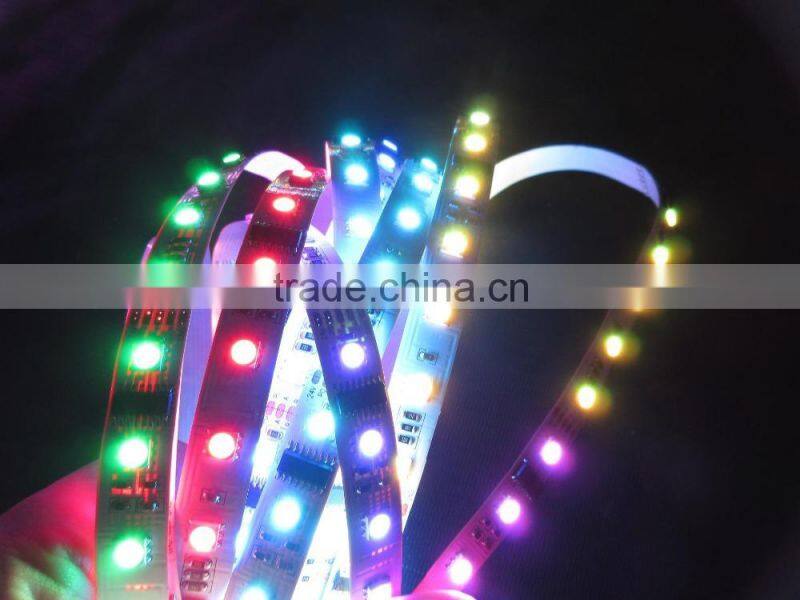

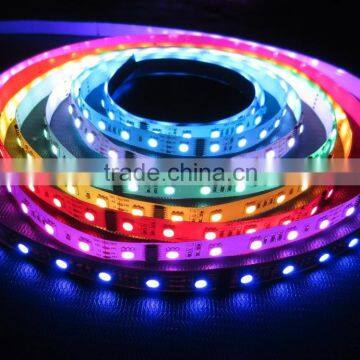

DC24V dmx512 60LEDs, Addressable Flex LED Strip 5050 RGB SMD
Product parameters:
light source: SMD 5050 LED;
PCB : FPCB;
chip: Taiwan chip,
IC Type: MAX485 (60 per meter IC)
Gray levels: 256, (1 meter 10 pixels);
LED quantity: 60 light / m;
Viewing angle: 120 °;
Color: color, rg b can be adjusted; Standard Operating Voltage: DC 24V; Power: 14.5W ± 10% / m;
Waterproof: not waterproof, epoxy (IP65), the casing (IP67), solid plastic irrigation tube (IP68);
FPCB board Size: Width: 12 mm, thickness: 2.5mm;
FPCB color: white, yellow, black (except for black, yellow outside need to order);
Packing: 5 m / roll, static bag package;
Weight: 520g / roll;
packing: 50 rolls / box Box Size: 450 * 330 * 310 (mm), Weight: 27KG;
The company can provide supporting Symphony controller and power supply
1, the control principle: a IC control two LED form a loop (a set), the controller IC by controlling the inside of FPCB control circuit to control the LED lights change different effects; such as blinking, chasing, jumping, Happy clockwise, counterclockwise Happy, Happy monochrome, color Happy, single chase from start to finish, running water, simulated lightning; changes in light of the effect of this section is not limited to the current controller built-in 94 kinds of effects can be based on customer needs , the preparation of their own; can be arranged in the form of the display screen, characters, letters, pictures, animations, and the like.
2, environmental safety: the use of high-quality highlight SMD 5050 LED. Has small power consumption, generate less heat, glare, impact resistance and other characteristics. Low voltage DC 5V, 24V 12-volt power supply, high security and reliability.
3, rich and varied colors can be adjusted through the controller according to the customer.
4, long life: average life expectancy of 50,000 hours.
5, cutting, welding convenient free: Each group LED can form a loop, you can cut off any tangent and welding to meet customer requirements demand a variety of light along the length of the bar top.
6, soft: the soft FPCB board as a substrate, free docking, bending, cutting and fixed to unsmooth surface.
7, light, thin: suitable for installation in narrow space inside
8.
Three data lines, two power lines, DMX512IC built (MAX485 differential), 12MM wide white plate, 256 gray, can be controlled via DMX protocol, achieve any effect, with address programming.
---- Scope:
Polygon walls 1, hotel / club / KTV and other places of drop ceiling line, decorative heighten the atmosphere;
2, buildings, advertising wall signs, festivals and other decorative areas of the city since the US / lighting effects;
3, home decorative lighting (staircase, door frames, bar, wine cabinet, wardrobe, TV cabinet, DIY home decoration ...);
4, car (body, vehicle ...);
5, building iconic building castles, bridges, parks and other profile sketch, from the decorative lighting effect.
6, lighting signal (such as various light indication logo)
7, Edge-Lighting of transparent or diffused materials
8, support underwater lighting project
9, canopy and bridge edge arch / amusement park / theater / aircraft cabin lighting
LED pixel, led strip, such as digital led strip(2811,2812, 1903, APA102), Sk6812 RGB led strip , LED Advertising Signage Illumination, as we believe it’s better to do a few things well. With six production lines boasting SMT machines from Japan, we make up to 150,000 units monthly—all of which are CE- and RoHS- marked. Our lead times are as fast as five days. Orders are typically filled in 10-15 days.
1) Payment: BY T/T or Western Union or Paypal
2) lead time:10-15 working days, subject to the order quantity .
3) Delivery ways: DHL ,Fedex ,TNT UPS,EMS door to door service,by sea,by air,etc.
4) 2 years warrenty since the date of purchase our LED products.
1. We accept small orders
2. Customer-made lighting color,customer design is available
3. Fast delivery-standard led modules are in stock
4. 24h serve for you
