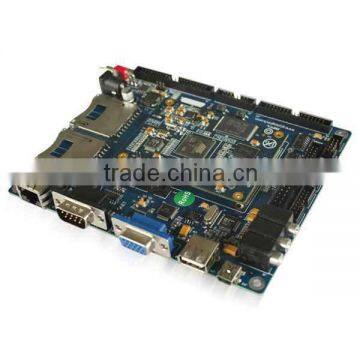

ATMEL AT91SAM9G45 Support Linux/WinCE ARM Developer Board

Name: ATMEL AT91SAM9G45 Support Linux/WinCE ARM Developer Board
Brand: QY
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shanghai/ningbo
Payment Terms:T/T L/C D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

QY-9G45EK

Product Description

ARM Developer Board Specifications

Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; B to B(2*100)connectors lead various commonly used interfaces; suitable for customer batch use.

Evaluation Board is a general standard reference design board for QY-9G45P, with commonly used interfaces, such as TFT-LCD, touch screen, VGA, camera, matrix keypad, external bus interface, SPI, PWM, high-speed USB HOSTDevice, SD card, RS232485 serial port, audio, MIC, etc.; support +6V~+25V wide range voltage power supply; can provide a complete design material for user to develop or custmize.

ARM Developer Board Specification

CPU Processor
• ATMEL AT91SAM9G45, ARM926EJ-S Core
• 400MHz

DDR RAM Memory
• 128MB DDR2 RAM, 133MHz, 32bit data bus

FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)could change a large capacity or industrial chip according to customer's requirement

Interfaces
• 2*100 pin 0.8mm spacing B to B(the connectors are 350°C high temperature-tested and seismic-tested)

Other Onboard Resources
• DM9161 net chip, support 10M/100M Ethernet with MII mode, more compatible than RMII;
• 1.8V, 3.3V, 5.0V voltage input

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5v Dc power supply, low power consumption, <1W

Support OS
• Linux2.6.30 + QT2.3/QT4
• WindowsCE 6.0

ARM Developer Board software & Technical Support

Item	Content	Function
Cross-compiler	arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2	arm-linux-gcc 4.2
U-boot	Version: U-boot 1.3.4	Provided with bootstrap, U-boot source code
	Support writing into DataFlash and NandFlash start
	Support SAM-BA software with usb writing and TFTP network update
Linux Kernel	Version: 2.6.30
	RTC driver, save and restore system time after power off	Provided with test program and source code
	SPI driver	Provided with test program and source code
	EBI driver	Provided with test program and source code
	I2C driver	Provided with test program and source code
	Audio driver	Provided with test program and source code
	LCD driver, supporting 320240, 640480, 800480, 800600, 1024*768 resolution	Provided special LCD with debug service
	Touch screen driver, supporting 4-wire resistive screen	Provided with test program and source code
	Serial driver	Provided with test program and source code
	PWM driver	Provided with test program and source code
	Buzzer driver	Provided with test program and source code
	GPIO driver	Provided with test program and source code
	8*8 matrix keypad driver	Provided with test program and source code
	USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc.	Support various USB external devices, provided with debug service
	SD card driver	Support large capacity storage SD card
File System	Jffs2 file system	Provided with source code
QT Routine	QT development environment	QT routine
PC Development Environment	Provided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manual	Convenient for user to next develop

Linux Software Features

WindowsCE 6.0 Software Features

Bootloader	Support writing into DataFlash and NandFlash start	Optional
Bootloader	Support user-defined boot logo	Up to 1024*768 resolution 24 bmp image
BSP Source Code
BSP Open Source	RTC diver, save and restore system time after power off;	Provided with test program and source code
	Registry saving,support saving registry information when electricity adjusted;	Convenient for user to debug

	LCD driver, support 320240, 640480, 800480, 800600, 1024*768 resolution;	Provided special LCD with debug service
	Touch screen driver, support 4-wire resistive screen;	Provided with test program and source code
	SD card driver, support 2-line SD card;	Biggest support 4G
	Audio driver, support audio input/output and MIC input;	Provided with test program and source code
	Nic driver, 10/100M self-adaptive, can be expanded gigabit nic;	Provided with test program and source code
	PWM driver	Provided with test program and source code
	I2C driver	Provided with test program and source code
	SPI driver	Provided with test program and source code
	232, 485 serial driver test	Provided with test program and source code
	Support 8*8 matrix keypad, also is GPIO	Provided with test program and source code
	USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc.	Support various USB external devices, provided with debug service
PC Development Environment	Provided with supporting VS.NET 2005 development tools, Wince 6.0 plug-in	Convenient for user to next develop

ARM Developer Board Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

Order Information

Item	QY-9G45EK
Standard accessories	1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)4-wire RS232 serial line (5)miniUSB cable (6)exquisite packing box
DVD resources	Linux	Compilers	Cross-compiler arm-linux-gcc
		Tool software	Supporting terminal, writing, download tools
		Device manual	Main component's datasheet of back plane
		User manual	About all development and use
		Image file	Bootstarp, u-boot, kernal, image file of file system
		Test source code	Test routines and source codes of all interfaces
		System source code	Including bootstrap, u-boot, kernel, file system and QT source code
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
	Windows CE	Tool software	Supporting terminal, writing, download tools, sync software
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Firstboot, Eboot, NK image file
		Test source code	Test routines and source codes of all interfaces
		BSP package	Related BSP board-level supporting package
		SDK	Related SDK
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
LCD options(another pay)	4.3' LCD module + 4-wire resistive touch screen + USB cable
	5.6' LCD module + 4-wire resistive touch screen + USB cable
	6.4' LCD+ 4-wire resistive touch screen + USB cable + inverter
	7' LCD module + 4-wire resistive touch screen + USB cable
	8' LCD module + 4-wire resistive touch screen + USB cable
	10.4' LCD+ 4-wire resistive touch screen + USB cable + inverter
Module options(another pay)	TTL to LVDS module
Module options(another pay)	TTL to VGA module
Sales hotline	+86-571-87858811, 87858822
