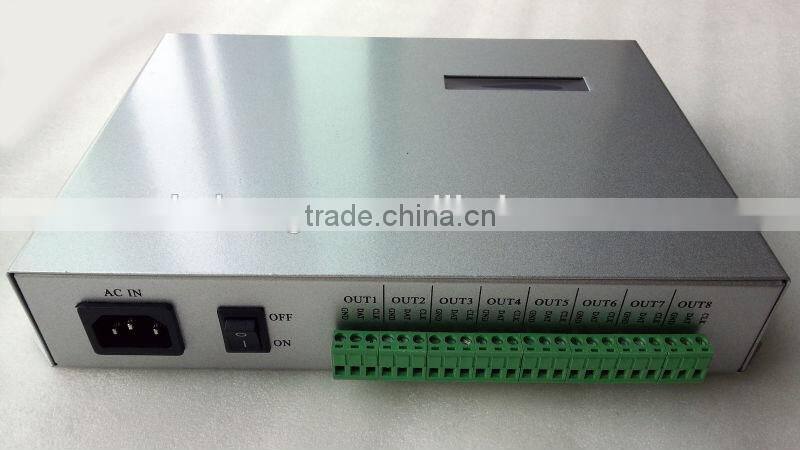

Help CenterWS 2801 Programmable Flexible 5050 LED Strip for Infinity Mirror, T-1000S Controller
Related Products
-
5V 60LEDs 60 Pixels per Meter APA104. 10MM PCB,256 Gray Grade. APA104US$ 6.5 - 23.5MOQ: 5 Meters -
APA102 LED Pixel Board, Single White, 6000-6500K Programmable LEDs DotsUS$ 0.22 - 0.25MOQ: 100 Pieces
-
Side Emitting LED Strip Light With IC Control, 60LEDs, 60LEDs Available. 10mm FPCB DV5VUS$ 13.5 - 19.5MOQ: 5 Meters
-
TLS3001 32LEDs/32 Pixels per Meter,4096 Gray Grade, 5050 Flex StripUS$ 12 - 14MOQ: 5 Meters
-
WS2811 DC12V 30 LEDs 10 Pixels 5050 RGB LED Strip,programmable Rgb Led StripUS$ 5.5 - 6.5MOQ: 5 Meters

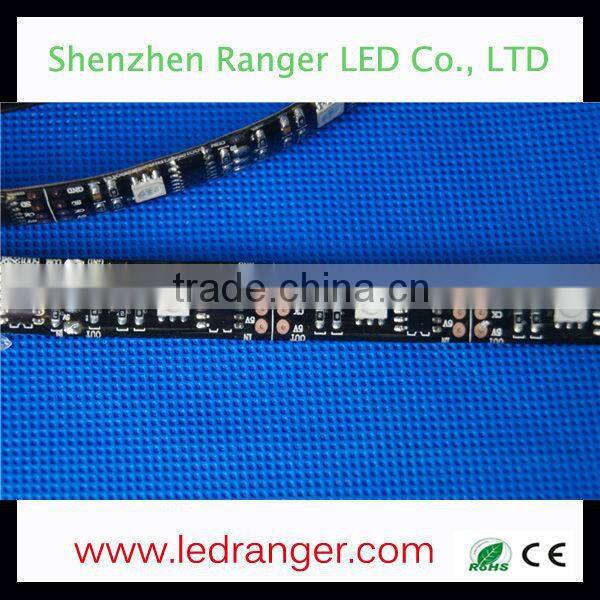

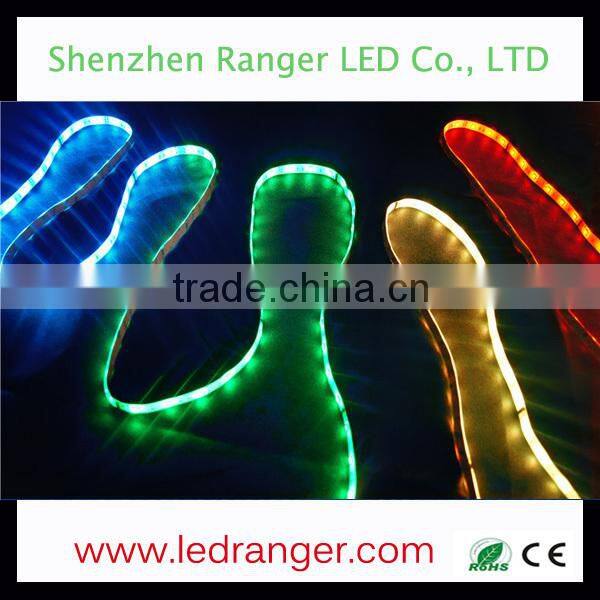

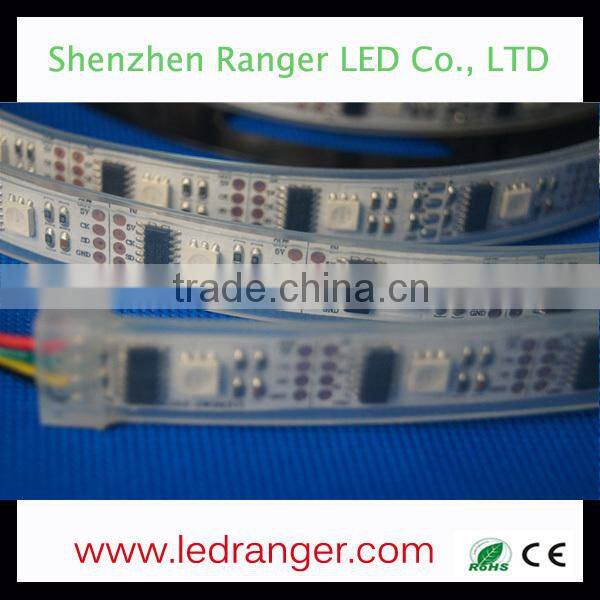

LED Light Strip Light WS2801 Flexible 5050 LED strip for Infinity Mirror
| Items | Parameter |
| IC Type | WS2801 |
| LED Type | 5050 SMD RGB LED |
| Work Voltage | DC5V |
| LED Number | 32pcs 5050 SMD RGB LED each meter, 160LEDs/roll |
| IC Number | 32pcs WS2801 IC per meter, 160IC/roll |
| Strip Length | 5m/roll |
| Grey Scale | 256 |
| PCB wide | 12mm |
| PCB Color | White PCB |
| IP Grade | waterproof IP67 |
| Power | 9.6W/m, 48W/roll |
| Cuttable | every LED+IC can cut ( 1LEDs/cut ) |
| Temperature | -40-60°C |
| lifespan | 50000hours |
| View angle |
120°C |
Connection:
1) Signal wire: DC+, CLK, DAT, GND
2) DC+ and GND connect to power supplier; CLK, DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2801; when use DMX decorder, can connect to DMX system
4) Support online control
Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product
Advantage:
1.Environment friendly.
2.Long lifespan and Energy-saving.
3.Experienced employees that capable for good service
4.Considerate and kind sales-after service.
5.Strict QC procession, ensure each product is high quality.
1.Manufacturer with our competitive price
2.Excellent management and technology QC Depa.aftersale team,we can do high technology
aftersale service.good quality products.
3.Prompt response to your request,
4.Short delivery,
5.Reliable warranty
6.OEM/ODM
LED pixel, led strip, such as digital led strip(2811,2812, 1903, APA102), Sk6812 RGB led strip , LED Advertising Signage Illumination, as we believe it’s better to do a few things well. With six production lines boasting SMT machines from Japan, we make up to 150,000 units monthly—all of which are CE- and RoHS- marked. Our lead times are as fast as five days. Orders are typically filled in 10-15 days.
1) Payment: BY T/T or Western Union or Paypal
2) lead time:10-15 working days, subject to the order quantity .
3) Delivery ways: DHL ,Fedex ,TNT UPS,EMS door to door service,by sea,by air,etc.
4) 2 years warrenty since the date of purchase our LED products.
1. We accept small orders
2. Customer-made lighting color,customer design is available
3. Fast delivery-standard led modules are in stock
4. 24h serve for you
