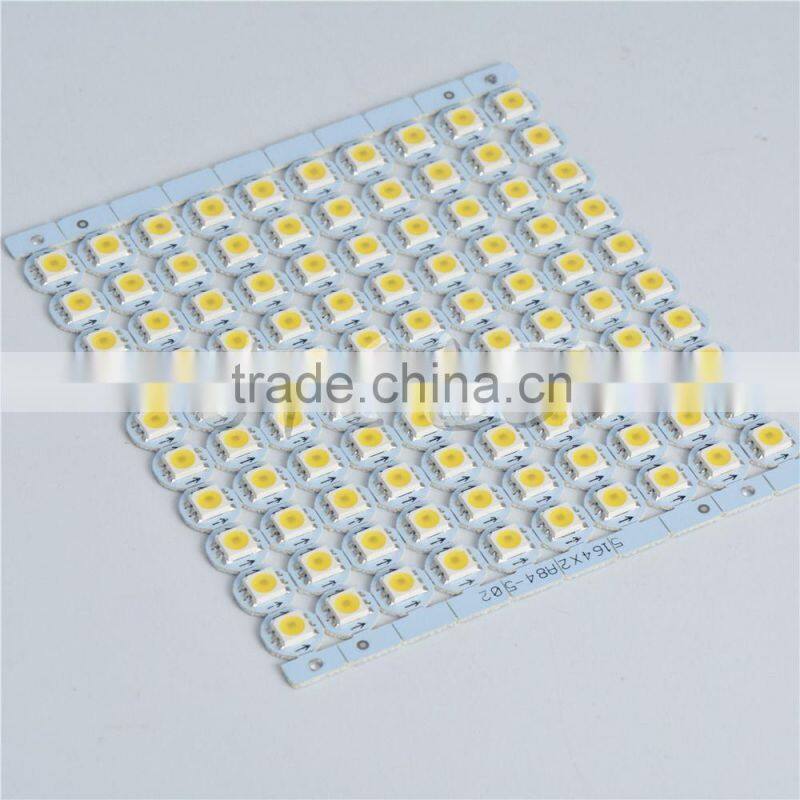

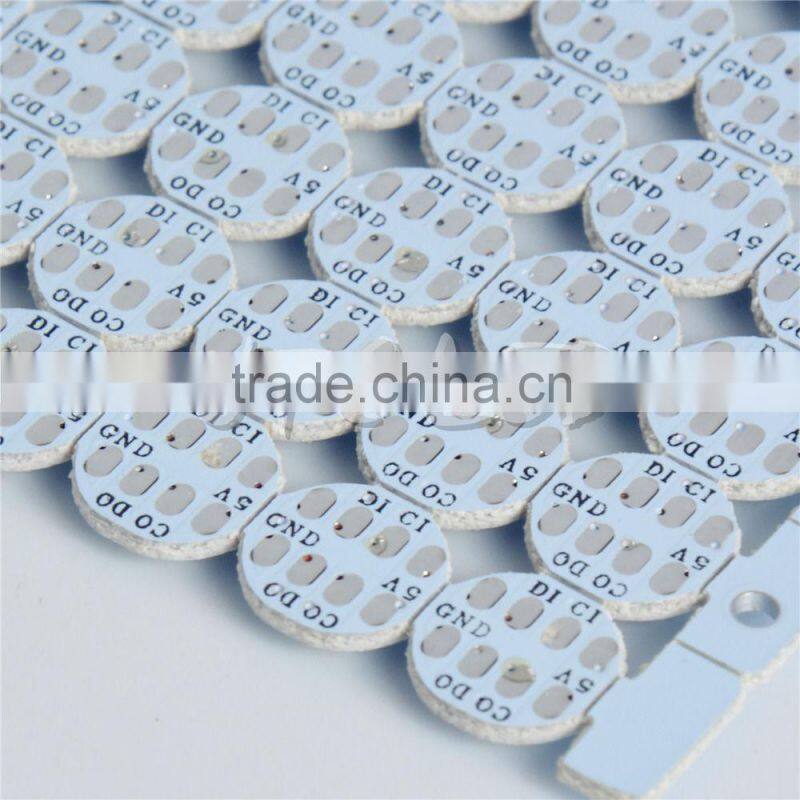

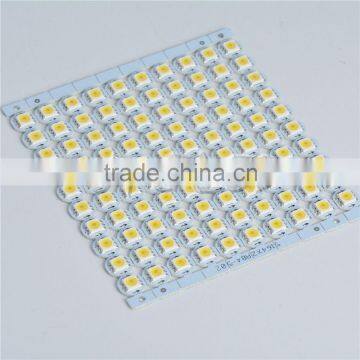

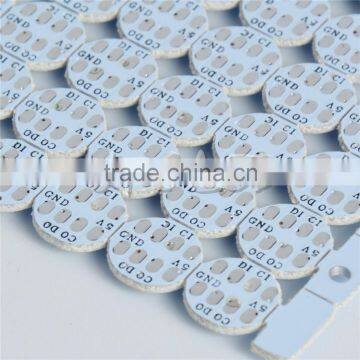

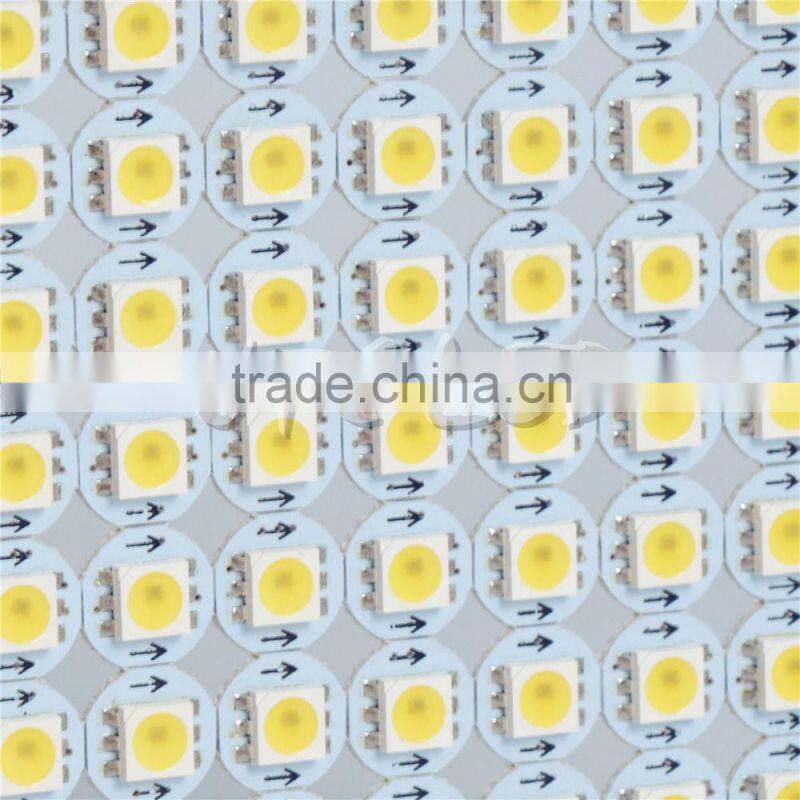

APA102 LED Pixel Board, Single White, 6000-6500K programmable LEDs dots
A102C Products
Traditional, full-color products require a driver IC RGB lamp beads need most is the need for a large number of capacitors and resistors, and then the board will be a combination of electronic components, intermediate experienced many lines via copper sink, numerous pads. . . Although the customer hands a finished product is a small, but experienced numerous processes before completion. Sometimes in the middle inevitable there will be some "minor flaws" That is a question of the failure rate. Built-in IC lamp beads has completely solved the traditional problems. Leap closer to the distance the drive IC and between RGB lamp beads, easy to eliminate the problem of the majority owners of electronic engineers but inevitable headaches occur
APA102C product composition
APA102C is a set of control circuit and lighting circuit in one of the smart external control LED light source. It looks identical to a 5050LED lamp beads, each element is a pixel. Pixels contained within an intelligent digital interface data latch signal shaping amplifier drive circuit also includes a high-precision internal oscillator and programmable 12V high voltage constant current control section, effectively ensuring the color pixel light highly consistent.
NRZ data protocol uses a single line of communication, the pixels in POR, DIN / CLK terminal receiving the data transmitted from the controller, first sent over 24bit data is extracted after the first pixel, to the pixel point internal data latches, the remaining data after an internal shaping circuit shaping amplified by the DO / CO output port started forwarding to the next cascade of pixels, each pixel through the transmission of a signal to reduce 24bit. Pixel using automatic shaping forwarding technology, so that the number of pixels cascade unrestricted signal transmission, only limited by the signal transmission speed requirements.
LED has a low voltage driving, high energy saving and environmental protection, brightness, scattering angle, consistency, and ultra-low-power, long life and other advantages. The control circuit is integrated in the LED above the circuit becomes more simple, small, easier installation.
LED pixel, led strip, such as digital led strip(2811,2812, 1903, APA102), Sk6812 RGB led strip , LED Advertising Signage Illumination, as we believe it’s better to do a few things well. With six production lines boasting SMT machines from Japan, we make up to 150,000 units monthly—all of which are CE- and RoHS- marked. Our lead times are as fast as five days. Orders are typically filled in 10-15 days.
1) Payment: BY T/T or Western Union or Paypal
2) lead time:10-15 working days, subject to the order quantity .
3) Delivery ways: DHL ,Fedex ,TNT UPS,EMS door to door service,by sea,by air,etc.
4) 2 years warrenty since the date of purchase our LED products.
1. We accept small orders
2. Customer-made lighting color,customer design is available
3. Fast delivery-standard led modules are in stock
4. 24h serve for you
