Home > Lights & Lighting > LED Outdoor Lighting > LED Point Light > 50mm Dmx512 Pixel Module 5050 6LEDs,DC24V DMX512 Addressable LED Pixel Module

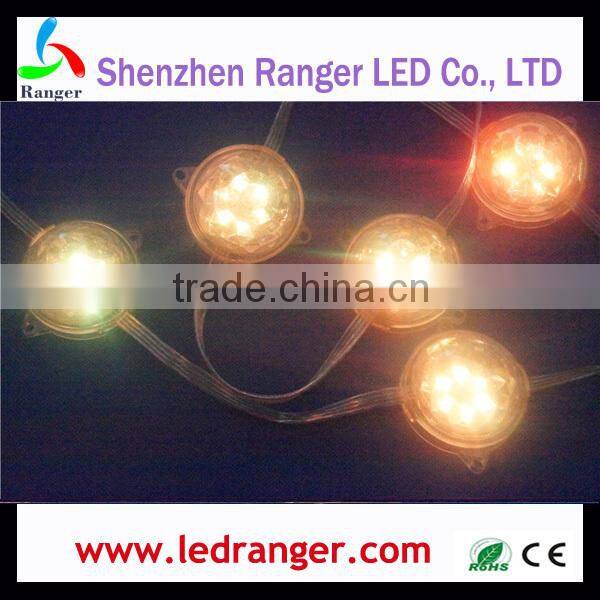

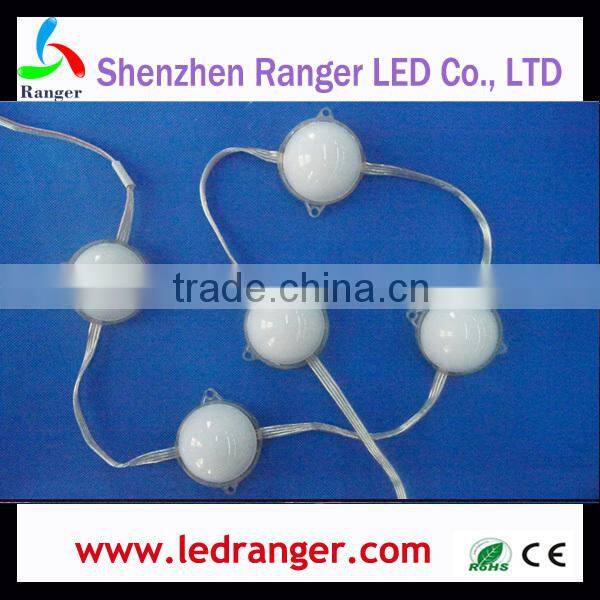

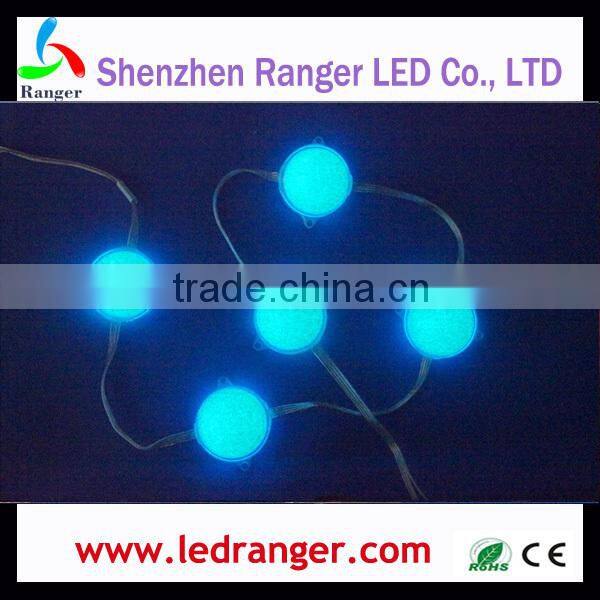

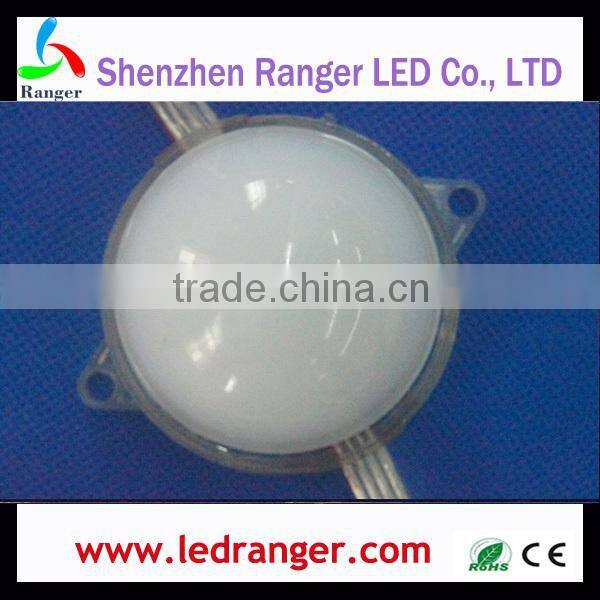

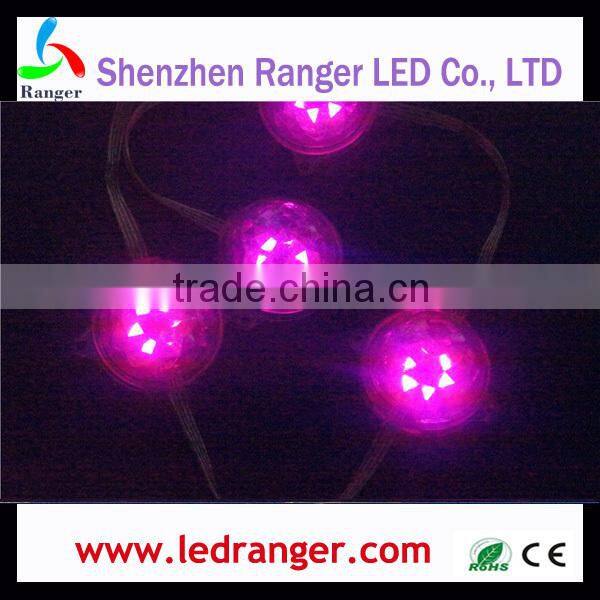

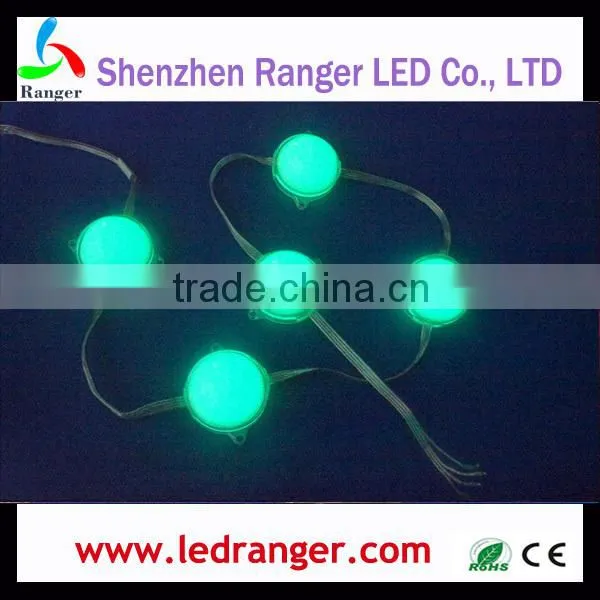

50mm Dmx512 Pixel Module 5050 6LEDs,DC24V DMX512 Addressable LED Pixel Module

Name: 50mm Dmx512 Pixel Module 5050 6LEDs,DC24V DMX512 Addressable LED Pixel Module
Brand: Ranger
SKU: 106984347
Availability: InStock

50mm Dmx512 Pixel Module 5050 6LEDs,DC24V DMX512 Addressable LED Pixel Module thumbnail-1

50mm Dmx512 Pixel Module 5050 6LEDs,DC24V DMX512 Addressable LED Pixel Module photo-1

US$ 1.45 - 1.65 MOQ: 40 Pieces

Key Specifications

Get Latest Price

LED Light Source:

5050 RGB

Input Voltage(V):

Lamp Power:

1.44

Contact Supplier Request Quote Chat Now

Shenzhen Ranger LED Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source 5050 RGB

Input Voltage(V) 24

Lamp Power 1.44

Working Temperature(℃) -20, 60

Working Lifetime(Hour) 50000

Lamp Body Material Copper

IP Rating IP67

Certification CE

Emitting Color Changeable

Place of Origin Guangdong, China

Brand Name Ranger

Model Number RL-F75D55S-DMX512-6F

DMX512 LED Point Light LED Pixel Module

Product Description

5CM Pixel Light Product Description: 5CM pixel lights can achieve full-color running water, chase, scan results, depending on the installation can be composed of different color variations of characters, graphics and other effects.
5CM pixel lights can be used in all types of advertising signs the word, gorgeous background color, lighting decoration.

The thickness of the wires should be based on the actual maximum current drop may occur, the product power and low-voltage wiring length of the transmission may be recommended 20 and connected to the power line.

Operating voltage: DC24V
LED quantity: 6PCS SMD5050
Working Power: 1.44W / pcs
Working temperature: -40-60
Viewing angle: 140
Waterproof grade: IP68
Shell color: transparent / white

L macro photoelectric DMX512 full-color point source with the traditional full-color point source comparison has the following characteristics:

1. liter macro photoelectric DMX512 DMX512 is a full-color light source parallel application single wire transmission control three-channel LED driver outputs dedicated chip, compatible and extended DMX512 (1990) signaling protocol, you can access the controller DMX512 / 1990 protocol (or console) control ideally suited for large-scale outdoor landscape projects and applications where high demand;
2. Macro-liter full-color photoelectric DMX512 lighting products have high resistance to stem worries, the advantages of high anti-static.

3. The chip incorporates power regulator circuit, time base circuit, the signal decoding module, data buffer, internal oscillator, three-channel constant current driver default output current 19mA, while the user can also adjust the desired current through the external resistor REXT. Each output channel Jieke output 8 (256) grayscale adjustable linear current.
4. SPWM output drive using patented technology to support the output polarity reversal.
5. write separate code signal line can write a one-time series code. With built-in EEPROM chip to store addresses.
6. Macro-liter full-color photoelectric light DMX512 signal transmission using parallel program, a light signal when one fails, the other does not affect the normal operation of the lamp and control to ensure the integrity of the overall effect of the project to eliminate the conventional LED Plan a whole string of lights signal lamp fails, the whole back of the lamp is not lit or not walking program phenomenon; reduce maintenance times.
