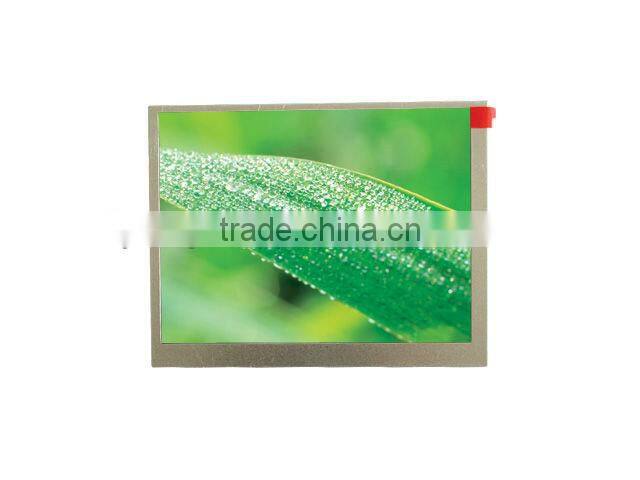

Help Center5.6'TFT-LCD Touch Panel
US$ 1 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
INNOLUX
Model Number:
AT056TN53 V.1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
INNOLUX
Model Number
AT056TN53 V.1
Type
TFT
Specifications
1.Panel Size: 5.6 inches2.Resolution: 640x480
3.Panel Type: a-Si TFT-LCD
4.Features: matt surface
|
Feature |
1.Brand: INNOLUX 2.Product Model: AT056TN53 V.1 3. Panel Size: 5.6 inches 4.Resolution: 640x480 5.Display Scale: 4:3 6. Brightness: 350 cd/m2 7. Contrast Ratio: 500:1(transmission) 8. Panel Type: a-Si TFT-LCD 9.Signal Interface: RGB(1 ch,6-bit) 10 Features: matt surface; up/down, left/right flip show; white LED backlighting |
AT056TN53 Structural Parameters
• Working Temperature: -20°C ~ 70°C
• Storage Temperature: -30°C ~ 80°C
• Panel Weight: 83.1g
• Surface Treatment: matt surface
• Resolution: 640(RGB)x480(VGA)
• Aspect Ratio: 4:3
• Pixel Arrangement: R.G.B
• Display Area: 112.896x84.672 mm
• Visual Area: 115.90x87.67 mm
• Size: 126.5x100.0 mm
• Thickness: 5.7±0.3 mm
• Touch Screen: 4-wire resistive screen optional
AT056TN53 Optical Property
• Display Mode: TN, Normally White Display, transmittance
• Brightness: 350 cd/m2
• Contrast Ratio: 500 :1 (transmission)
• Display Color: 262K(6bit)
• Response Time: 10/15(Tr/Td) ms
• Viewing Angle: 70/70/50/70 (up/down/left/right)
• Optimal Viewing Angle: 6 o'clock
• White Field Chroma: X:0.310;Y:0.330
• Scan Frequency: 1.33/1.43(Typ./Max.)(9points)
• Inversion Scanning: flip(horizontal/vertical)
• Power Consumption: 2.56W
• Kind of Signal Interface: 40 pins 0.5mm spacing FPC
• Signal Type: ParallelRGB(1ch,6/8bit)
• Signal Interface Voltage: 3.3V
• Signal Interface Current: 200/250mA(Typ./Max.)
• Signal Interface Power: 600mW (Typ.)
• Backlight Tube Position: side into type light source
• Lamp Type: WLED
• Lamp Life: 20,000 (h)
• Lamp Total Power: 1.90W(Typ.)
• Backlight Input Voltage: 5.0V(Typ.)
• Backlight Input Current: 380/450(Typ./Max.)
