Home > Consumer Electronics > Display & Accessories > LCD Module > 10.4'TFT-LCD Touch Panel

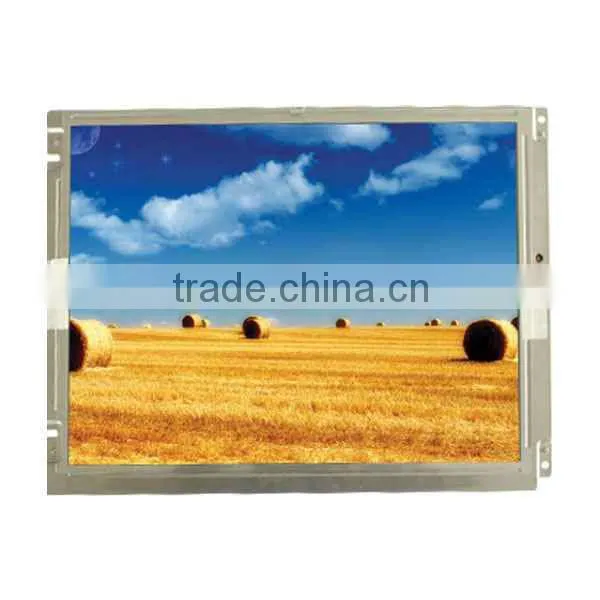

10.4'TFT-LCD Touch Panel

Name: 10.4'TFT-LCD Touch Panel
Brand: E Ink
SKU: 106984309
Availability: InStock

US$ 1 - 2 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

E Ink

Model Number:

PD104SL5

Contact Supplier Request Quote Chat Now

Zhejiang Qiyang Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name E Ink

Model Number PD104SL5

Type TFT

Specifications

1.Panel Size: 10.4 inches
2.Resolution: 800x600
3.Panel Type: a-Si TFT-LCD
4.Touch Screen:4-wire resistive screen option

Feature

1.Brand: E Ink
2.Product Model: PD104SL5
3.panel Size: 10.4 inches
4.resolution: 800x600
5.display Scale: 4:3
6.pixel Pitch: 0.264x0.264
7.brightness: 350 cd/m2
ntrast Ratio: 400:1(transmission)
9.panel Type: a-Si TFT-LCD
10.sgnal Interface: LVDS(1 ch,6-bit)
11.features: matt surface; white LED backlighting

PD104SL5 Structural Parameters

• Working Temperature:    -20°C ~ 70°C

• Storage Temperature:    -20°C ~ 70°C

• Panel Weight:    480g

• Surface Treatment:    matt surface

• Resolution:    800(RGB)x600(VGA)

• Aspect Ratio:    4:3

• Pixel Arrangement:    R.G.B

• Pixel Pitch:    0.264x0.264

• Display Area:    211.2x158.4 mm

• Visual Area:    215.4x162.6 mm

• Size:    243.0x185.1 mm

• Thickness:    10.5 mm

• Touch Screen:    4-wire resistive screen optional

PD104SL5 Optical Property

• Display Mode:    TN, Normally White Display, transmittance

• Brightness:    350 cd/m2

• Contrast Ratio:    400:1 (transmission)

• Display Color:    262K(6bit)

• Response Time:    15/25(Tr/Td) ms

• Viewing Angle:    60/60/55/40 (up/down/left/right)

• Optimal Viewing Angle:    12 o'clock

• White Field Chroma:    X:0.320;Y:0.350

• White Field Change:    1.25/1.82(Typ./Max.)(9points)

• Inversion Scanning:    NO

• Power Consumption:    2.56W

• Kind of Signal Interface:    14 pins 1.25mm spacing molex 53779-1470

• Signal Type:    LVDS(1ch,6/8bit)

• Signal Interface Voltage:    3.3V

• Signal Interface Current:    350/450mA(Typ./Max.)

• Signal Interface Power:    1.15W (Typ.)

• Backlight Tube Position:    side into type light source

• Lamp Type:    2pcs CCFL

• Lamp Life:    15,000 (h)

• Lamp Total Power:    4/8/11W(Min./Typ./Max.

• Voltage of Lamp:    400/550/600V(Min./Typ./Max.) (Ta=+25/0°C)

• Current of Lamp:    380/450(Typ./Max.)

• Lamp Start Voltage:    380/450(Typ./Max.)
875/1300V(Max.)(Ta=+25/0°C)
