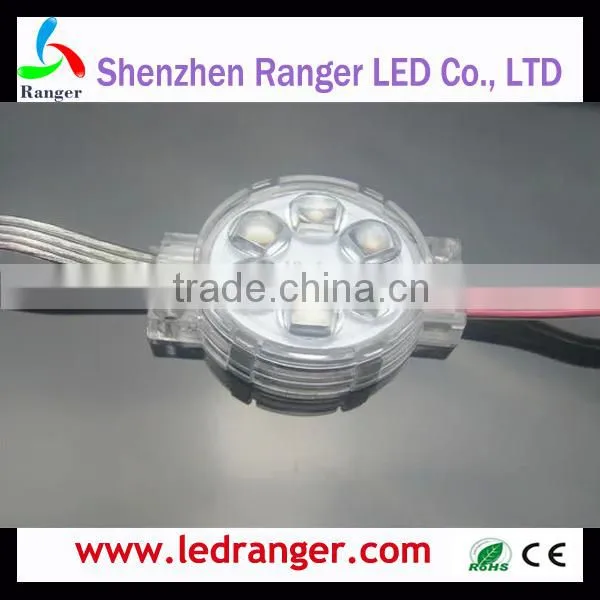

5m DMX512 24v LEDs RGB LED Pixel Module Lightings With Mini Decoder Clear Cover With Lens for 5050 LEDs

5m DMX512 24v LEDs RGB LED Pixel Module Lightings With Mini Decoder Clear Cover With Lens for 5050 LEDs thumbnail-1
5m DMX512 24v LEDs RGB LED Pixel Module Lightings With Mini Decoder Clear Cover With Lens for 5050 LEDs photo-1
US$ 1.35 - 1.65 MOQ: 40 Pieces
Key Specifications
Get Latest Price
LED Light Source:
5050 RGB
Input Voltage(V):
24
Lamp Power:
1.44
Contact Supplier Request Quote Chat Now
Shenzhen Ranger LED Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 5050 RGB
Input Voltage(V) 24
Lamp Power 1.44
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material Copper
IP Rating IP67
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name Ranger
Model Number RL-F75D55S-DMX512-6F





Product Description

50mm DMX512 LED Pixel 5050 with Mini Decoder Clear cover with Lens for 5050 LEDs

Parameter

Name:



No.

RL-F55D42S-DMX512-6F

Working Voltage:

VDC12V/24V

Density of LED:

3/ 4 / 6 LEDs Per Piece

Pixel:

3/ 4/ 6 LEDs Per Piece

LED Type:

SMD 5050 RGB

Max Parts Cuttable:

Each Piece Addressable

Power Consumption Per Piece:

Max 1.5W Per Piece

IC Type:

DMX512

Gray Grade:

256

Emitting Colors:

RGB/ Rainbow Colors

Working Temperature:

-20+60 degree Centigrade

Emitting Angle:

120 Degree

Controller Advised:

DMX512 BOX+Controlelr,Decoder, T-serious Controller

Brand:

Ranger

IP Grade

IP67

Warranty

2 Years





5CM Pixel Light Product Description: 5CM pixel lights can achieve full-color running water, chase, scan results, depending on the installation can be composed of different color variations of characters, graphics and other effects.
5CM pixel lights can be used in all types of advertising signs the word, gorgeous background color, lighting decoration.

The thickness of the wires should be based on the actual maximum current drop may occur, the product power and low-voltage wiring length of the transmission may be recommended 20 and connected to the power line.



IC TYPE

ITEM NO

 Volt Power Size NW LED Color Waterproof
DMX512

RL-F55D42S-

DMX512-6F

 DC24V 1.6 54*42*13 25 RGB IP67

 5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs

Operating voltage: DC24V
LED quantity: 6PCS SMD5050
Working Power: 1.44W / pcs
Working temperature: -40-60
Viewing angle: 140
Waterproof grade: IP68
Shell color: transparent / white

L macro photoelectric DMX512 full-color point source with the traditional full-color point source comparison has the following characteristics:

1. liter macro photoelectric DMX512 DMX512 is a full-color light source parallel application single wire transmission control three-channel LED driver outputs dedicated chip, compatible and extended DMX512 (1990) signaling protocol, you can access the controller DMX512 / 1990 protocol (or console) control ideally suited for large-scale outdoor landscape projects and applications where high demand;
2. Macro-liter full-color photoelectric DMX512 lighting products have high resistance to stem worries, the advantages of high anti-static.

3. The chip incorporates power regulator circuit, time base circuit, the signal decoding module, data buffer, internal oscillator, three-channel constant current driver default output current 19mA, while the user can also adjust the desired current through the external resistor REXT. Each output channel Jieke output 8 (256) grayscale adjustable linear current.
4. SPWM output drive using patented technology to support the output polarity reversal.
5. write separate code signal line can write a one-time series code. With built-in EEPROM chip to store addresses.
6. Macro-liter full-color photoelectric light DMX512 signal transmission using parallel program, a light signal when one fails, the other does not affect the normal operation of the lamp and control to ensure the integrity of the overall effect of the project to eliminate the conventional LED Plan a whole string of lights signal lamp fails, the whole back of the lamp is not lit or not walking program phenomenon; reduce maintenance times.



No.1 MIni Decoders

---------------------------

 5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs



No.2

IC TYPE

ITEM NO

 Volt Power Size NW LED Color Waterproof
DMX512

RL-F55D42S-

DMX512-4F

 DC24V 1.2 54*42*13 25 RGB IP67



5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs







IC TYPE

ITEM NO

 Volt Power Size NW LED Color Waterproof
DMX512

RL-F55D42S-

DMX512-6F

 DC24V 1.6 54*42*13 25 RGB IP67



5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs









IC TYPE

ITEM NO

 Volt Power Size NW LED Color Waterproof
DMX512

RL-F55D42S-

DMX512-6F

 DC24V 1.6 54*42*13 25 RGB IP67



5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs



IC TYPE

ITEM NO

 Volt Power Size NW LED Color Waterproof
DMX512

RL-F55D42S-

DMX512-6F

 DC24V 1.6 54*42*13 25 RGB IP67




5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs





IC TYPE

ITEM NO

 Volt Power Size NW LED Color Waterproof
DMX512

RL-F55D42S-

DMX512-6F

 DC24V 1.6 54*42*13 25 RGB IP67



5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs





IC TYPE

ITEM NO

 Volt Power Size NW LED Color Waterproof
DMX512

RL-F55D42S-

DMX512-6F

 DC24V 1.6 54*42*13 25 RGB IP67



5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs



--------------------------------------------------------------------------------------------------------------------------------------------------------------------



IC TYPE

ITEM NO

 Volt Power Size NW LED Color Waterproof
DMX512

RL-F55D42S-

DMX512-4F

 DC24V 1.2 54*42*13 25 RGB IP67



5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs5m DMX512 24v LEDs RGB LED Pixel Module Lightings with Mini Decoder Clear cover with Lens for 5050 LEDs
