Provide ARM development board / ARM core board ODMDesign special motherboards
Provides embedded hardware design
ODM Service Specifications:
Why do we need customize mainboard?
Customers in embedded industrial mainboard market need to use different kinds of computer platforms to meet their different application requirements. Usually, these platforms are made of standard products or on the basis of existing products slightly make change to complete. However, neither the function of the industrial computer beyond the needs of customers, cause the waste of cost; nor it can't meet customers' application requirements. Therefore, on cost-effective, the standard industrial computer platform cannot meet the needs of customers. In addition, there are some problems in the development risk, cost and time of self-developed by customers. Therefore, this kind of embedded mainboard development plan reflects the process of embedded general trend, which is continuously growing, developing and strengthening.

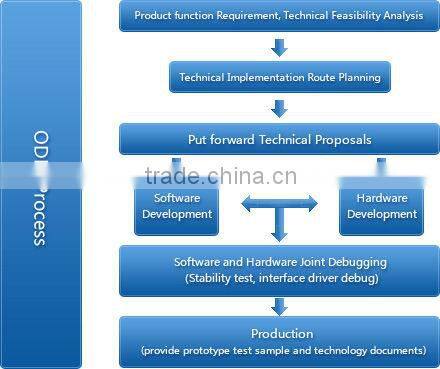

How to customize?
1, Product function requirement, technical feasibility analysis;
2, Technical implementation route planning;
3, Put forward technical proposals (include: concrete technical implementation route, development process planning, development cost budget, product cost estimation table etc.)
4, Hardware development process: circuit principle design, PCB design, circuit board processing, sample processing debugging.
5, Software development process: OS software customization and trans0lantation, driver development and debug, application development and debug.
6, Productization process: design (shape and appearance, structure, chassis open module), EMC stability test, circuit principle, PCB optimization, which can satisfy the function demand of prototype test sample.
7, Technical documents: product circuit principle diagram, PCB figure, components BOOM material list, hardware technology materials, software technology materials, industrial design mechanical drawings. 8, Product mass production:
9, Small batch trial production: manufacture, testing equipment; trial problem feedback; circuit principle diagram and PCB optimization.
10, Mass production; standardization of manufacture and test fixtures documents, circuit principle diagram of mass production prototype, PCB finalized filing, components material list BOOM table finalized filing, hardware and software technology documents finalized filing, industrial design mechanical drawings finalized filing.
| Cooperation Mode | Based on Core Module Customization | The Whole Board Customization |
|---|---|---|
| Specification | Customize expanded board based on our core module | Offer complete mainboard customization based on the process platform we choose for you |
| Service | Provide device selection, design suggestions, plate type design; Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype; Provide upper development, and the follow-up with long-term technical support, quality tracking service. | Provide device selection, design suggestions, plate type design Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype; Provide upper development, and the follow-up with long-term technical support, quality tracking service. |
| Development Cycle | Provide mainboard test usually in 8-10 weeks(no fly line) | Provide mainboard test usually in 2-3 months(no fly line) |
| Deliver | Principle diagram, PCB, driver source code, prototype, etc. | Principle diagram, PCB, driver source code, prototype, etc. |
| Service Extension(optional) | Offer trial production/batch production, make production process, ensure the quality and delivery time; EMC/MI Test; Perfect quality assurance and after-sales service; Product system, software and hardware upgrades. | Offer trial production/batch production, make production process, ensure the quality and delivery time; EMC/MI Test; Perfect quality assurance and after-sales service; Product system, software and hardware upgrades. |
| Expense | Low, according to user's requirements and difficulty level of R&D; The user who choose OEM could return part of R&D costs | High, according to user's requirements and difficulty level of R&D; The user who choose OEM could return part of R&D costs |
