ODM Project From Chines Human Machine Interface Designer
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
QY
Model Number:
SHMI-701H
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Custom Project TI AM 335X Cortex-A8 Processor HMINegotiableMOQ: 1 Piece -
Custom Project ARM Development Platform HMINegotiableMOQ: 1 Piece
-
TI AM 1808 ARM Mainboard+7 Inch TFT-LCD With Resistive Touch PanelNegotiableMOQ: 1 Piece
-
TI Cortex-A8 ARM Mainboard +7''TFT-LCD With Resistive Touch PanelNegotiableMOQ: 1 Piece
-
ODM/OEM HMI TI AM 1808 Mainboard +7' TFT LCD+Touch PanelNegotiableMOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
QY
Model Number
SHMI-701H
Specifications
ODM Project From Chines Human Machine Interface Designer1.TI ARM9 processor,456MHz2.Built-in PRU
3.With 7''TFT-LCD,

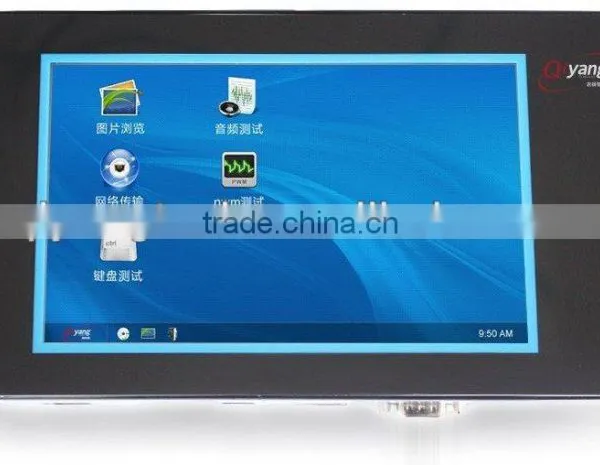

ODM Project From Chines Human Machine Interface Designer ( SHMI-701H )
1.TI ARM9 processor,456MHz,low consumption,high performance;
2.Built-in PRU,instead of Upper Computer+Lower Computer mode;
3.With 7''TFT-LCD,Resistive Touch Panel,excellent touch experience to the on-site industrial environment;
4.Preassemble Linux OS ,support QT/MiniGUI graphic interface;
5.Preassemble interfaces driver program ,provide sample program and development tool;
6.Provide customized service, customize the highest cost-effective Smart Human-Machine terminal;
7.Application Range:Inquiry Terminal,Collect Terminal,Center Control Computer,Monitor Terminal Application. HMI
ODM Project From Chines Human Machine Interface Designer Stamp Module Specifications
Application Case
| Interface Configuration |
|---|
| 7''TFT-LCD+Touch Panel |
| 100Mbps Ethernet Port x 1 |
| Serial Ports x 3: debug x 1,RS485 interface x 1, TTL x 1 |
| Wireless module interface x1 |
| RTC,Hardware Watch dog,I/O so on |
ODM Project From Chines Human Machine Interface Designer Product Interface
QT Sample Progrm Interface
MiniGUI Sample Program Interface
ODM Project From Chines Human Machine Interface Designer Product Parameter
| Touch Display | |
| LCD | 7''TFT-LCD(16:9) |
| Resolution | 800 x 480 |
| Brightness | 300cd/m2 |
| View | 6'O Clock |
| Single-Point lifetime | Above 1,000,000 times |
| System Core | |
| CPU | TI ARM9 processor;456MHz |
| RAM | 128M SDRAM |
| Memory | 128M Nandflash(could expand to a large capacity or industrial chip ) |
| Power Supply;Power Consumption | |
| Power Input | DC 9~24V |
| Power Consumption | ≤3W (actual measurement) |
| Interface (non-standard configuration ,could be customized according to user's requirements) | |
| RPU | PRU x 2,could expand to serial ports x 8 |
| Serial | RS232 x 3:debug x 1 |
| Serial Interface | SPI/I2C |
| USB | Ports x 2:USB 2.0 OTG x 1; USB 1.1 HOST x 1 |
| Network | 10/100Mbps self-adaptive full duplex port x 1 |
| Audio | Linear input and output |
| VGA | VGA output x 1 |
| SD Card | Large capacity SD Card storage x 1 |
| Other | IO,Hardware Watchdog ,back-up lithium battery,Buzzer |
| Product Structure | |
| Structure | Steel Structure |
| Installation | Embedded Installation |
| Application Environment | |
| Working Temperature | -20°C~+70°C(batch user could customize -40°C~ 85°C) |
| Working Humidity | 5%~ 95%, Non-Condensing |
| Software | |
| OS | Linux 2.6.37 |
| GUI | QT4.8.2 |
| Development Tool | arm-none-linux-gnueabi-gcc 4.5 |
Our advantage:
