Atmel At91sam9263 SBC

Atmel At91sam9263 SBC thumbnail-1
Atmel At91sam9263 SBC photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
QY-9263S
Brand Name:
QY
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Zhejiang Qiyang Intelligent Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number QY-9263S
Brand Name QY
Place of Origin Zhejiang, China

Specifications

single board computer
1.ARM SBC ATMEL AT91SAM9263 CPU
2.Support SD card, CF card, IDE device
3.200MHz ARM926EJ-S core

ARM Single Board Computer Specifications

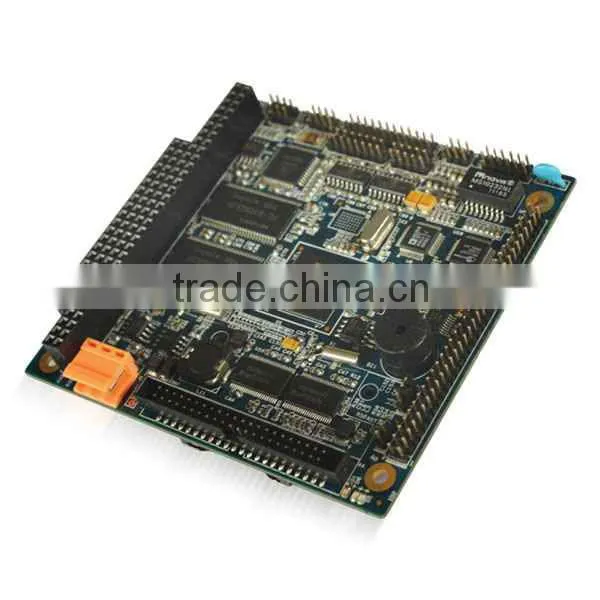

QY-9263S Mainboard is designed by 8-floor PCB; On-board CPU, SDRAM, NandFlash, DataFLash; with commonly used interfaces, such as TFT-LCD, touch screen, network, SPI, PWM, CAN, timer, matrix keypad, IDE, high-speed USB HostDevice, SD card, RS232485 serial port, audio, etc.

9263 Single Board Computer MainBoard Specifications

CPU Processor
• ATMEL AT91SAM9263, ARM926EJ-S core
• With DSP expand instructions, JAVA hardware acceleration
• 200MHz


SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM


FLASH Storage
• On-board 512K DataFlash  (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)
• Could change large capacity or industrial chip according to customer's request


PCB Specification & Size
• Using eight floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 96 x 90 x 1.5mm


Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing


Low Power Consumption
• 5V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30 + QT2.3
• Windows 5.0, WindowsCE 6.0



PC104 Single Board Computer Software & Technical Support

No. Item Function
J1 Writing jumper cap Write program to control jump line
J2 Audio signal Audio signal input/output
J3 TFT-LCD, Touch screen Expand color LCD screen, drive 4-wire resistive touch screen
J4 LCD power spply jump line LCD power supply 3.3V/5.0V
J5 GPIO interface Gnenral IO mouth
J6 Serial port Debugging serial ports and general serial ports
J7 USB Device Program download, USB communication
J8 USB Host 1&2 USB 2.0 host application
J9 IDE interface connect IDE devices
J10 MISC composite interface SPI, PWM, timer
J11 Power interface +5V Dc power supply
J12(back) SD card interface Stable and portable storage application
J13 Ethernet interface 10M/100M self-adaptive network
J14 PC104 interface Standard 8bit/16bit PC104 interface, can be stacked
J15 CPLD program download mouth used to CPLD program download
J16 Reset pin System reset
J17 IDE device power jump line 3.3V/5V jump line, support different IDE devices
J18 Matrix keypad interface 8 x 8 matrix keypad interface, can also used as I/O mouth
J19 CAN interface CAN 2.0 bus application

Linux Software Features

Cross-compiler arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2 arm-linux-gcc 4.2
U-boot Version: U-boot 1.3.4 Provided with bootstrap, U-boot source code
Support writing into DataFlash or NandFlash start
Support SAM-BA software with USB writing and TFTP network update
Linux Kernel Version: 2.6.30
RTC driver, save and restore system time after power off Provided with test program and source code
CAN driver Provided with test program and source code
Ethernet driver Provided with test program and source code
Audio driver Provided with test program and source code
LCD driver, supporting 320*240, 640*480, 800*600, 1024*768 resolution Provided special LCD with debug service
Touch screen driver, supporting 4-wire resistive screen Provided with test program and source code
Serial driver Provided with test program and source code
Buzzer driver Provided with test program and source code
GPIO driver Provided with test program and source code
8*8 matrix keypad driver Provided with test program and source code
SPI driver Provided with test program and source code
PWM driver Provided with test program and source code
PC104 driver Provided with test program and source code
USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc. Support various USB external devices, provided with debug service
IDE driver Support various IDE equipment
CF card driver Support large capacity CF card
SD card driver Support large capacity SD card storage
File System Jffs2 file system Provided with source code
QT QT2.3 development environment Provided with QT routine
PC Development Environment Provided ubuntu 10.10 development environment and VM7.1.4 virtual machine Provided with development environment build manual

WindowsCE 6.0 Software Features

Bootloader support writing into DataFlash or NandFlash start Optional
support user-defined boot logo Up to 1024*768 resolution 24 bmp image
BSP Source Code
BSP Open Source RTC diver, save and restore system time after power off Provided with test program and source code
Registry saving, support saving registry information when electricity adjusted Convenient for user to debug
LCD driver, supporting 320*240, 640*480, 800*600, 1024*768 resolution Provided special LCD with debug service
Touch screen driver, supporting 4-wire resistive screen Provided with test program and source code
SD card driver, support 2-wire SD card Biggest support 4G
Audio driver, support audio input/output and MIC input Provided with test program and source code
Nic driver, 10/100M self-adaptive, can be expanded gigabit nic Provided with test program and source code
CF card driver Support large capacity CF card
IDE driver Support various IDE equipments
Serial driver Provided with 232, 485 test program and source code
support 8*8 matrix keypad, also can used as GPIO Provided with test program and source code
USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc. According to user's selection, debug driver
PC Development Environment Wince6.0: Provided with supporting VS.NET 2005 development tools, Wince 6.0 plug-in
Wince5.0: Provided with supporting EVC development tools, Wince 5.0 plug-in		 Convenient for user to next develop

Atmel at91sam9263 Single Board Computer(PC104)Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

Order Infomation

Item QY-9263EK
Standard accessories (1)5V/2A power supply (2)cross serial line (3) CD of DVD development (4)1-wire RS232 serial line(a trailer four)(5) 1-wire USB download line (6)Network line(7)USB expansion line(a trailer two)(8)Audio expansion line(9)exquisite packing box
DVD resources

Linux

Compilers

Cross-compiler arm-linux-gcc

Tool software

Supporting terminal, writing, download tools

Device manual

Main components' datasheet of back plane

User manual

About all development and use

Image file

Bootstarp, u-boot, kernal, image file of file system

Test source code

Test routines and source codes of all interfaces

System source code

Including bootstrap, u-boot, kernel, file system and QT source code

Schematic

Back plane's schematic in PDF format

Packaging library

Component packaging library of evaluation board

Windows CE

Tool software

Supporting terminal, writing, download tools, sync software

Device manual

Main components' datasheet of back plane

User manual

About all development and use

Image file

Firstboot, Eboot, NK image file

Test source code

Test routines and source codes of all interfaces

BSP package

Related BSP board-level supporting package

SDK

Related SDK

Schematic

Back plane's schematic in PDF format

Packaging library

Component packaging library of evaluation board
LCD options



4.3' LCD module + 4-wire resistive touch screen +USB cable

5.6' LCD module + 4-wire resistive touch screen +USB cable

6.4' LCD+ 4-wire resistive touch screen + USB cable + inverter

7' LCD module + 4-wire resistive touch screen +USB cable

8' LCD module + 4-wire resistive touch screen +USB cable

10.4' LCD+ 4-wire resistive touch screen + USB cable + inverter

Module options

TTL to LVDS module

TTL to VGA module

Sales hotline

+86-571-87858811, 87858822

ARM SBC Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
