Home > Computer Products > Mainboard > Competitive- Priced I.mx6 Circuit PCB Manufacturer

Competitive- Priced I.mx6 Circuit PCB Manufacturer

Competitive- Priced I.mx6 Circuit PCB Manufacturer thumbnail-3

Competitive- Priced I.mx6 Circuit PCB Manufacturer thumbnail-4

Competitive- Priced I.mx6 Circuit PCB Manufacturer thumbnail-5

Competitive- Priced I.mx6 Circuit PCB Manufacturer thumbnail-6

Competitive- Priced I.mx6 Circuit PCB Manufacturer photo-1

Competitive- Priced I.mx6 Circuit PCB Manufacturer photo-2

Competitive- Priced I.mx6 Circuit PCB Manufacturer photo-3

Competitive- Priced I.mx6 Circuit PCB Manufacturer photo-4

Competitive- Priced I.mx6 Circuit PCB Manufacturer photo-5

Competitive- Priced I.mx6 Circuit PCB Manufacturer photo-6

US$ 100 - 289 MOQ: 1 Piece

Key Specifications

Get Latest Price

Products Status:

Stock

Application:

Other

Chipset Manufacturer:

Other, Cirrus Logic

Contact Supplier Request Quote Chat Now

Zhejiang Qiyang Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Application Other

Chipset Manufacturer Other, Cirrus Logic

Socket Type Other

Form Factor Other

Memory Type SDRAM

Graphics Card Type Integrated

Hard Drive Interface SATA

FSB / HT 1.2GHz

Brand Name QY

Model Number QY-IMX6S

Place of Origin Zhejiang, China

Competitive- priced i.mx6 circuit PCB manufacturer

Product Specifications:

ARM® Cortex™-A9,1.2GHz, compatible with solo/dual/quad core;

1MB L2 Cache,32 KB instruction and data caches, NEON SIMD Media Accelerator;

2D/3D/VG Accelerator,1080P h.264 video hardware codec,support dual 720P video encoding;

1x 20-bit parallel, MIPI-CSI2 (4-channel), three simultaneous inputs;

2-ch HOST USB HSIC, 1-ch OTG and 1-ch HOST USB integrated PHY;

1 industrial gigabit Ethernet MAC(10/100/1000MHZ);

2-ch CAN ports, each channel can up to 1 Mbps, support CAN2.0;

3 SD/MMC 4.4 and 1 SDXC;

5 SPI, 5 UART, 3 I2C, 4 PWM;

Integrated MIPI-HSI interface, 1-ch PCIe2.0 interface;

Dual LVDS interface, support resolution up to 2048*1536;

Freescale PF100 PMU;

High Assurance Boot, cryptographic cipher engines, random number generator, and tamper detection.

Competitive- priced i.mx6 circuit PCB manufacturer

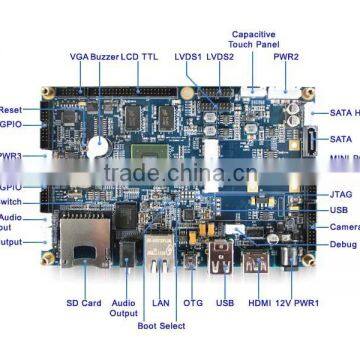

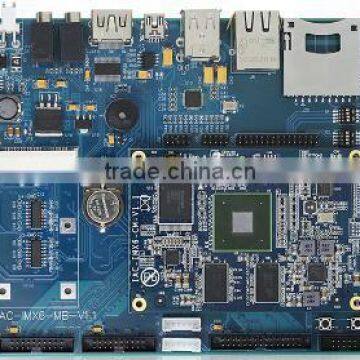

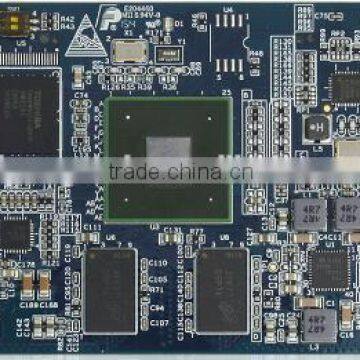

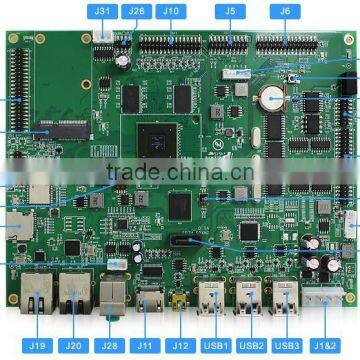

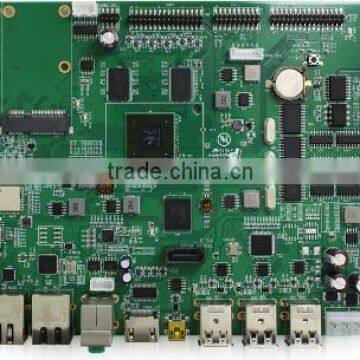

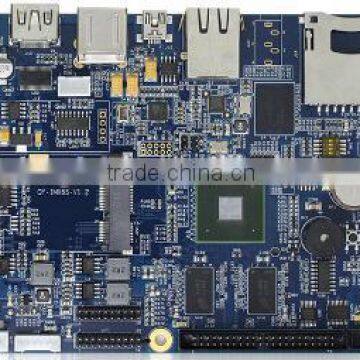

Product Pictures:

Hardware Resources	CPU	Freescale i.MX6D processor,ARM® Cortex™-A9 core,1.2GHz
	RAM	DDR3 SDRAM,4*256MB, total 1GB
	Flash	4GB EMMC
	Network	AR8035 Network Chip, adopt RGMII mode, support 10M/100M/1000M
	Communication	5-ch RS232, 1 port (com0) as the debug UART, 2-ch RS232 Compatible with RS485
		1-ch High speed OTG,4-ch USB, 1-ch connects to MIN_PCIE Interface
		2-ch CAN, support CAN2.0, 1-ch TTL Output, 1-ch CAN output
		1-ch 10/100/1000Mbps Ethernet port, with ACT/LINK indicator
	Display	18-bit TFT-LCD(Compatible with 16, 24 bits), resolution up to 1920 * 1200
		VGA, can be connected with universal display
		2-ch LCDS Interface, each channel can support resolution up to 1920*1200
		HDMI Interface, support HDMI 1.4

	Audio	McASP audio interface; binaural output; MIC audio input
	Input Interface	4-wire resistive touch panel
		Standard I2C Capacitive panel
		CAMERA Interface, standard interface support OV5642 camera module
	Expansion Interface	MINI_PCIE 2.0
	Expansion Interface	SIM Card
	Memory Interface	1-ch SD Card interface
	Memory Interface	1-ch SATA Hard disk interface, SATAII standard, speed up to 3.0Gbps
	Other	Reset circuit, Watch dog, RTC, Buzzer, JTAG interface
	Power Input	+12V power supply, can support +4.75V~+18V wide range voltage supply
Resource	Development Tools	Development environment: Virtual Machine VM9.0.2+ubuntu12.04.1
		Application layer development debug tool
		Cross-compiler
		Common terminal development debugging tool
	Image File	OS image file, support multiple resolution display
	Test Program	Interface using demo test program and test program source code
	Source Code	Bootloader, kernel, system source code
	Manual	Mainboard User manual,Device Manual
	Schematic	Mainboard structure size chart
Electrical Specification	Size	160mm*105mm
	PCB	8-layer high precision immersion gold process
	Power Consumption	≤3W
	Operation Temperature	-20°C ~ +70°C
	Operation Humidity	5% ~ 95%, Non-Condensing

Competitive- priced i.mx6 circuit PCB manufacturer

Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
