Home > Electrical & Electronics > Integrated Circuit > General-purpose Integrated Circuit > Custom Board Freescale I.mx6 Cortex-A9 SBC

Custom Board Freescale I.mx6 Cortex-A9 SBC

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Model Number:

QY-IMX6S-B2(2)

Type:

Other, Freescale

Brand Name:

Contact Supplier Request Quote Chat Now

Zhejiang Qiyang Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number QY-IMX6S-B2(2)

Type Other, Freescale

Brand Name QY

Place of Origin Zhejiang, China

Specifications

Freescale I.mx6 Cortex-A9 SBC
1.Multi-Core:Single/Dual/Quad,1.2GHz
2.OS:Linux/Android/QNX
3.IO:2*Gb Ethernet,SATA II;

This series is dual core of the i.mx 6.

Freescale I.mx6 Cortex-A9 SBC

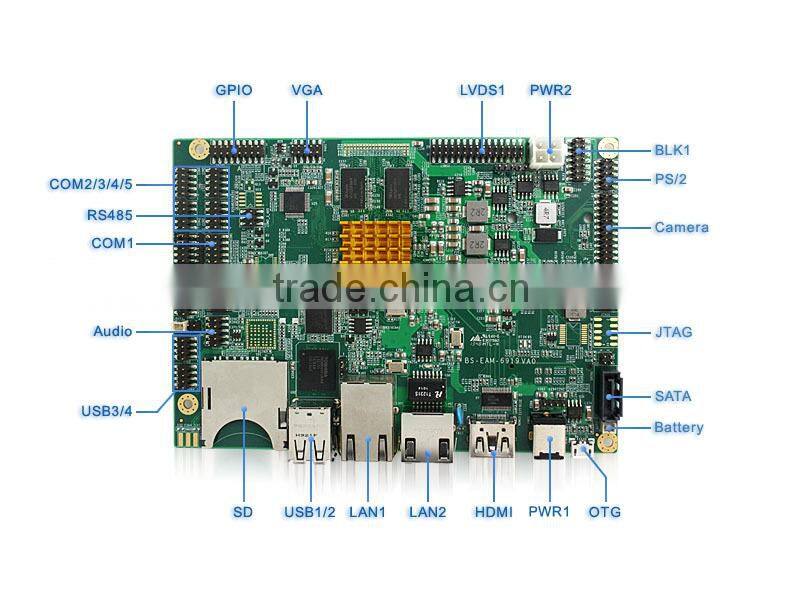

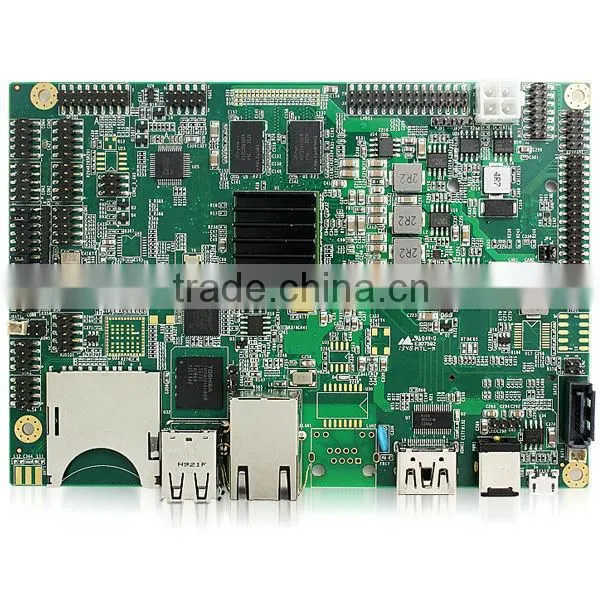

1. Freescale I.mx6 Cortex-A9 SBC Product Picture:

3. Freescale I.mx6 Cortex-A9 SBC Product Specification:

QY-IMX6S-B2(2)
(3.5” Freescale ARM Cortex-A9 quad/dual core 1.2G CPU on board SBC, 4USB/AUDIO/4RS232&RS485/2LAN/GPIO/WTD/JTAG/2CAN/Blue Tooth)
Features
	On board Freescale ARM Cortex-A9 i.MX6 1.2G industrial level Solo/Dual/Quad Core Processor
	On Board 1GB/2GB DDR3 RAM and up to 32GB EMMC flash(optional high speed)
	6 USB2.0 and 6 Serial Ports, 2 100/1000MB Giga LAN supported
	2 route Onboard CAN BUS, special designed for industrial application
	ARM structure Superior Low power consumption, max 3W
Specifications
General
processor		Freescale Cortex-A9 1.2G CPU Dual/Quad core
		l 32K L1 instruction Cache and 1 MB L2 Cache l Cortex-A9 NEON MPE co-processor l Incorporate with VPU GPU3Dv4GPU2Dv2GPUVGASRC accelerator
System Memory		l 1G DDR3 SDRAM (2G optional) on board,32bit l 4G EMMC Flash (/8G/16G/32G optional)
Expansion Interface		CAN
Watchdog Timer		1*32bit WTD
Testing Connector		JTAG
Battery		Lithium 3V
Operation system		Android4.2; Linux2.6.32
I/O
I/O Interface			2xLAN			6xUSB	1XSATAII	1XMCU(power control)
			1XSDIO(Boot OS)			1xAudio	6XRS232	1xRS485
			1XHDMI			2XLVDS	1XVGA(RGB)	1X Camera
			1xGPIO (16bit)			1X USB OTG A	2xCAN	EMMC(Boot OS/App.)
Disk Storage			l SATAII 3.0Gbps hard-disk connector support big capacity storage device l SDIO slot support OS booting
COM			6 serial ports, 6 support 4-wire RS232 and 1 support 8-wire 9bit RS485
USB			1 USB2.0 OTG (update) and 6USB host up to 480Mbps
Audio			Audio MUX
Video			10 bit Digital Camera input support
GPIO			16 routes,8in/8out
Blue tooth			2.4G blue tooth module on board
Ethernet
Chipset				IEEE1588
Speed				2 X 1001000MB
Display
LVDS				Two 24-bit LVDS display port, up to 60fps 1080P decode
HDMI				HDMI 1.4 port
Mechanical and Environmental
Dimensions (L x W)					146mm*102mm
PCB Layer					8 Layers industrial level , RoHs
Operating temperature					-40~85 degree centigrade / 0~ 60 centigrade
Operating Humidity					5~95 percent relative humidity, non-condense
Power
Power Supply					Single 12V DC
Power consumption					Max 3W
