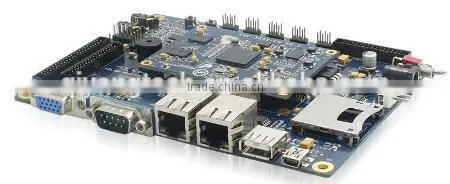

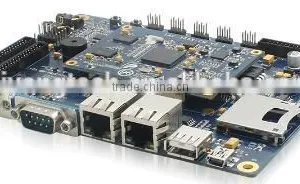

Premium developing board AM335X board MCU development board
- 100000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
D/C: | IAC-335X-Kit | Package: | BGA | Model Number: | IAC-335X-Kit |
Type: | Other | Brand Name: | QY | Place of Origin: | Zhejiang, China |
Product Description
Premium developing board AM335X board MCU development board
Linux 3.2 Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2 x 100 BtoB connectors lead various commonly used interfaces; The core module is compatible with all AM335x-ARM Cortex-A8 series processors, and the users can choose different types of appropriate processor chip to reduce cost(only for bulk users).
Premium developing board AM335X board MCU development board
Core Module(IAC-335X-CM)
Linux 3.2 CPU Processor
• TI AM335X, ARM Cortex-A8 core
• 720MHz
Linux 3.2 DDR RAM Memory
• 256MB DDR2 RAM, 133MHz, 16bit data bus(The batch can be extended to maximum 512MB)
Linux 3.2 FLASH Storage
• On-board 2MB Dataflash
• On-board 256M*8bits NandFlash could change a large capacity or industrial chip according to customer's requirement(The batch can be extended to maximum 64G)
Linux 3.2 Interfaces
• 2*100 B to B connectors
Linux 3.2 Other Onboard Resources
• AR8035 net chip, support 10M/100M/1000M Ethernet with RGMII mode
• Power management, single 5V input and output voltage of all core module.
Linux 3.2 PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Linux 3.2 Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Linux 3.2 Low Power Consumption
• 5V Dc power supply, low power consumption, <2W
Linux 3.2 Support OS
• Linux3.2.0 + QT4
• Android 4.0.3
Linux 3.2 Software & Technical Support
Premium developing board AM335X board MCU development board
Specification & Size
Linux 3.2 Working Parameters
• Humidity Range: 5%~ 95%, Non-Condensing
No. | Item | Function |
---|---|---|
Linux 3.2 Cross-compiler | arm-arago-linux-gnueabi.tar.gz | TI official offer |
Linux 3.2 U-boot | Version: U-boot 1.3.4 | Provided with U-boot source code |
Support writing into DataFlash and NandFlash start | ||
Support the serial writing, SD card, and TFTP network update | ||
Linux 3.2 Linux Kernel | Version: 3.2.0 | |
RTC driver, save and restore system time after power off | Provided with test program and source code | |
CAN bus driver | Provided with test program and source code | |
Nic driver | Provided with test program and source code | |
Audio driver | Provided with test program and source code | |
LCD driver, supporting 640×480, 800×600, 1024×768, 1280x800 resolution | Provided special LCD with debug service | |
Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
Serial driver | Provided with test program and source code | |
ADC driver | Provided with test program and source code | |
USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
SD card driver | Support large capacity storage SD card | |
File system | ||
Linux 3.2 UBI File System | Provided with source code | |
Linux 3.2 QT Routine | ||
QT development environment | QT routine | |
Linux 3.2 PC Development Environment | Provided with ubuntu 12.04, LinuxOS, VMware 9.0.2 virtual machine and supporting development environment build manual | Convenient for user to next develop |
Linux 3.2 Software & Technical Support
• Linux 3.2 System cut, according to customer's requirements
• Linux 3.2 Develop related drivers, according to the demand of customer(another pay)
• Linux 3.2 Customized development of back plane, according to customer's requirements(another pay)
Item | IAC-335X-Kit Cortex-A8 EK | ||
---|---|---|---|
Standard accessories | 1)12V/2A power supply (2)1-wire cross serial line (3)CD of DVD development (4)4-wire RS232 serial lines (5)packing box | ||
Linux 3.2 DVD resources | Linux 3.2 Linux | Compilers | Cross-compiler arm-arago-linux-gnueabi |
Tool software | Supporting terminal, writing, download tools | ||
Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Image file of MLO, u-boot, kernel and file system | ||
Test source code | Test routines and source codes of all interfaces | ||
System source code | Including bootloader, kernel, kernel, QT source code and madplay | ||
Schematic | Back plane's schematic in PDF format | ||
ubuntu | ubuntu-12.04-desktop-i386 | ||
Android | Tool software | Supporting terminal, writing, download tools, sync software | |
Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Image file of MLO, u-boot, kernel and file system | ||
Source code | Including u-boot, kernel and file system | ||
Schematic | Back plane's schematic in PDF format | ||
Linux 3.2 LCD options(another pay) | 4.3'LCD module + 4-wire resistive touch screen + USB cable | ||
5.6'LCD module + 4-wire resistive touch screen + USB cable | |||
6.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
7'LCD module + 4-wire resistive touch screen + USB cable | |||
8'LCD module + 4-wire resistive touch screen + USB cable | |||
10.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
Linux 3.2 Module options(another pay) | TTL to LVDS module | ||
TTL to VGA module | |||
Linux 3.2 Sales hotline | 0086-0571-87858811, 87858822 |
Premium developing board AM335X board MCU development board Application:
1. Linux 3.2 Technical Support for lifetime.
2. Linux 3.2 Open Source.
3. Linux 3.2 Customisation Service.
4. Linux 3.2 Supply stably and chronically.
