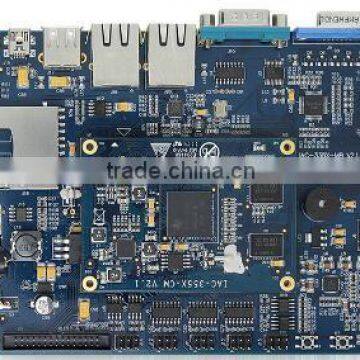

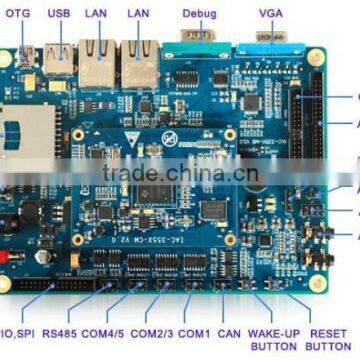

AM3354 Linux ARM board CAN interface USB HOST













Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2 x 100 BtoB connectors lead various commonly used interfaces; The core module is compatible with all AM335x-ARM Cortex-A8 series processors, and the users can choose different types of appropriate processor chip to reduce cost(only for bulk users).



Note: the AM3354 is the standard processor of IAC-335-X-Kit, which is to reduce the users' costs, and the rest of the models are compatible spell foot, only for bulk users!



AM3354 Linux ARM board CAN interface USB HOST

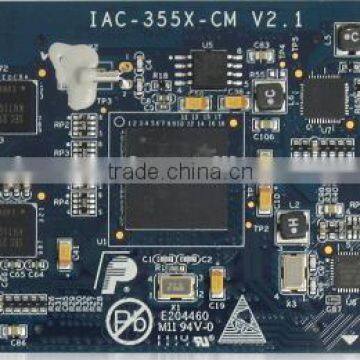

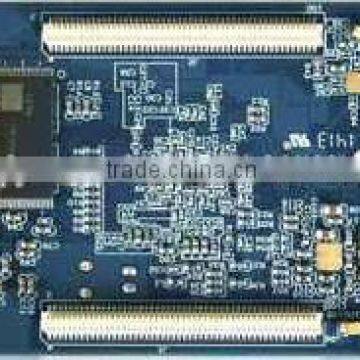

Core Module(IAC-335X-CM)

CPU Processor
• TI AM335X, ARM Cortex-A8 core
• 720MHz


DDR RAM Memory
• 256MB DDR2 RAM, 133MHz, 16bit data bus(The batch can be extended to maximum 512MB)


FLASH Storage
• On-board 2MB Dataflash
• On-board 256M*8bits NandFlash could change a large capacity or industrial chip according to customer's requirement(The batch can be extended to maximum 64G)


Interfaces
• 2*100  B to B connectors

Other Onboard Resources
• AR8035 net chip, support 10M/100M/1000M Ethernet with RGMII mode
• Power management, single 5V input and output voltage of all core module.

PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5V Dc power supply, low power consumption, <2W

Support OS
• Linux3.2.0 + QT4
• Android 4.0.3



AM3354 Linux ARM board CAN interface USB HOSTAM3354 Linux ARM board CAN interface USB HOSTAM3354 Linux ARM board CAN interface USB HOSTAM3354 Linux ARM board CAN interface USB HOST







Software & Technical Support



AM3354 Linux ARM board CAN interface USB HOST



AM3354 Linux ARM board CAN interface USB HOST







Specification & Size



• Using four floors of PCB high precision process



142 x 112.8 x 1.5mm



Working Parameters



• Working temperature: -20°C~ 70°C(batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing











Software Features



No.ItemFunction
Cross-compilerarm-arago-linux-gnueabi.tar.gzTI official offer
U-bootVersion: U-boot 1.3.4Provided with U-boot source code
Support writing into DataFlash and NandFlash start
Support the serial writing, SD card, and TFTP network update
Linux KernelVersion: 3.2.0
RTC driver, save and restore system time after power offProvided with test program and source code
CAN bus driverProvided with test program and source code
Nic driverProvided with test program and source code
Audio driverProvided with test program and source code
LCD driver, supporting 640×480, 800×600, 1024×768, 1280x800 resolutionProvided special LCD with debug service
Touch screen driver, supporting 4-wire resistive screenProvided with test program and source code
Serial driverProvided with test program and source code
ADC driverProvided with test program and source code
USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc.Support various USB external devices, provided with debug service
SD card driverSupport large capacity storage SD card
File system
UBI File SystemProvided with source code
QT Routine
QT development environmentQT routine
PC Development EnvironmentProvided with ubuntu 12.04, LinuxOS, VMware 9.0.2 virtual machine and supporting development environment build manualConvenient for user to next develop



Software & Technical Support



• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)







 Order Infomation



ItemIAC-335X-Kit Cortex-A8 EK
Standard accessories1)12V/2A power supply (2)1-wire cross serial line (3)CD of DVD development (4)4-wire RS232 serial lines (5)packing box
DVD resourcesLinuxCompilersCross-compiler arm-arago-linux-gnueabi
Tool softwareSupporting terminal, writing, download tools
Device manualMain components' datasheet of back plane
User manualAbout all development and use
Image fileImage file of MLO, u-boot, kernel and file system
Test source codeTest routines and source codes of all interfaces
System source codeIncluding bootloader, kernel, kernel, QT source code and madplay
SchematicBack plane's schematic in PDF format
ubuntuubuntu-12.04-desktop-i386
AndroidTool softwareSupporting terminal, writing, download tools, sync software
Device manualMain components' datasheet of back plane
User manualAbout all development and use
Image fileImage file of MLO, u-boot, kernel and file system
Source codeIncluding u-boot, kernel and file system
SchematicBack plane's schematic in PDF format
LCD options(another pay)4.3'LCD module + 4-wire resistive touch screen + USB cable
5.6'LCD module + 4-wire resistive touch screen + USB cable
6.4'LCD + 4-wire resistive touch screen + USB cable + inverter
7'LCD module + 4-wire resistive touch screen + USB cable
8'LCD module + 4-wire resistive touch screen + USB cable
10.4'LCD + 4-wire resistive touch screen + USB cable + inverter
Module options(another pay)TTL to LVDS module
TTL to VGA module
Sales hotline0086-0571-87858811, 87858822



AM3354 Linux ARM board CAN interface USB HOST Application:



• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.







 Why Qiyangtech?



1.Technical Support for lifetime.

2.Open Source.

3.Customisation Service.

4.Supply stably and chronically.
