Cortex-A5/536MHz power extension board/electric extension board industrial

1.Atmel SAMA5D3 CPU, 536MHz ARM Cortex-A5 core ARM v7-A ISC
2.With floating point arithmetic unit,64-bit inside Bus architecture and 32-bit wide DDR controller,operation frequency up to 166MHz,high accuracy calculation and rapid processing data application;
3. Can choose different type of processor to get different function combination, optimize costs, and all models PIN compatibility;
4.Can expand 7-ch port, 2-ch CAN bus, 2-ch Ethernet interface;
5. Whole board runs with high-speed, and power consumption is lower than 1 w, with functions of low power consumption mode,which is ideal for battery-powered applications;
6.Abundant external interfaces, can replace Atmel ARM9 series products, and upgrade the product perfect;
7.Support linux 3.6 and android 4.0.

Industrial Cortex-A5 CPU!

Processor performance improve greatly;
Provide a complete design data;
4 types CPU for different applicaiton:
Optimize resources, maximum interface demand ;
...

Professional Hardware Design!

Pay attention to details,thoroughly defeat learning board;
Professional wiring, easy on testing;
The core board: 6- layer PCB design;
The back plane: 4- layer PCB design;

…

Abundant Interface Resource!

Stable,abundant interface project;
UART(A5D35 with own 7-ch );
CAN(A5D345with own 2-chc);
LCD & VGA interface;
Multiplexing IO reserved;

…

Excellent Industrial Connection Device!

Core board connect with back plane stably;
2 x 100 pin 0.8 space;
Excellent electric performance and environment performance;

…

Cortex-A5/536MHz power extension board/electric extension board industrial ,ATMEL SAMA5D3X series Chip,Cortex-A5 Core,it has standard SAMA5D34,in order to reduce the cost, the rest of the types are pin compatible, only for the batch user.:

	SAMA5D31	SAMA5D33	SAMA5D34	SAMA5D35
LCDC	√	√	√
GMAC		√	√	√
EMAC	√			√
CAN0,CAN1			√	√
HSMCI2	√		√	√
UART0	√			√
UART1	√			√
TC1				√

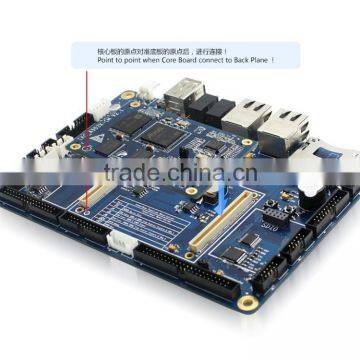

A5D3X Cortex A5 Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2*100 B to B connectors lead various commonly used interfaces; suitable for batch users.

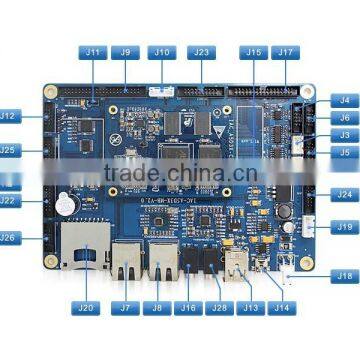

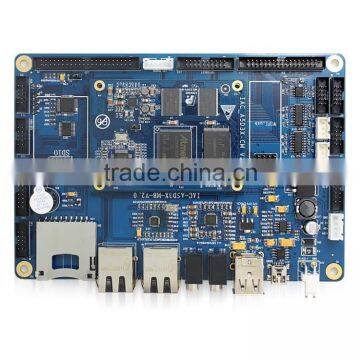

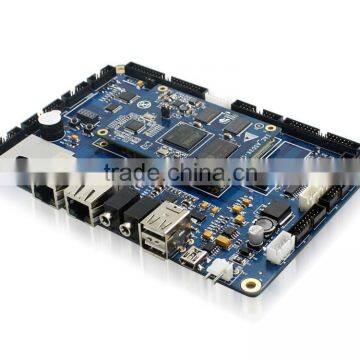

A5D3X Development Board is a general standard reference design board for A5 core board, with commonly used interfaces, such as TFT-LCD, touch screen, VGA, CAN bus, gigabit network interface, high-speed USB HOST, SD card, RS232485 serial port, audio, MIC, etc; support +6V~+23V wide range voltage power supply; can provide a complete design material for user to develop or custmize.

Cortex-A5/536MHz power extension board/electric extension board industrial Stamp Module Specifications

Cortex-A5/536MHz power extension board/electric extension board industrial Core Board Resource Introduction:

CPU Processor
• ATMEL SAMA5D3X,Cortex A5 core
• 536MHz
DDR RAM Memory
• 256MB DDR2 RAM,333MHz,32bit data bus
FLASH Storage
• On-board 2M DataFlash (DB45161D) A5D3X
• On-board 256M*8bits NandFlash (K9F2G08U0B)could change a large capacity or industrial chip according to customer's requirement
• 2*100 pin 0.8mm spacing B to B
Other Onboard Resource
• DM9162 net chip,support 10M/100M Ethernet with RGMII mode
• Power management, provide 1.8V, 3.3V,5.0V Voltage input
PCB Specification & Size
• Using 6-lay PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working temperature
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5v Dc power supply, low power consumption, <1W
OS Support
• Linux 3.6.9 + QT4
• Android 4

Software & Technical Support

Order information:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

Item

IAC-A5D3X-Kit

Standard accessories

(1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)4-wire RS232 serial line (5)mini USB wire (6) packing box

DVD resources

Linux

Compilers

Cross-compiler arm-arago-linux-gnueabi

Tool software

Supporting terminal, writing, download tools

Device manual

Main component's datasheet of back plane

User manual

About all development and use

Image file

bootstarp,u-boot, kernel and file system

Test source code

Test routines and source codes of all interfaces

System source code

Including bootloader, kernel, file system, QT source code and madplay

Schematic

Back plane's schematic in PDF format

Packaging library

Component packaging library of evaluation board

LCD options(another pay)

4.3' LCD module + 4-wire resistive touch screen + USB cable

5.6' LCD module + 4-wire resistive touch screen + USB cable

6.4' LCD+ 4-wire resistive touch screen + USB cable + inverter

7' LCD module + 4-wire resistive touch screen + USB cable

8' LCD module + 4-wire resistive touch screen + USB cable

10.4' LCD+ 4-wire resistive touch screen + USB cable + inverter

Module options(another pay)

TTL to LVDS module

TTL to VGA module

Sales hotline

86-571-87858811,86-571-87858822

Cortex-A5/536MHz power extension board/electric extension board industrial Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.

Our advantage:
