High Cost Effective Smart Board for Sale/ARM9 Processor
US$ 100 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
D/C:
QY-1808EK
Package:
BGA
Model Number:
QY-1808EK
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Running Boards/Ti AM1808 Processor/ARM926EJ-S CoreUS$ 100 - 200MOQ: 1 Piece -
TI AM1808 Industrial Extension Board/ARM926EJ-S Power Extension BoardUS$ 100 - 200MOQ: 1 Piece
-
TI AM1808 Logic Board/128M DDR2 SDRAM/128MB NandFlashUS$ 100 - 200MOQ: 1 Piece
-
ARM Cortex-A5 Development Board/arm in Embedded SystemUS$ 100 - 255MOQ: 1 Piece
-
High Quality ARM Cortex-A5 Running Boards/logic BoardUS$ 100 - 255MOQ: 1 Piece
D/C
QY-1808EK
Package
BGA
Model Number
QY-1808EK
Brand Name
QY
Place of Origin
Zhejiang, China

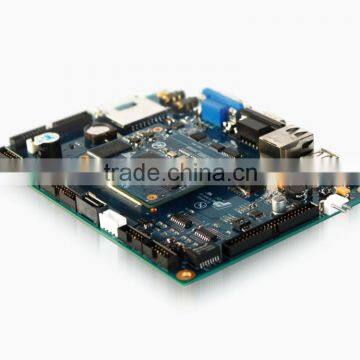

High cost effective smart board for sale/ARM9 processor

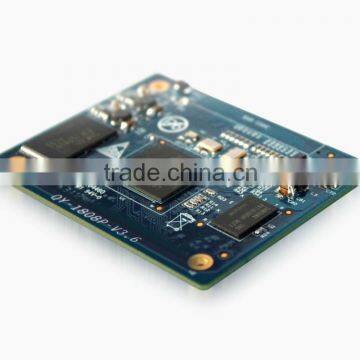

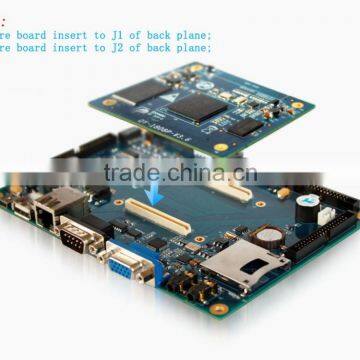

Core Module is designed by six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance;together with CPU, DDR2, NandFlash, PHY network chip, crystal oscillator etc.Through the high quality B2B connector leading to 200 signal pin, which is fully extended all the hardware resources of AM1808, the user can reuse pins to combine different interfaces, and customize the actual needs of the base board.
CPU Processor
• TI AM1808 CPU, ARM926EJ-S Core
• 456MHz
SDRAM Memory
• 128MB SDRAM
FLASH Storage
• On-board 128M*8bits NandFlash(could change a large capacity or industrial chip according to customer's requirement)
Interfaces
• 2 pieces 2*50PIN B2B connectors: simple, convenient, high reliability
Other Onboard Resources
• On-board LAN8720 network chip, support 10M/100M Ethernet with MII mode
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5v Dc power supply, low power consumption, <2W
Support OS
• Linux2.6.33
• WindowsCE 6.0
Software & Technical Support

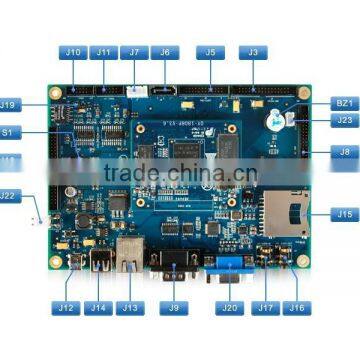

| No. | Item | Function |
|---|---|---|
| J3 | AD/DA-digital quantity extension interface | GPIO SPI extension |
| J5 | PRU interface | 2 PRU real time units, can be extended to 8 serial ports |
| J6 | SATA interface | External SATA keyboard,etc. |
| J7 | SATA power supply interface | SATA keyboard power supply |
| J8 | EMI bus interface | Expand SRAM and other peripherals |
| J9 | COM0 serial interface | Serial port 0 |
| J10 | COM1 serial interface | RS232, support flow control/isolation |
| J11 | COM2 serial interface | RS232,support flow control/isolation |
| J12 | USB0 interface | USB 2.0 OTG interface |
| J13 | Network interface | 10M/100M adaptive full duplex |
| J14 | USB1 interface | USB 1.1 HOST interface |
| J15 | SD card interface | SD card storage |
| J16 | Audio output interface | Linear audio output |
| J17 | Audio input interface | Linear audio input |
| J18 | LCD interface | LCD screen interface |
| J19 | LCD power supply | LCD interface power supply |
| J20 | VGA interface | Standard VGA output |
| J22 | Power input interface | Eval. board power input |
| S1 | Dial switch | Boot mode |
| BT1 | Backup battery | System clock power supply |
| BZ1 | Buzzer | Alarm prompt device |
PCB Specification & Size
• Using four floors of PCB high precision process
• 142 x 112 x 1.5mm
• 142 x 112 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C(batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
• Humidity Range: 5%~ 95%, Non-Condensing
Linux 2.6 Software Features
| Cross-compiler | arm-arago-linux-gnueabi.tar.gz | arm-arago-linux-gnueabi-gcc 4.5 |
| U-boot | U-boot | Provided with bootloader source code |
| Support writing into NandFlash start | ||
| Support SAM-BA software with usb writing and TFTP network update | ||
| Linux Kernel | Version: 2.6.33 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| EBI driver | Provided with test program and source code | |
| I2C driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| ADC driver | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| GPIO driver | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| SD card driver | Support large capacity storage SD card | |
| File System | Jffs2 file system | Provided source code |
| PC Development Environment | Provided with ubuntu 12.04 Linux OS, VMware 9.0.2 virtual machine and supporting development environment build manual | Convenient for user to next develop |
WindowsCE 6.0 Software Features
| Bootloader | Support writing into NandFlash start | |
| BSP(Open Source) | RTC driver, save and restore system time after power off | Provided with test program and source code |
| Registry saving, support saving registry information when electricity adjusted | Convenient for user to debug | |
| SD card driver | Largest capacity support 4G | |
| Audio driver, support audio input/output and MIC input | Provided with test program and source code | |
| Nic driver, 10/100M self-adaptive, can be expanded gigabit nic | Provided with test program and source code | |
| IO interruption | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| SPI driver | Provided with test program and source code | |
| 232, 485 serial driver test | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| PC Development Environment | Provided with supporting EVC development tools, Wince 6.0 plug-in | Convenient for user to next develop |
High cost effective smart board for sale/ARM9 processor Technical Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
High cost effective smart board for sale/ARM9 processor Order Infomation
| Item | QY-1808EK | ||
|---|---|---|---|
| Standard accessories | 1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)2-wire RS232 serial lines (5)1 wire USB download cable (6)packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-arago-linux-gnueabi-gcc |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Image file of Bootloader,kernel and file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
|
Including Bootloader, kernel, file system and QT source code | ||
| Schematic | Back plane's schematic in PDF format | ||
| Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Firstboot, Eboot, NK image file | ||
| Test source code | Test routines and source codes of all interfaces | ||
| BSP package | Related BSP board-level supporting package | ||
| SDK | Related SDK | ||
| Schematic | Back plane's schematic in PDF format | ||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | +86-571-87858811, 87858822 | ||
High cost effective smart board for sale/ARM9 processor Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
