Customizable Freescale I.MX6 System On Module And I.MX6 Carrier Board

If the recent board resource does not satisfy you,please contact us for customization service(ODM/OEM service).

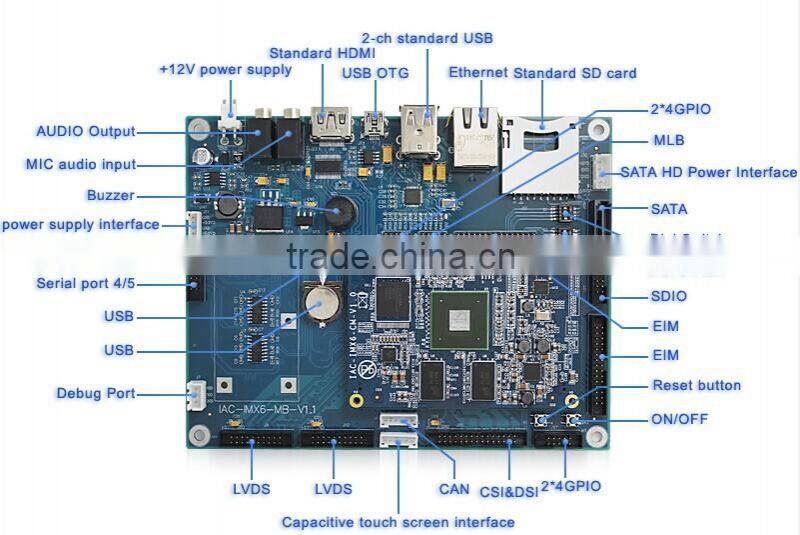

  Freescale i.MX6 System On Module +I.MX6 Carrier Board :designed by 4-layer PCB;expand LVDS,network,HDMI,CAN,matrix keypad,SATA,high speed USB HostDevice,SD card,RS232RS485,audio,etc

Freescale i.MX6 System On Module +I.MX6 Carrier Board :designed by 8-layer PCB; card size;integrated with CPU,DDR3 RAM,Flash,network;5V DC power supply,low power consumption;B to B (3 x 100 )connectors boot various commonly used interfaces;The users can choose different types of appropriate processor chip to reduce cost(only for bulk users).

Freescale i.MX6 System On Module Specifications:

CPU Processor

• Freescale i.MX6 processor,ARM Cortex A9 core,1.0GHz,compatible with solo/dual/quad core
• 1MBL2 cache,32KB instructions and data cache,NEON SIMD media accelerator

SDRAM Memory

• DDR3 SDRAM,4*256MB,1GB

FLASH Storage

• 4GB EMMC

Network

• AR8035 net chip adopts RGMII mode,support 10M/100M/1000M adaptative network port

Communication Interfaces

• 3-ch RS232 serial pots(Include:1-ch debugging serial pot,2-ch RS232 multiplex with RS485)
• 1-ch USB high speed OTG,4-ch USB HOST(Include:1-ch MIN_PCIE interface)
• 2-ch CAN interfaces,support CAN2.0 protocol(2-ch CAN driver output)
• 1-ch 10/100/1000Mbps industrial ethernet,with ACT/LINK indicator.

  Freescale i.MX6 System On Module +I.MX6 Carrier Board

  Freescale i.MX6 System On Module +I.MX6 Carrier Board

Linux Software Features

  Freescale i.MX6 System On Module +I.MX6 Carrier Board

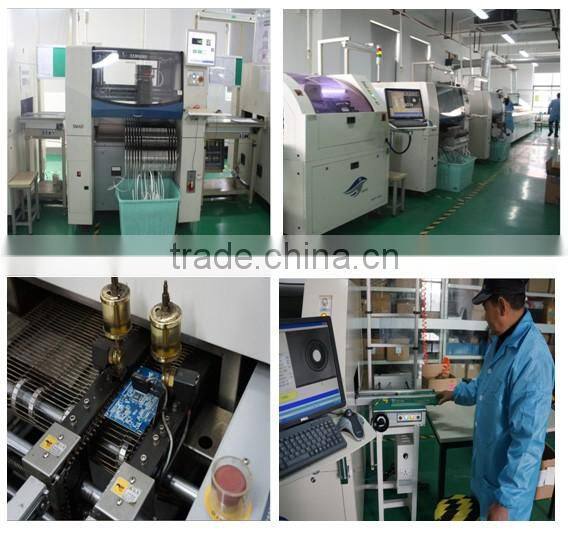

SMT Factory

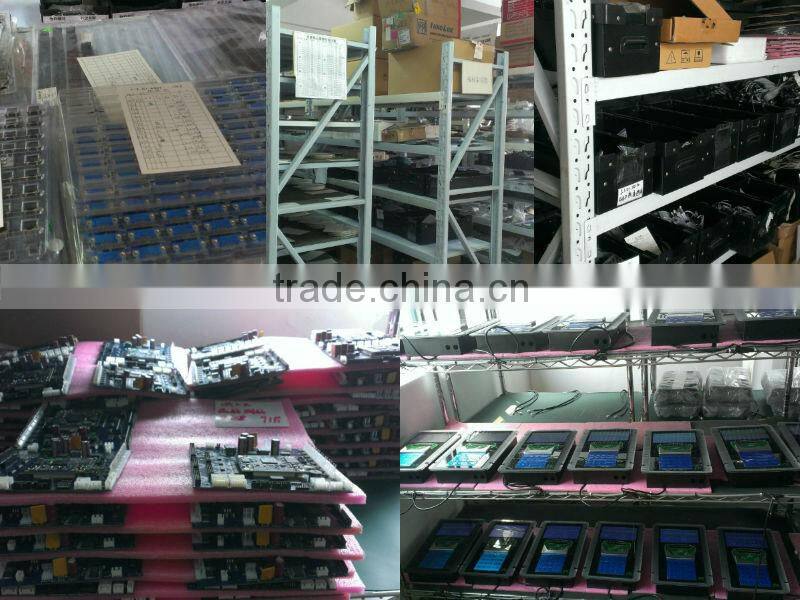

Accessory Warehouse
