Used In System Security ATMEL Cortex-A5 ARM Ethernet Board

Zhejiang Qiyang Intelligent Technology Co., Ltd.
Used In System Security ATMEL Cortex-A5 ARM Ethernet Board thumbnail-1
Used In System Security ATMEL Cortex-A5 ARM Ethernet Board photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
QY
Model Number:
Cortex-A5
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name QY
Model Number Cortex-A5

Specifications

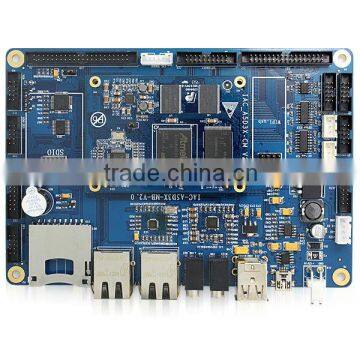

Used In System Security ATMEL Cortex-A5 ARM Ethernet Board1.ATMEL SAMA5D3X,Cortex A5 core 536MHz
2.256MB DDR2 RAM



  Used In System Security ATMEL Cortex-A5 ARM Ethernet Board

 1.Atmel SAMA5D3 CPU, 536MHz ARM Cortex-A5 core ARM v7-A ISC
2.With floating point arithmetic unit,64-bit inside Bus architecture and 32-bit wide DDR controller,operation frequency up to 166MHz,high accuracy calculation and rapid processing data application;
3. Can choose different type of processor to get different function combination, optimize costs, and all models PIN compatibility;
4.Can expand 7-ch port, 2-ch CAN bus, 2-ch Ethernet interface;
5. Whole board runs with high-speed, and power consumption is lower than 1 w, with functions of low power consumption mode,which is ideal for battery-powered applications;
6.Abundant external interfaces, can replace Atmel ARM9 series products, and upgrade the product perfect;
7.Support linux 3.6 and android 4.0.



Industrial Cortex-A5 CPU!

Processor performance improve greatly;
Provide a complete design data;
4 types CPU for different applicaiton:
Optimize resources, maximum interface demand ;
...

Professional Hardware Design!

Pay attention to details,thoroughly defeat learning board;
Professional wiring, easy on testing;
The core board: 6- layer PCB design;
The back plane: 4- layer PCB design;

…

Abundant Interface Resource!

Stable,abundant interface project;
UART(A5D35 with own 7-ch );
CAN(A5D345with own 2-chc);
LCD & VGA interface;
Multiplexing IO reserved;

…

Excellent Industrial Connection Device!

Core board connect with back plane stably;
2 x 100 pin 0.8 space;
Excellent electric performance and environment performance;

…

A5D3X-Cortex A5 Development Board ,ATMEL SAMA5D3X series Chip,Cortex-A5 Core,it has standard SAMA5D34,in order to reduce the cost, the rest of the types are pin compatible, only for the batch user.:

 SAMA5D31SAMA5D33SAMA5D34SAMA5D35
LCDC√√√
GMAC √√√
EMAC√  √
CAN0,CAN1  √√
HSMCI2√ √√
UART0√  √
UART1√  √
TC1   √

A5D3X Cortex A5 Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2*100 B to B connectors lead various commonly used interfaces; suitable for batch users.


A5D3X Development Board is a general standard reference design board for A5 core board, with commonly used interfaces, such as TFT-LCD, touch screen, VGA, CAN bus, gigabit network interface, high-speed USB HOST, SD card, RS232485 serial port, audio, MIC, etc; support +6V~+23V wide range voltage power supply; can provide a complete design material for user to develop or custmize.



  Used In System Security ATMEL Cortex-A5 ARM Ethernet Board Stamp Module Specifications

ARM Dev Board Resource Introduction:

CPU Processor
• ATMEL SAMA5D3X,Cortex A5 core
• 536MHz
DDR RAM Memory
• 256MB DDR2 RAM,333MHz,32bit data bus
FLASH Storage
• On-board 2M DataFlash (DB45161D) A5D3X
• On-board 256M*8bits NandFlash (K9F2G08U0B)could change a large capacity or industrial chip according to customer's requirement
• 2*100 pin 0.8mm spacing B to B
Other Onboard Resource
• DM9162 net chip,support 10M/100M Ethernet with RGMII mode
• Power management, provide 1.8V, 3.3V,5.0V Voltage input
PCB Specification & Size
• Using 6-lay PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working temperature
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5v Dc power supply, low power consumption, <1W
OS Support
• Linux 3.6.9 + QT4
• Android 4



Used In System Security ATMEL Cortex-A5 ARM Ethernet Board Used In System Security ATMEL Cortex-A5 ARM Ethernet Board

  Used In System Security ATMEL Cortex-A5 ARM Ethernet Board  Software & Technical Support

Used In System Security ATMEL Cortex-A5 ARM Ethernet Board


 Used In System Security ATMEL Cortex-A5 ARM Ethernet Board  Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
ItemIAC-A5D3X-Kit
Standard accessories(1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)4-wire RS232 serial line (5)mini USB wire (6) packing box
DVD resourcesLinuxCompilersCross-compiler arm-arago-linux-gnueabi
Tool softwareSupporting terminal, writing, download tools
Device manualMain component's datasheet of back plane
User manualAbout all development and use
Image filebootstarp,u-boot, kernel and file system
Test source codeTest routines and source codes of all interfaces
System source code
Including bootloader, kernel,  file system, QT source code and madplay
SchematicBack plane's schematic in PDF format
Packaging libraryComponent packaging library of evaluation board
LCD options(another pay)4.3' LCD module + 4-wire resistive touch screen + USB cable
5.6' LCD module + 4-wire resistive touch screen + USB cable
6.4' LCD+ 4-wire resistive touch screen + USB cable + inverter
7' LCD module + 4-wire resistive touch screen + USB cable
8' LCD module + 4-wire resistive touch screen + USB cable
10.4' LCD+ 4-wire resistive touch screen + USB cable + inverter
Module options(another pay)TTL to LVDS module
TTL to VGA module
Sales hotline86-571-87858811,86-571-87858822

  Used In System Security ATMEL Cortex-A5 ARM Ethernet Board  Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.


[Notes]

Have an intention & interest in them. Join us.

  • pay pal acceptable

Need Hardware Manual &More Information& Consultant ,please add my skype:sally_ma.198907 (24 hours online) Or e-mail me :trade #
