Specifications
CPU Module with AT91SAM92631.ATMEL AT91SAM9263 CPU
2.200MHz ARM9 processor
3.64MB SDRAM
4.Support SD card, CF card, IDE
CPU Module with AT91SAM9263 Specifications
Core Module is designed by 6-floor PCB; the volume is only card size(80*53mm); together with CPU, SDRAM, NandFlash, DataFLash; using 3.3V dc power supply, low power consumption; B to B(2*100)connectors lead various commonly used interfaces; suitable for the customers those who not plan to design CPU board by themselves next devolop.
CPU Module with AT91SAM9263 Specifications
CPU Processor
• ATMEL AT91SAM9263, ARM926EJ-S Core
• 200MHz
SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM
FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)
• Could change large capacity or industrial chip according to customer's request
Interfaces
• 2*100 pin 0.8mm spacing B to B (the connectors are 350°C high temperature-tested and seismic-tested)
Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 80x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 3.3V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30 + QT QT2.3 default/ QT4 has supported
• Windows 5.0, WindowsCE 6.0
CPU Module with AT91SAM9263 Software & Technical Support

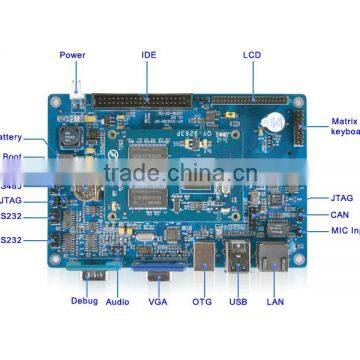

| No. | Item | Function |
|---|---|---|
| J4 | AUDIO interface | Audio input/output |
| J5 | COM1 | 5-wire RS232 serial port |
| J6 | COM2/3 | 3-wire RS232 serial port |
| J7 | Debug serial port |
Download, communication |
| J8 | 485 interface | Development and application of 485 bus |
| J9 | 8*8 matrix keypad interface | Matrix keypad interface, can also used as I/O mouth |
| J10 | CAN interface | CAN 2.0 |
| J12 | LCD interface | Expand LCD interface, with 4-wire touch screen interface |
| J14 | VGA interface | VGA video output |
| J16 | Ethernet interface | 10/100M self-adaptive network |
| J17 | IDE interface | IDE equipment connection |
| J18 | CF card interface (back) | CF card storage application |
| J19 | SD card interface (back) | SD card storage application |
| J20 | USB Device | Use for program download, USB communication |
| J22 | USB Host *2 | Use for USB host application |
| J23 | Power interface | +12V power supply, support +6 ~+25V wide range voltage |
| J24 | JTAG interface | Simulation, debugging |
| K1 | Reset button | System reset |
| BT1 | Backup battery | System clock power supply |
Linux Software Features
| Cross-compiler | arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2 | arm-linux-gcc 4.2 |
| U-boot | Version: U-boot 1.3.4 | Provided with bootstrap, U-boot source code |
| Support writing into DataFlash or NandFlash start | ||
| Support SAM-BA software with USB writing and TFTP network update | ||
| Linux Kernel | Version: 2.6.30 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| CAN driver | Provided with test program and source code | |
| Ethernet driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| LCD driver, supporting 320*240, 640*480, 800*600,1024*768 resolution | Provided special LCD with debug service | |
| Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| Buzzer driver | Provided with test program and source code | |
| GPIO driver | Provided with test program and source code | |
| 8*8 matrix keypad driver | Provided with test program and source code | |
| USB driver | Support various USB external devices, provided with debug service | |
| IDE driver | Support various IDE equipment | |
| CF card driver | Support large capacity CF card | |
| SD card driver | Support large capacity SD card storage | |
| File System | Jffs2 file system | Provided with source code |
| PC Development Environment | Provided ubuntu 10.10 development environment and VM7.1.4 virtual machine | Provided with development environment build manual |
WindowsCE 6.0 Software Features
| Bootloader | support writing into DataFlash or NandFlash start | Optional |
| support user-defined boot logo | Up to 1024*768 resolution 24 bmp image | |
| BSP Source Code | ||
| BSP Open Source
|
RTC diver, save and restore system time after power off | Provided with test program and source code |
| Registry saving, support saving registry information when electricity adjusted | Convenient for user to debug | |
| LCD driver, support 320*240, 640*480, 800*600, 1024*768 resolution | Provided special LCD with debug service | |
| Touch screen driver, support 4-wire resistive screen | Provided with test program and source code | |
| SD card driver, support 2-wire SD card | Biggest support 4G | |
| Audio driver, support audio input/output and MIC input | Provided with test program and source code | |
| Nic driver, 10/100M self-adaptive, can be expanded gigabit nic | Provided with test program and source code | |
| CF card driver | Support large capacity CF card | |
| IDE driver | Support various IDE equipment | |
| Serial driver | Provided with 232, 485 test program and source code | |
| support 8*8 matrix keypad, also can used as GPIO | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc. | According to user's selection, debug driver | |
| PC Development Environment
|
Wince6.0: Provided with supporting VS.NET 2005 development tools, Wince 6.0 plug-in Wince5.0: Provided with supporting EVC development tools, Wince 5.0 plug-in |
Convenient for user to next develop |
| Item | QY-9263K | ||
|---|---|---|---|
| Standard accessories | (1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)4-wire RS232 serial line (5) USB cable (6)exquisite packing box | ||
| CD resources | Linux |
Compilers |
Cross-compiler arm-linux-gcc |
Tool software |
Supporting terminal, writing, download tools |
||
Device manual |
Main components' datasheet of back plane |
||
User manual |
About all development and use |
||
Image file |
Bootstarp, u-boot, kernal, image file of file system |
||
Test source code |
Test routines and source codes of all interfaces |
||
System source code |
Including bootstrap, u-boot, kernel, file system and QT source code |
||
Schematic |
Back plane's schematic in PDF format |
||
Packaging library |
Component packaging library of evaluation board |
||
Windows CE |
Tool software |
Supporting terminal, writing, download tools, sync software |
|
Device manual |
Main components' datasheet of back plane |
||
User manual |
About all development and use |
||
Image file |
Firstboot, Eboot, NK image file |
||
Test source code |
Test routines and source codes of all interfaces |
||
BSP package |
Related BSP board-level supporting package |
||
SDK |
Related SDK |
||
CPU Module with AT91SAM9263 Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
