Home > Electrical & Electronics > Integrated Circuit > General-purpose Integrated Circuit > TI AM335X CPU ARM Development Board ARM Cortex-A8 Core 720MHz
TI AM335X CPU ARM Development Board ARM Cortex-A8 Core 720MHz
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
IAC-335X-EVB
Type:
Other, TI
Brand Name:
QY
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TI AM1808 Development Board +ARM Core Board Support LinuxNegotiableMOQ: 1 Piece -
ATMEL AT91SAM9260 ARM Development KitUS$ 1 - 2MOQ: 1 Piece
-
ATMEL 9G45 Development Board 400MHz CPUNegotiableMOQ: 1 Piece
-
Atmel9260 Embedded ARM Starter KitUS$ 1 - 2MOQ: 1 Piece
-
TI AM335XCortex-A8 ARM Starter KitNegotiableMOQ: 1 Piece
Model Number
IAC-335X-EVB
Type
Other, TI
Brand Name
QY
Place of Origin
Zhejiang, China
Specifications
ARM development board1. TI AM335X, ARM Cortex-A8 core
2. 256MB DDR2 RAM
3. 2MB Data flash
4. 256M Nand Flash
TI AM335X ARM Development Board Specifications

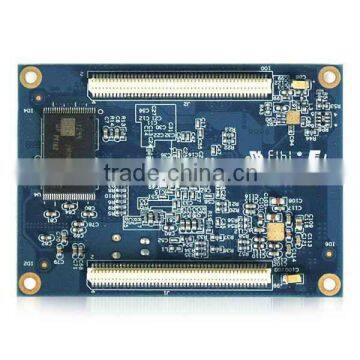

Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2 x 100 BtoB connectors lead various commonly used interfaces; The core module is compatible with all AM335x-ARM Cortex-A8 series processors, and the users can choose different types of appropriate processor chip to reduce cost(only for bulk users).
Note: the AM3354 is the standard processor of IAC-335-X-Kit, which is to reduce the users' costs, and the rest of the models are compatible spell foot, only for bulk users!
TI AM335X ARM Development Board Core Module Specifications

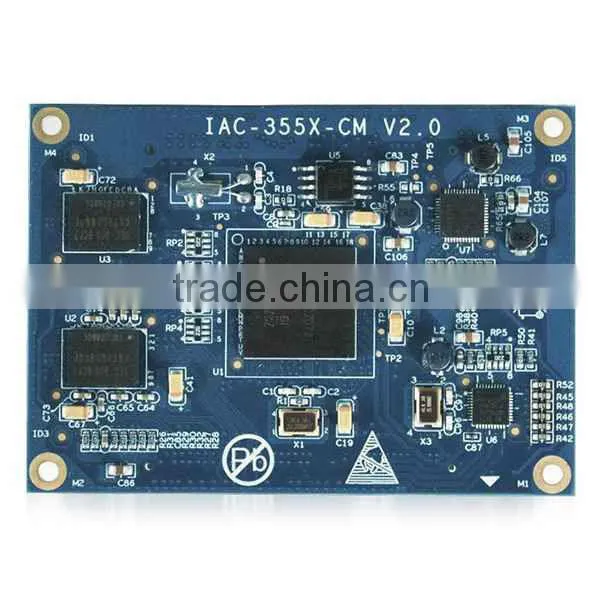

Core Module(IAC-335X-CM)Specifications
CPU Processor
• TI AM335X, ARM Cortex-A8 core
• 720MHz
DDR RAM Memory
• 256MB DDR2 RAM, 133MHz, 16bit data bus(The batch can be extended to maximum 512MB)
FLASH Storage
• On-board 2MB Dataflash
• On-board 256M*8bits NandFlash could change a large capacity or industrial chip according to customer's requirement(The batch can be extended to maximum 64G)
Interfaces

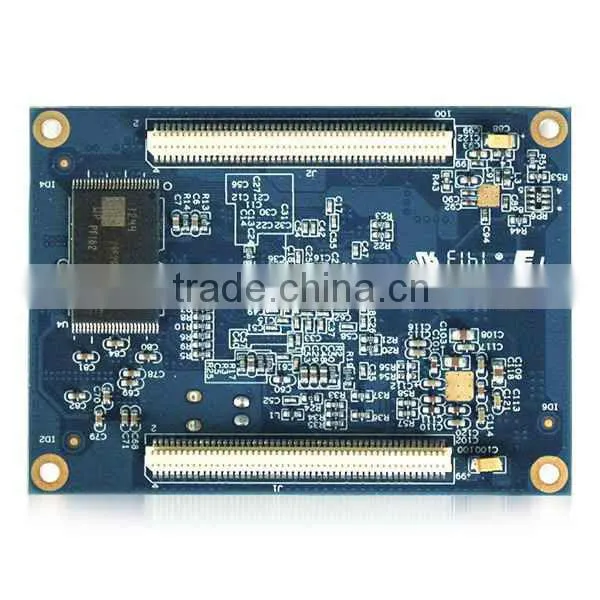

• 2*100 B to B connectors
Other Onboard Resources
• AR8035 net chip, support 10M/100M/1000M Ethernet with RGMII mode
• Power management, single 5V input and output voltage of all core module.
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5V Dc power supply, low power consumption, <2W
Support OS
• Linux3.2.0 + QT4
• Android 4.0.3
TI AM335X ARM Development Board Core Module Software & Technical Support

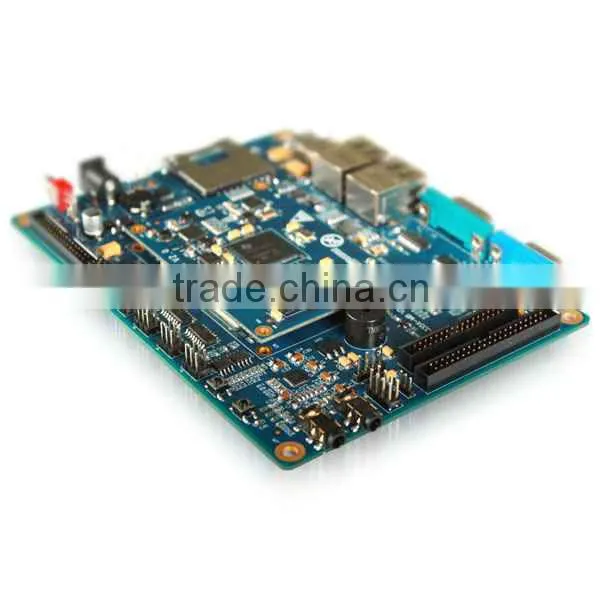

| No. | Item | Function |
|---|---|---|
| J3 | Audio interface | Audio input/output |
| J4 | Audio output | Double sound channel output |
| J5 | Audio input | Double sound channel input |
| J6 | ADC interface | 4 AD input |
| J7 | LCD interface | LCD screen interface |
| J8 | LCD power supply | LCD interface power supply |
| J9 | VGA interface | VGA video output |
| J10 | Debug serial port | Download, communication |
| J11 | COM2/3 | 3-wire serial interface |
| J12 | COM4/5 | 3-wire serial interface |
| J13 | COM1 | 3-wire serial interface |
| J14 | 485 interface | 2-wire RS485 |
| J15 | CAN interface | CAN bus |
| J16 | USB Device | USB OTG |
| J17 | USB host | USB 2.0 host |
| J18 | SD card interface | SD/MMC card interface |
| J19 | Ethernet interface 1 | 10/100/1000M Ethernet |
| J20 | Ethernet interface 2 | 10/100/1000M Ethernet |
| J21 | GPIO, SPI interface | Expand peripherals |
| J22 | GPMC interface | Expand peripherals |
| J23 | Power input interface | Eval. board power input |
| J24 | Power interface | 12V power input optional interface |
| K1 | Wake-up button | Sleep state activation |
| K2 | Reset button | System reset |
| S3 | Power switch | Power supply control |
PCB Specification & Size
• Using four floors of PCB high precision process
• 142 x 112.8 x 1.5mm
• 142 x 112.8 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C(batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
• Humidity Range: 5%~ 95%, Non-Condensing
Linux Software Features
| No. | Item | Function |
|---|---|---|
| Cross-compiler | arm-arago-linux-gnueabi.tar.gz | TI official offer |
| U-boot | Version: U-boot 1.3.4 | Provided with U-boot source code |
| Support writing into DataFlash and NandFlash start | ||
| Support the serial writing, SD card, and TFTP network update | ||
| Linux Kernel | Version: 3.2.0 | |
| RTC driver, save and restore system time after power off | Provided with test program and source code | |
| CAN bus driver | Provided with test program and source code | |
| Nic driver | Provided with test program and source code | |
| Audio driver | Provided with test program and source code | |
| LCD driver, supporting 640×480, 800×600, 1024×768, 1280x800 resolution | Provided special LCD with debug service | |
| Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
| Serial driver | Provided with test program and source code | |
| ADC driver | Provided with test program and source code | |
| USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
| SD card driver | Support large capacity storage SD card | |
| File system | ||
| UBI File System | Provided with source code | |
| QT Routine | ||
| QT development environment | QT routine | |
| PC Development Environment | Provided with ubuntu 12.04, LinuxOS, VMware 9.0.2 virtual machine and supporting development environment build manual | Convenient for user to next develop |
IAC-335X-Kit Development Board Software & Technical Support
• The problems that customer encounter in the process of development on the products• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)
IAC-335X-Kit Development Board Order Infomation
| Item | IAC-335X-Kit Cortex-A8 EK | ||
|---|---|---|---|
| Standard accessories | 1)12V/2A power supply (2)1-wire cross serial line (3)CD of DVD development (4)4-wire RS232 serial lines (5)packing box | ||
| DVD resources | Linux | Compilers | Cross-compiler arm-arago-linux-gnueabi |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Image file of MLO, u-boot, kernel and file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Including bootloader, kernel, kernel, QT source code and madplay | ||
| Schematic | Back plane's schematic in PDF format | ||
| ubuntu | ubuntu-12.04-desktop-i386 | ||
| Android | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Image file of MLO, u-boot, kernel and file system | ||
| Source code | Including u-boot, kernel and file system | ||
| Schematic | Back plane's schematic in PDF format | ||
| LCD options(another pay) | 4.3'LCD module + 4-wire resistive touch screen + USB cable | ||
| 5.6'LCD module + 4-wire resistive touch screen + USB cable | |||
| 6.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
| 7'LCD module + 4-wire resistive touch screen + USB cable | |||
| 8'LCD module + 4-wire resistive touch screen + USB cable | |||
| 10.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | 0571-87858811, 87858822 | ||
IAC-335X-Kit Development Board Application:
• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.
