Home > Products > Push Button Switch > 16mm anti-vandal ring illuminated metal led latching push button switch
16mm anti-vandal ring illuminated metal led latching push button switch
USD $1.65 - $3.1
/ Piece
120 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- Shanghai Ningbo Guangzhou
- Credit Card
You May Like
-
New 913A0123H01 oil level sensor, York screw compressor oil level control fault repair
-
Side press sinking board switch, game controller, light touch switch, handle button 3 * 4 * 3.5, side press smiling face switch
-
Original C&K genuine PTS647SK38SMTR2 LFS 4.5x4.5x3.8-250GF SMT switch
-
Original C&K genuine PTS645SK43SMTR92 LFS 6X6X4.3H 260GF SMT switch
-
Original C&K genuine PTS641TK25SMTR2LFS 6.2x6.2x2.5 five pin 250GF SMT switch
-
USB3.0 two-way switch usb converter
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | TEKAIBIN | Model Number: | GQ16F-10/E/J |
| Protection Level: | IP65, IK08 | Max. Current: | 2A | Max. Voltage: | 36VDC |
Product Description

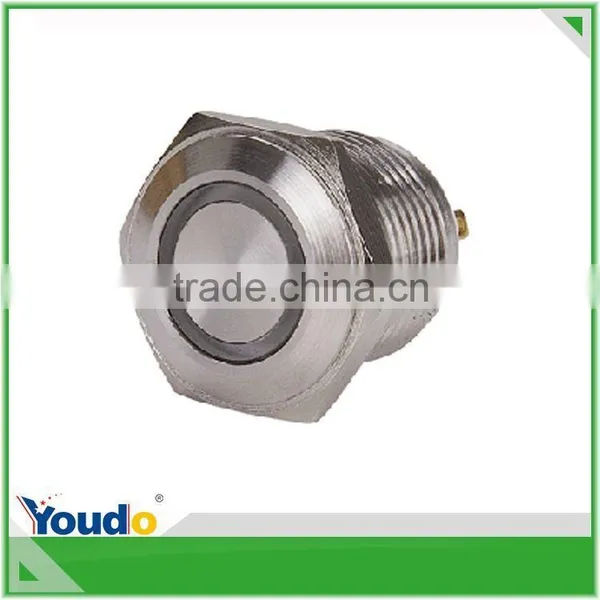

16mm anti-vandal ring illuminated metal led latching push button switch
Mounting hole: Φ16mm diameter
The Front Shape: Flat Round
Switching: NO.1
Max. Switch Rating: 2A/36vdc
Dielectric Strength: 2000VAC
Mechanical Life: 1,000,000 cycles
Electric Life: 50,000 cycles
Operation Pressure: about 4N
IP Degree: IP65
Crust Material: Stainless Steel/ Nickel-plated brass
Button material: Stainless Steel/ Nickel-plated brass
Base: PBT
LED Type: Ring Illuminated( LED)
Rated Voltage: 6V/12V/24V/36V
Color: R,G,Y,O,B,W
LED Life: 40,000 hours
RoHS: Made to order
Contact Us
- Yueqing Youdo Trade Co., Ltd.
- Contact nameRichard Zheng
- Phone86-577-61757366
- AddressNo. 261, Weishiqi Road, Yueqing Economic Development Zone
