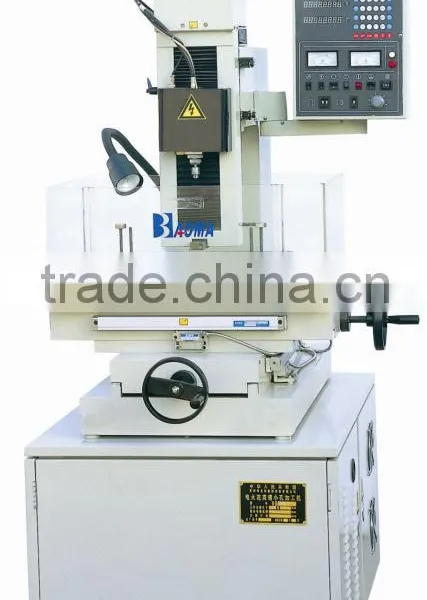

Highly active and accuracy wire edm drilling machine DB703:
Product Description
Table Size: 436x316mm
Table Travel: 300x400mm
Drilling depth: 0-300mm
Drill Diameter: 0.3-3.0mm
Drill Speed: 60mm/min
Small Hole Drilling EDM Machine (dB703) characteristics:
* Can drill deep hole with diameters 0.3mm ~ 3mm (the depth-diameter ratio is 300: 1)
* The speed of drilling hole is 30mm~60mm depth per minute (it is different for different material)
* Can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth etc.
* Can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminium and hard alloy etc
* Can drill on oblique and curved surface directly
* Can easily erode the drill and screw tap etc which is broken in the workpiece and not destroy the screw thread of the holes
* The working water can be normal water or saponification fluid and no pollution is brought
* The operation is easy and convenient
* X, Y, Z axes have digital display devices
* Z axis has the function of setting depth
Main performance indexes and technical requirements.
2. Basic configuration:
A. Three axes have digital displays; It is consistent with operation
B. Z axis uses linear guide rail (driven by the step motor with 5 phases 10 beats), it is driven by DC motor
C. The rotary head is of straight gear transmission, its volume is small
D. The super large scales integrate circuits make the impulse power supply reliable
E. The multiple power supply of high and low voltage and high-power VMOS field -effect transistor
F. The double Z is moved by motor
G. The operate-control box is adjustable, it is fully considered to convenience of operator
H. It contains the operation and control mode of DD703
I. The specialty plunger pump, thread gap filter
J. The marble working table
K. The stainless fixtures
L. The accessories and consumable parts
M. The processing polarity can be changed
N. The processing stability is adjustable
Item |
Unit |
DB703 |
Worktable size (L×W) |
mm |
436×316 |
Table travel(X×Y) |
mm |
300×400 |
Z axis travel |
mm |
270+300 |
Max. drilling depth |
mm |
0~300 |
Max. drilling speed |
mm/min |
60 |
Max. working current |
A |
30 |
Electrode diameter |
mm |
0.3~3.0 |
Load of table |
Kg |
200 |
Working solution |
|
water/saponification |
Working reservoir capacity |
L |
25 |
Power supply |
|
380V/50Hz |
Max Power consumption |
KVA |
3.5 |
Machine dimensions (L×W×H) |
mm |
1060×750×1700 |
Package dimensions (L×W×H) |
|
1300×1040×2030 |
Machine weight |
Kg |
600 |
Controller type |
|
Automatic Z axis |
Digital display |
|
X, Y, Z axis |
Function of setting depth |
|
have |
FEATURES:
