Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Small Hole Drilling EDM Super 500 Model

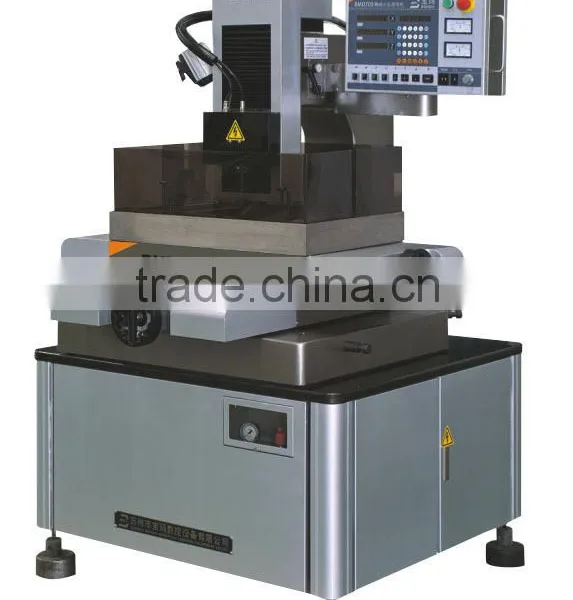

Small Hole Drilling EDM Super 500 Model
US$ 1,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Drilling Speed:
60 mm2/min
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Hole Drilling EDMUS$ 1.333 - 383,838MOQ: 1 Set -
Small Hole Drilling EDMUS$ 1.333 - 8,697,597MOQ: 1 Set
-
Edm Small Hole Edm Drilling Machine ,safe Cover,high PrecisionUS$ 0.8888 - 99,999MOQ: 1 Set
-
Deep Hole Drilling Machine EDM BMD703 Low Price From Jiangsu ExcellentUS$ 0.8888 - 99,999MOQ: 1 Set
-
Edm Fast Drilling Small Hole Drilling EDM Best PriceUS$ 1.333 - 383,838MOQ: 1 Set
Condition
New
CNC or Not
CNC
Drilling Speed
60 mm2/min
Place of Origin
Jiangsu, China
Brand Name
Baoma
Model Number
BMD703-500
Voltage
220-415V / 50HZ
Power(W)
3.5 KVA
Dimension(L*W*H)
1236 x 1025 x 1934 mm
Weight
700Kg
Certification
CE, ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Can drill deep hole with diameters 0.2mm ~ 3mm (the depth-diameter ratio is 300: 1)The speed of drilling hole is 30~60mm/min
| Specification | BMD703-500 | Universal Parameter | ||
|---|---|---|---|---|
| Work table Size | 590x 410 mm | Drilling Depth |
0 - 300 mm | |
| Work Table Travel | 500x 400 mm | Z axis Travel | 300+(320) mm | |
| Load of Table | 300 Kg | Max. Drilling Speed | 60 mm2/min | |
| Electrode Diameter | 0.2-3.0 mm | Max. Working Current | 30 A | |
| Water Tank Capacity | 30 L | Max. Power comsumption | 3.5 KVA | |
| Machine Weight | 900 Kg | Voltage | 220-415V / 50HZ | |
| Machine Dimensions | 1379 x 1429 x 1886mm | Working Solution | Water/Saponification | |
| Packing Dimensions | 1530 x 1640 x 2100 mm | Function of setting depth | Yes | |
| Control Type | ZNC: Z axis NC Control | Z axis Travel Control | Electric Motor | |
