2015 Best-selling Product Active Carbon Air Filter

2015 Best-selling Product Active Carbon Air Filter thumbnail-1
2015 Best-selling Product Active Carbon Air Filter photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ELES
Model Number:
ES8
Contact Supplier Request Quote Chat Now
Shenzhen Eles Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name ELES
Model Number ES8

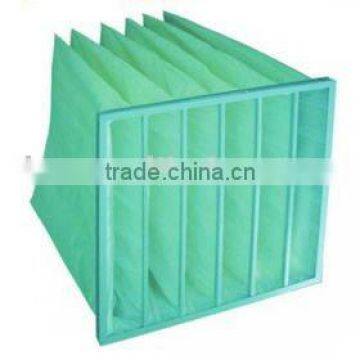

Bag filter

2009-6-6 17:29:53

Intermediate type long-term static bag-type filter (bag filter in effect)

Bag-type filters by high-performance electrostatic filter made. First of all, as opposed to the electrostatic filter are superior to the traditional filter of the filtration efficiency, particularly for the traditional filter can not be effectively filtered by the sub-micron (> 1u) dust, and its particularly good filtration efficiency; Secondly, as a result of this filter with special fiber structure, its high permeability and high dust loading, when the high-performance filters and other common use in the filter system, not only for the higher cost of high efficiency filter has a good protective effect, but also save the replacement of The number of high-performance filters, to reduce costs; Third, its high permeability characteristics can minimize the overall energy loss.

This bag-type filters are used for each bag edge fusion ultrasound be a good combination of air tightness and strength, will not produce high pressure gas leakage or rupture, and the impact of filtration efficiency. The first six months non-woven bag are separated by ultrasonic bonding chip average width of cloth in the bag, every piece apart from the wind with all things, its main role is to control air pressure bag for less than love the excessive expansion of mutual shelter, and reduce the effective filter area and efficiency.

A whole bag-type filter material to aluminum and zinc for its structure of four-box frame, so that product has the appearance of stability and solid patterns, each bag of metal between the security guards are a regular, but this care can be bag to prevent high wind speed, the force due to wind shear and the rupture, so that products with high efficiency and stability of the filter

Model and its parameters

NO.

L*W*H(mm)



m3/h

Pa

Efficiency
%

class
EN779

Material

Frame

Media



595×595×600

6

3200

≤120

≥90-95
(Colorimetry)

F8

Aluminum Alloy /
Galvanized plate



F8-class
Non-woven
Polypropylene
Fiber

595×595×600

5

2700

592×592×600

6

3200

592×592×600

5

2700

595×595×500

6

3000

592×490×500

5

2400

495×295×600

6

1600

592×287×500

3

1300





Design features:

1 ~ 5um trap dust particles and various suspended solids
Allow a large quantity of dust
Large amount of wind
Resistance of small
General Applications:

Efficient pre-filter of the filter
Air-conditioning system of the intermediate filter
Electronics, precision instruments, machinery, metallurgy, chemical industry, textile, medicine, food and other industries of air purification filters
