Specifications
60KW frequency converter AC60-316001.Reliability
2.Interface-friendly
3.High Stability

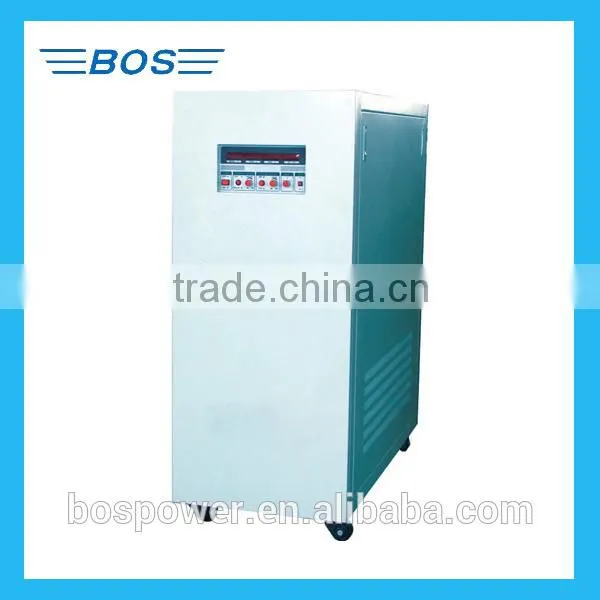

60KW frequency converter AC60-31600
1.Have a high voltage, over current and short-circuit and overheat warning device
2.16 bit microprocessors, the intelligent control and easy operation
3.Low distortion interference,input and output are completely isolated , safe and reliable
4.Unique transient waveforms value control and low distortion, high precision control
5.Dynamic quick,when load changgees in 0 - 100% ,stationary response time <0.1S
6.Provide world standard grid voltage,frequency,simulation testing all kinds of
electrical products
7.With no radiation,small harmonic ingredients and special treatment,no distracting
8.The efficient up to above 85% wide applicable load,can be perceptual capacitive resistive load
9.Import original german siemens IGBT high frequency inverter and deck mechanism
10. Output voltage:low-grade:0-150 V,high grade: 0-300V adjustable continuously
11.A machine has more function,surface and source are one:with the nearest 0.5 level
output voltage, current and frequency and power the power factor watch.
Model | 31450 | 31600 | 311000 | |
Capacity | 45KVA | 60KVA | 100KVA | |
Outputlimit currency | L:375A | L:500A | L:840A | |
| H:188A | H:250A | H:420A | |
Circuit model | IGBT/SPWM pulse width adjustment mode | |||
Output frequency | 50Hz/60Hz 45-65Hz | |||
Load stability | ≤±1% | |||
frequency stability | fixed-frequency≤±0.01%,frequency modulation≤±0.1% | |||
Input voltage | 380V±10% | |||
Phase | three phase four wire | |||
Wave distortion | ≤3% | |||
Output voltage | low-grade:0-150V continuous-tuning; high-grade:0 - 300 V continuous-tuning | |||
Reaction time | ≤2mS | |||
DPI ( dots per inch ) | frequency meter | 0.1Hz | ||
| Voltage meter | 0.1V | ||
| Current meter | 0. 1A | ||
| Power meter | 0.1W | ||
Ammeter display | Frequency, voltage, current, power or PF 4 number display | |||
Protection function | over voltage, over current, over temperature, over load, short circuit, and automatic alarm | |||
Insulation reactance | 500Vdc 20MΩ | |||
Pressure endurance insulation | 1500Vac/5mA/1min | |||
Cooling model | Compulsive fan cooling | |||
Working temperature | -10°C-45°C | |||
Relative humidity | 0-90%(No condensing) | |||
Altitude | 1500meters | |||
Dimension (W×L×H) | 1160×520×1370mm | |||
