Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Constant Voltage and Constant Frequency Power Supply AC50-11100

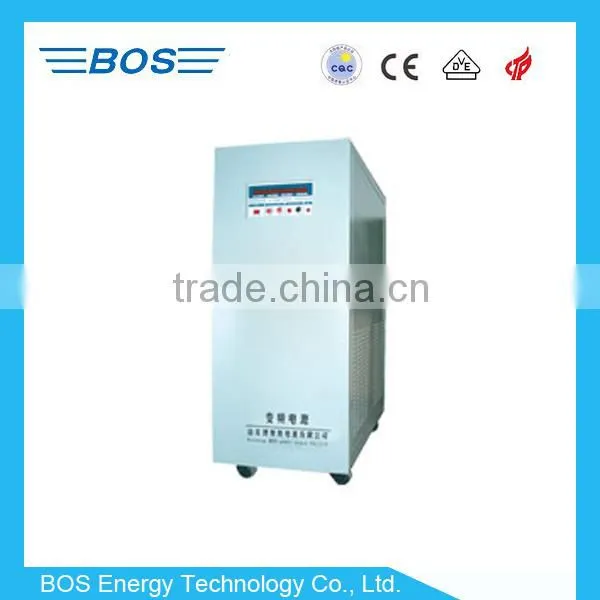

Constant Voltage and Constant Frequency Power Supply AC50-11100

US$ 1,050 - 1,570 MOQ: 10 Sets

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

BOS

Model Number:

AC50-11100

Contact Supplier Request Quote Chat Now

Shandong BOS Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name BOS

Model Number AC50-11100

Input Voltage AC130~280V

Output Voltage AC220V±1%

Output Power 10KVA

Output Frequency 50Hz±0.01%

Output Current 42A

Specifications

constant voltage and constant frequency power supply 10KW with low wave distortion and wide applicable load ,high efficiency

10kW frequency and voltage stabilizer converter/inverter AC50-11100

The power adopts advantaged SPWM IGBT high-frequency inverter technology, internal structure is AC-DC-AC, thoroughly eliminate the network interference, output waveforms are pure. It has the following features: wide range of constant-voltage and constant-frequency, high precision, light weight, small capacity, output transformer with apartheid, with the good with a high quality uninterrupted power supply system.

1.Input voltage: 130~280V
2.Input frequency: 30~70Hz
3.Output voltage: 220V/380V±0.5%
4.Output frequency:50Hz±0.01%
5.Wave distortion: <1%
6.Isolation transformer output, safe and credible
7.Auto-protection and alarm for output overvoltage, over current, overheat, short circuit
8.Efficiency reach above 90% ,widely applicable load,for nasty, capacitive resistance,any combination of the load

Model

11005

11010

11030

11050

11100

31150

31200

313000

31450

311000

Capacity(VA)

500

10K

15K

20K

30K

45K

100K

Output currency

2.1

4.2

125

188

420

Circuit model

IGBT/SPWM pulse width adjustment mode

Input

Voltage

130V-280V

265V-495V

Frequency

30-70Hz

Phase

single phase

three phase four wire

AC output voltage

220V±1%

Output frequency

50Hz/60Hz

frequency stability

≤±0.01%

Voltage stability

≤1%

Wave distortion

≤2%

Reaction time

≤2mS

DPI ( dots

per inch )

frequency meter

0.1Hz

Voltage meter

0.1V

Current meter

0. 1A

Power meter

0.1W

Efficiency

efficiency more than 90% ,be suit for wide-load, can be for the inductive, capacitive, resistive, and any mixed loads.

Protection function

The importation of non-fuse switch, without output fuse switch, the electronic circuit to detect over-voltage Express .Over voltage, over current, over temperature, over load, short circuit, and automatic alarm.

Insulation reactance

500Vdc 20MΩ

Pressure endurance insulation

1500Vac/5mA/1min

Cooling model

Compulsive fan cooling

Working temperature

-10℃-45℃

Relative humidity

0-90%(No condensing)

Altitude

1500meters

Dimension (W×L×H)mm

410*440*135

460*440*220

560*350*600

660*400*700

830*450*1100

1160*520*

1370

Best of system (B.O.S) is the global company that specializes in designing and manufacturing the power supply, which products of high reliability result from the most advanced technique of the aerospace and the military. We always take the technology of inverter as the core for many years,
the products include Conversion Power Supply (widely used electric power, communication, Locomotive), Frequency Conversion Power Supply, Aviation Military Special-purpose Power
Supply (400Hz frequency conversion, 28.5 Direct-current power), Uninterruptible Power Supply (UPS), Emergency Power Supply (EPS) and new energy generation green power supply (solar energy and wind power system) etc.
