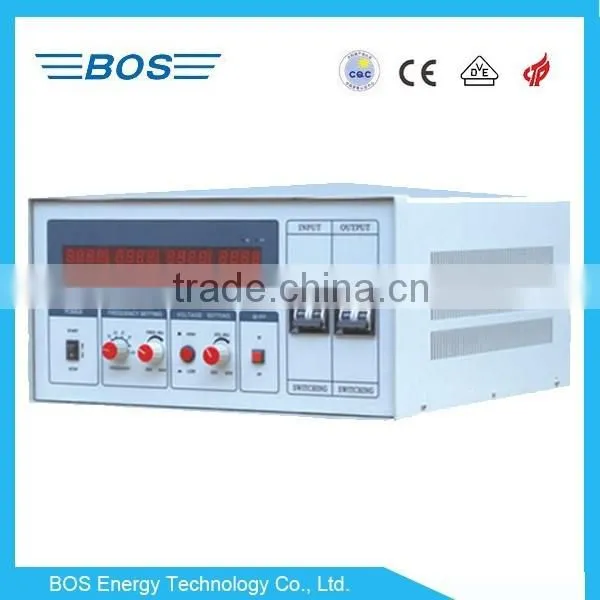

1KVA SFC AC60-11010

1KVA SFC AC60-11010 thumbnail-1
1KVA SFC AC60-11010 photo-1
US$ 240 - 360 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BOS
Model Number:
AC60-11010
Contact Supplier Request Quote Chat Now
Shandong BOS Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name BOS
Model Number AC60-11010
Output Power Other, 1 - 200KW, 500 - 1000W
Output Type Other, Triple, Single
Size 410*440*135mm
Weight 50kg
Input Voltage 220V±10%, 220V±10%
Output Voltage 0-300V
Type Other, AC~AC
Output Frequency 50Hz/60Hz, 50Hz/60Hz/45-65Hz
Output Current 3.3A, 2.1A-4.2A

  High Quality Frequency Converter/Inverter AC60-11010



 1KVA SFC AC60-11010



1.Have a high voltage, over current and short-circuit and overheat warning device
2.16 bit microprocessors, the intelligent control and easy operation
3.Low distortion interference,input and output are completely isolated , safe and reliable
4.Unique transient waveforms value control and low distortion, high precision control
5.Dynamic quick,when load changgees in 0 - 100% ,stationary response time <0.1S
6.Provide world standard grid voltage,frequency,simulation testing all kinds of

  electrical products
7.With no radiation,small harmonic ingredients and special treatment,no distracting
8.The efficient up to above 85% wide applicable load,can be perceptual capacitive resistive load
9.Import original german siemens IGBT high frequency inverter and deck mechanism
10. Output voltage:low-grade:0-150 V,high grade: 0-300V adjustable continuously
11.A machine has more function,surface and source are one:with the nearest 0.5 level

    output voltage, current and frequency and power the power factor watch.



1KVA SFC AC60-11010



Model

11005

11010

11030

11050

31100

31150

31200

313000

31450

311000

Capacity(VA)

500

1K

3K

5K

10K

15K

20K

30K

45K

100K

Output limit currency

LOW(A)

4.2

8.4

24

42

84

126

168

250

375

840



HIGH(A)

2.1

4.2

12

21

42

63

84

125

188

420

Circuit model

IGBT/SPWM pulse width adjustment mode

Output frequency

50Hz/60Hz  45-65Hz

Load stability

≤±1%

frequency stability

fixed-frequency≤±0.01%,frequency modulation≤±0.1%

Input voltage

220V±10%

380V±10%

Phase

single phase

three phase four wire

Wave distortion

≤3%

Output voltage

low-grade:0-150V continuous-tuning; high-grade:0 - 300 V continuous-tuning

Reaction time

≤2mS

DPI ( dots

per inch )

frequency meter

0.1Hz



Voltage meter

0.1V



Current meter

0. 1A



Power meter

0.1W

Ammeter display

Frequency, voltage, current, power or PF 4 number display

Protection function

over voltage, over current, over temperature, over load,

 short circuit, and automatic alarm

Insulation reactance

500Vdc 20MΩ

Pressure endurance insulation

1500Vac/5mA/1min

Cooling model

Compulsive fan cooling

Working temperature

-10℃-45℃

Relative humidity

0-90%(No condensing)

Altitude

1500meters



1KVA SFC AC60-11010



Best of system (B.O.S) is the global company that specializes in designing and manufacturing the power supply, which products of high reliability result from the most advanced technique of the aerospace and the military. We always take the technology of inverter as the core for many years,the products include Conversion Power Supply (widely used electric power, communication, Locomotive), Frequency Conversion Power Supply, Aviation Military Special-purpose Power Supply (400Hz frequency conversion, 28.5 Direct-current power), Uninterruptible Power Supply (UPS), Emergency Power Supply (EPS) and new energy generation green power supply (solar energy and wind power system) etc.
