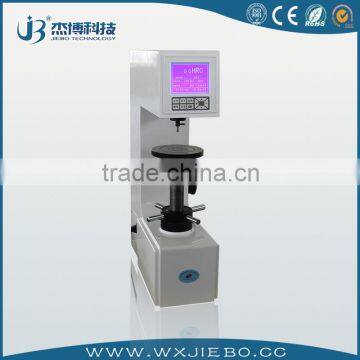

Digital Display Rockwell Hardness Tester For Metal
Main Features:
Model thr-150D with plan the big screen LCD monitor. Operation panel use the menu type structure, the main functions are: Rockwell hardness of the scale choice, the choice of plastic los's ruler, various guide the conversion between hardness, hardness testing results automatically save and RS-232 super terminal Settings, hardness value error can be modified through software input, hardness value more accurately meet test requirement.
Standard Accessories:
Item |
Quantity |
Item |
Quantity |
Diamond Rockwell Indenter |
1 |
Diameter 1.5875mm Ball Indenter |
1 |
Hardness block (HRC High Low 2, HRB 1) |
3 |
Large, Medium, “V” shaped Testing Table |
Each 1 |
Weights(A, B, C) |
Each 1 |
Plastic Dustproof cover |
1 |
Manual |
1 |
Product certificate |
1 |
Model |
THR-150D |
Conversion Scale |
Superficial Rockwell, Brinell, Vickers |
Indication of Hardness Value |
Large LCD screen display |
Max Height of Specimen |
175MM |
Data output |
Inside Printer, RS-232 |
Duration time |
2-60s |
Carried Standard |
GB/T230.2 Chinese Standard, JJG112 Inspection Rule |
Distance of Indenter to outer wall |
160m |
Preliminary Testing force |
10kgf(98.07N) |
Testing force |
60kgf(588N) 100kgf(980N) 150kgf(1471N) |
Rockwell Scale |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK |
Hardness measuring range |
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
Power supply |
AC220V+5%,50-60Hz |
Overall Dimension(mm) |
520*240*720 |
Net weight |
About 65Kg |
Digital Display Rockwell Hardness Tester For Metal
