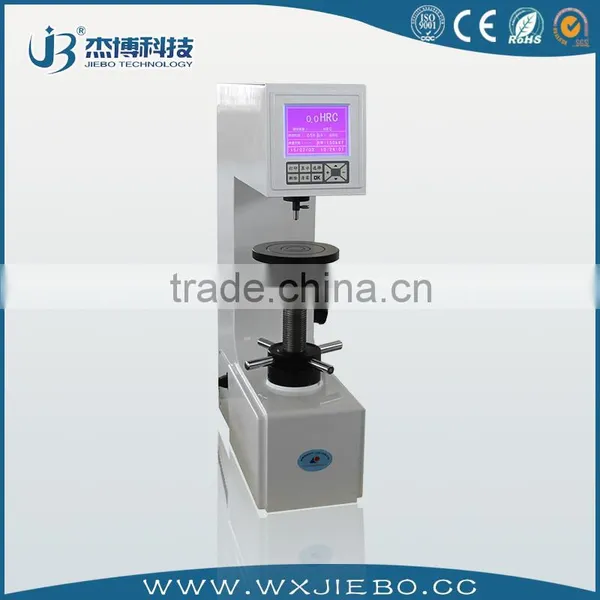

Best Price THR-150D Digital Display Metal Rockwell Hardness Tester
Main Features:
Model thr-150D with plan the big screen LCD monitor. Operation panel use the menu type structure, the main functions are: Rockwell hardness of the scale choice, the choice of plastic los's ruler, various guide the conversion between hardness, hardness testing results automatically save and RS-232 super terminal Settings, hardness value error can be modified through software input, hardness value more accurately meet test requirement.
Standard Accessories:
Item | Quantity | Item | Quantity |
Diamond Rockwell Indenter | 1 | Diameter 1.5875mm Ball Indenter | 1 |
Hardness block (HRC High Low 2, HRB 1) | 3 | Large, Medium, “V” shaped Testing Table | Each 1 |
Weights(A, B, C) | Each 1 | Plastic Dustproof cover | 1 |
Manual | 1 | Product certificate | 1 |
Model | THR-150D |
Conversion Scale | Superficial Rockwell, Brinell, Vickers |
Indication of Hardness Value | Large LCD screen display |
Max Height of Specimen | 175MM |
Data output | Inside Printer, RS-232 |
Duration time | 2-60s |
Carried Standard | GB/T230.2 Chinese Standard, JJG112 Inspection Rule |
Distance of Indenter to outer wall | 160m |
Preliminary Testing force | 10kgf(98.07N) |
Testing force | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
Rockwell Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK |
Hardness measuring range | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
Power supply | AC220V+5%,50-60Hz |
Overall Dimension(mm) | 520*240*720 |
Net weight | About 65Kg |
Best Price THR-150D Digital Display Metal Rockwell Hardness Tester
