Model | YH-104/8 | YH-156/10 | YH-158/12 | YH-1510/14 | YH-2012/18 |
Print Color/Station | 4-6/8 | 4-8/10 | 6-10/12 | 6-12/14 | 6-14/18 |
Maz. Image Area | 500×700/mm | 500×700/mm | 500×700/mm | 500×700/mm | 500×700/mm |
Pallet Size | 600×800/mm | 600×800/mm | 600×800/mm | 600×800/mm | 600×800/mm |
Frame Size | 700×1000/mm | 700×1000/mm | 700×1000/mm | 700×1000/mm | 700×1000/mm |
Maz.Air Consumption | 8P24.71L/100mm (piston move) | 8P24.71L/100mm (piston move) | 8P30.44L/100mm (piston move) | 8P30.44L/100mm (piston move) | 8P31.51L/100mm (piston move) |
Max.Output | 900pcs/h | 900pcs/h | 900pcs/h | 900pcs/h | 900pcs/h |
Power | 2.9Kw | 4.4Kw | 4.4Kw | 4.4Kw | 5.5Kw |
Each Dryer Power | 13.5Kw | 13.5Kw | 13.5Kw | 13.5Kw | 13.5Kw |
Size | 4800×1650/mm | 5500×1850/mm | 5500×1850/mm | 6000×1850/mm | 6400×2500/mm |
Weight | 2300Kg | 3000Kg | 3300Kg | 3600Kg | 4300Kg |
Features:
1. It is combined the advanced technology from home and abraod, high speed and nice-looking appearance.
2. Automatic screen positioning system with precision turnables, placidly steady running, excellent localizer.
3. Every squeegee and flood-bar can be operated separately by independent chopper, speed adjusted by frequency,slight air pressure.
4. Yaskawa servo motor drive system makes its running smooth,precies and quick rotation.

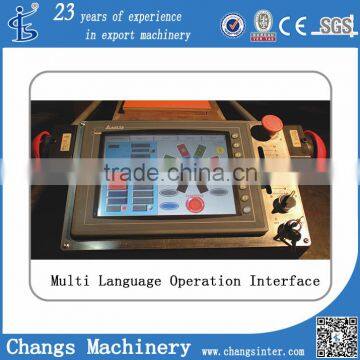

5. Center computer controller system with multiple and interchange languages.
6. Excellent Squeegee/flood-bar working unit to ensure the screen frames' easy &fast change-over and freely ink load, colors registration is visible.

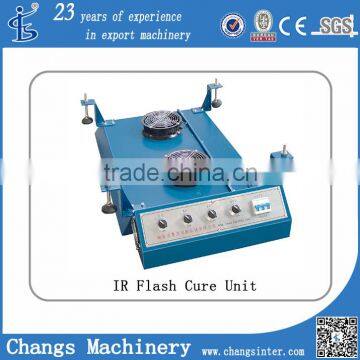

7. Three curing zones in each flash cure unit can be set independently.

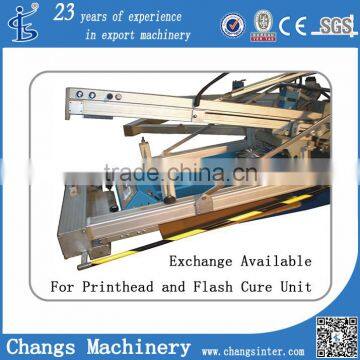

8. The flash cure unit can be installed in the print frame as a curing unit and interchange with print-head if necessary.
9. Double-station indexing capability increases production output.
10. Bounce switch is for skip over empty pallet or badness print to less waste.
11. High-density printing effect capability, pnumatic and tool-free pallet locator speeds up pallet changover for optional.
12. Special printing size and flatbed size can be made according to customer's requirement.
| Name | Brand | Name | Brand |
| Smatch Switch | MOELLER | Mini Reply 3P | SCHNEIDER |
| AC Contactor | SCHNEIDER | Mini Reply 2P | SCHNEIDER |
| Middle Relay | OMRON | Mini Reply 1P | SCHNEIDER |
| Proxity Switch | OMRON | Touch Screen | DELTA |
| Emergency Switch | SCHNEIDER | Servo Motor | YASKAWA |
| Switch With Lock | SCHNEIDER | Transducer | DELTA |
| Spin Switch | SCHNEIDER | Proxity Switch | OMRON |
| Sensative Switch | OMRON | Spin Switch | SCHNEIDER |
| Air Manometer | SMC | |
Q1:We are interested in the screen printing machine,Could you quote the latest price to us?
A1: In order to recommend the suitable machine for you ,please provide following information before we quote price:
1.How many colors do you want to print ?
2.What's the max printing size? (Such as 500x700mm or biger or smaller)
3.What's the capacity per hour do you request? (Such as 900pcs/h)
Q2:What's the MOQ, Delivery time and payment terms?
A2: 1. MOQ: 1 set
2. Delivery time: 20 workdays after receiving T/T 30% payment deposit
3. Payment Term: T/T 30% as deposit, T/T 70% before shipment or L/C at sight
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel

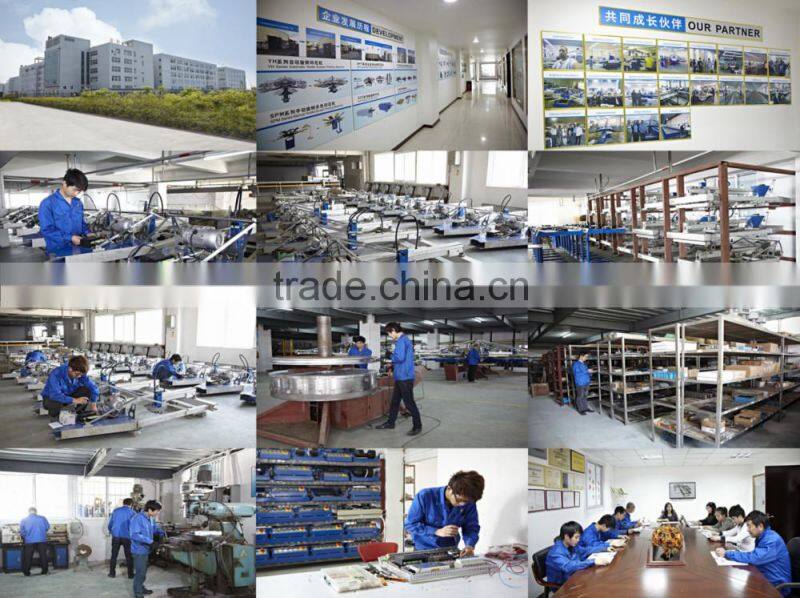

1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
