Specifications
White ABS Thermoformed plastic water tank .1.Size:customized
2.Material:Hips,abs,pp...
3.Vacuum forming process

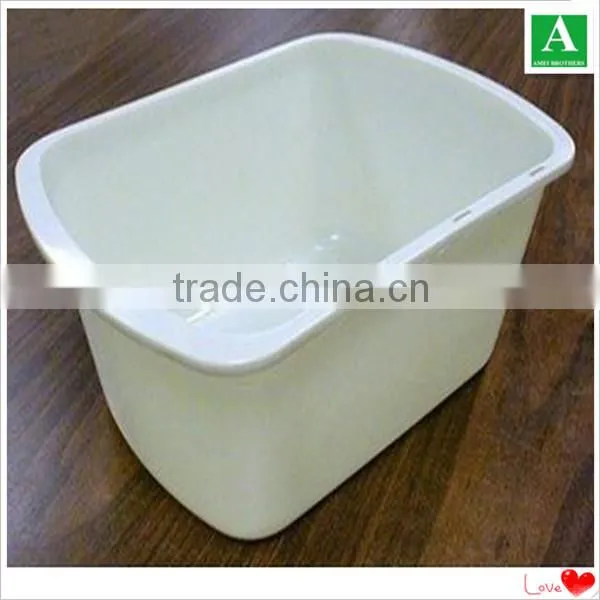

White ABS Thermoformed plastic water tank
OEM &ODM are all acceptable
high quality,best price and service,
prompt delivery time
|
Name
|
White ABS Thermoformed plastic water tank |
|
Material
|
ABS,PVC,PP,PMMA,PET-G,PS,etc |
|
Size
|
Customized |
|
Color
|
As you like |
|
processing
|
vacuum forming +CNC cuting +scraping... |
|
Brand name
|
Amei |
|
Mould number
|
PE-022601 |
|
Packing
|
we can meet the customer's requirements |
| Description |
White ABS Thermoformed plastic water tank
|
|
Design
|
OEM/ODM |
|
Business Type
|
Manufacture |
|
Certificate
|
ISO9001:2000 |
|
Sample
|
7-10 days for making the mould and finished the sample |
|
lead time
|
15-30 days for finishing the goods |
|
main markets
|
USA, EUROPE ,UK ,AUSTRALIA,GERMANY..... |
|
Establish in
|
2001 |
|
Employees
|
50-100 workers |
|
Equipments
|
8 sets of vacuum thermoforming machines+6sets of CNC machines+other machines.
|
Vacuum forming step:
Step1. Make the plastic sheet be clamped into position which above the
vacuum forming mold inside the vacuum forming machine.
Step 2
The sheet is then heated by two heaters one above the sheet and one below the sheet.
This method is called sandwich heating and gives a more consistent temperature
throughout the sheet avoiding any cold areas which in turn gives you a sharper and
more defined vacuum forming .
Step 3
Once the sheet is heated to the correct temperature it will become pliable, the
vacuum forming mold is raised and a vacuum is applied which pulls the now
malleable plastic sheet down onto the vacuum forming mold.
Step 4
The vacuum is kept on while the plastic is cooled using large fans and water spray so
that it retains the shape off the vacuum forming mold.
Step 5
Once the plastic is cooled the vacuum is released and the plastic part removed by
gently applying a short blast of air between the vacuum forming mold and the plastic
component.
Step 6
Pick the plastic sheet which is finished vacuum forming out from the vacuum forming
machine.
Step 7
Cut the edge by CNC machine or hand.
Step 8
Cleanning and packing.
