Specifications
5 gallon mineral water filling production line1.Automatic PLC control
2.3 &5 Gallon bottle
3.CE & ISO
4.SUS304 Material

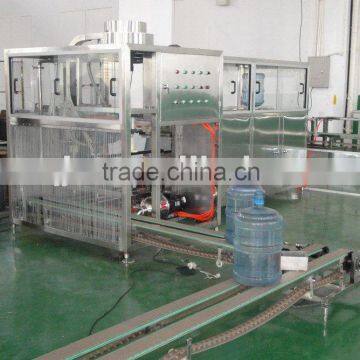

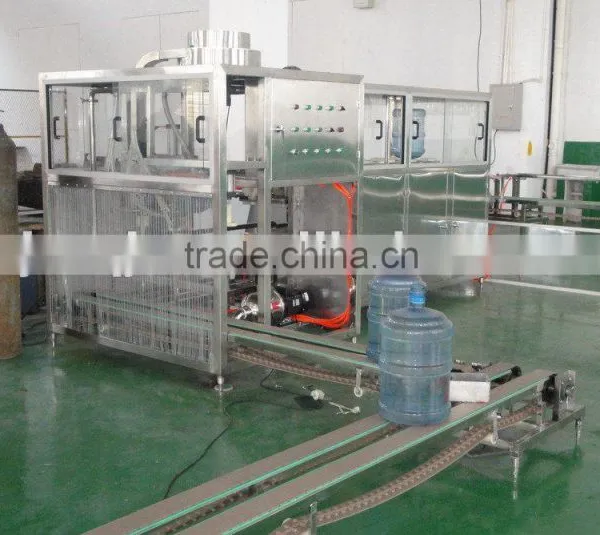

5 gallon mineral water filling production line 1.QGF series barreled production line consists of washing, filling and capping.
*It is suitable for filling all kinds of round and square barrels with drinking water.
*Those types(barrels/hour) are:100 type,150 type,200 type,300 type,450 type,600 type,900 type,1200 type.
*The whole line is made of superior stainless steel, anti-corrosive and easy to clean.
*The bottle washer can carry out multiple injections of washing to sterilize the bottles.
*This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy.
Modle | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
Filling Heads | 1 | 3 | 4 | 8 | 8 | 8 |
Volume (L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel Size(mm) | Φ270*490 | Φ270*490 | Φ270*490 | Φ270*490 | Φ270*490 | Φ270*490 |
Production Capacity(b/n) | 100 | 300 | 450 | 600 | 900 | 1200 |
Gas Pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Gas Consumption(m³/ min) | 0.37 | 0.6 | 0.9 | 1.2 | 1.8 | 2.4 |
Motor power | 1.38 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
Rated Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
Weight (kg) | 680 | 1500 | 2100 | 3000 | 4000 | 5500 |
quality promise ;
*Fixed Equipment for Quality Control
*Professional team for Quality Control
*Randomly checking before get in warehouse
